DESCRIPTION
Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 490mmColors: Gloss Racing Silver / Dirty White

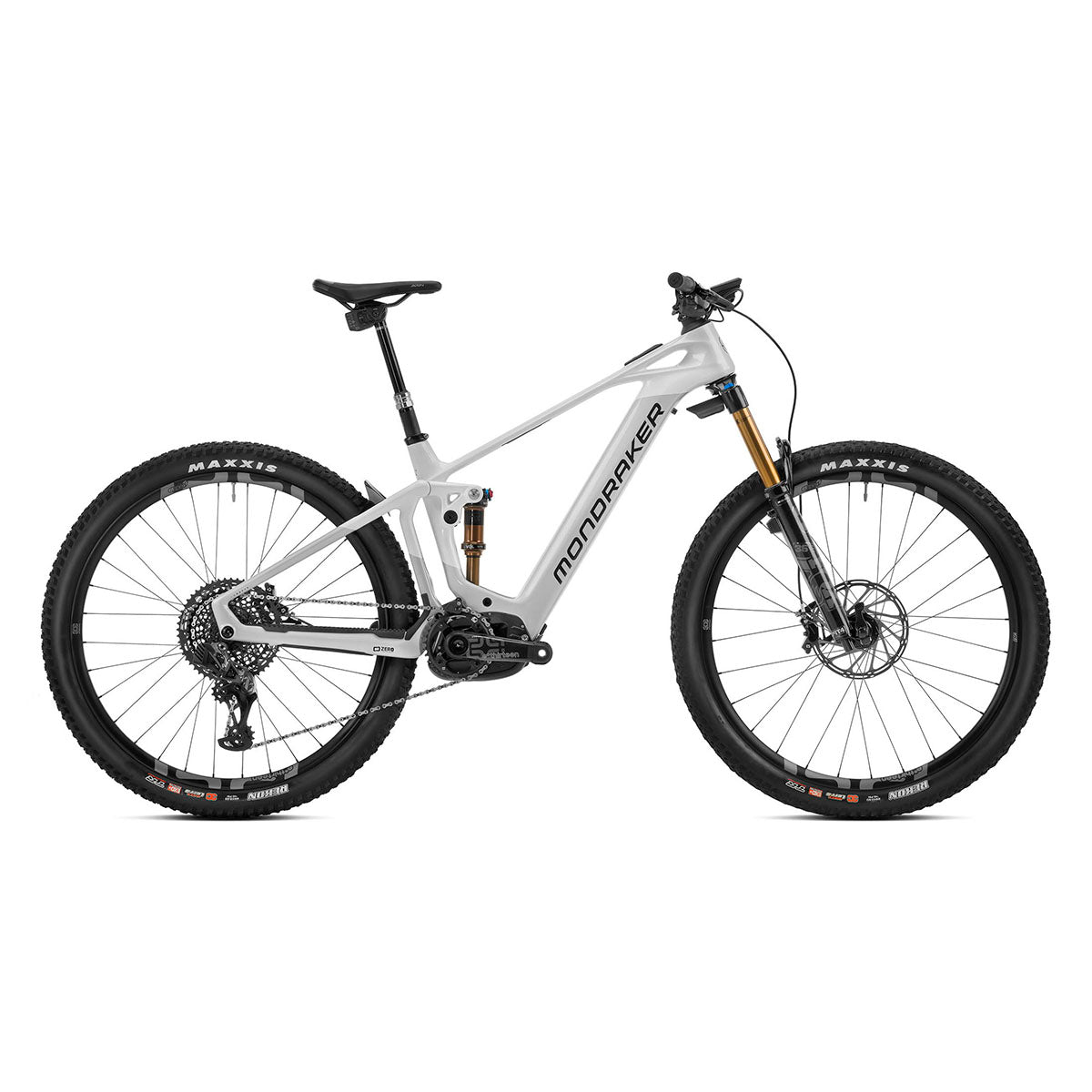

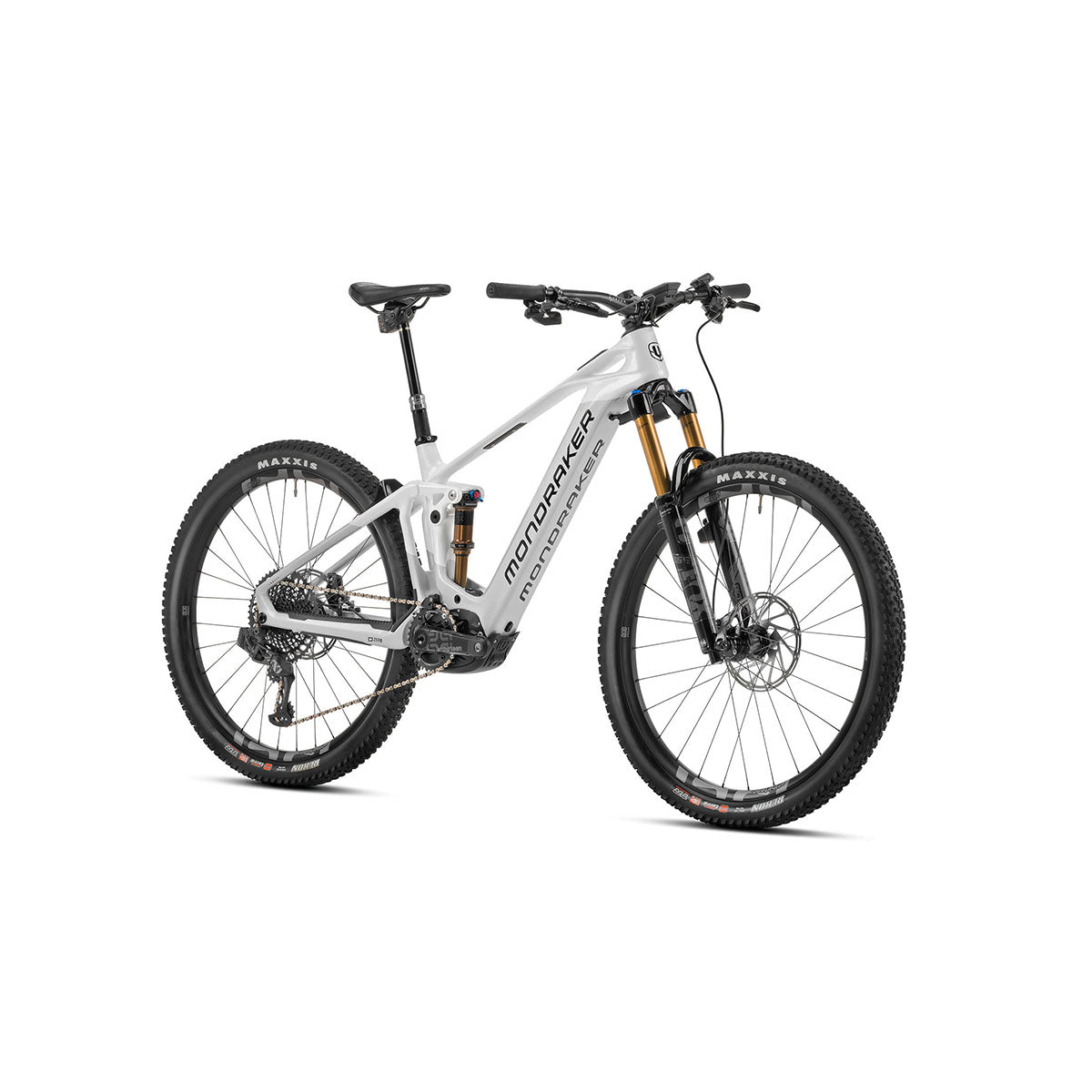

Get ready to experience the thrill with the Crafty Carbon RR SL e-MTB bike designed for enduro, trail and all-mountain riding! The high-end bike boasts updated suspension kinematics and amazing pedaling efficiency. eBike optimized zero suspension uses large bearings on a one-piece monoblock link for extreme bump absorption for plusher rides.
Unleash the power of the upgraded Bosch Performance Line CX engine, backed by an integrated 750 Wh Power Tube battery, both seamlessly concealed inside a durable frame to handle the rigors of mountain bike riding. Upgrades also include a new display unit and handlebar mounted control module. Bosch smart eBike system consisting of eBike Flow app, control unit, display, batter, and drive unit offers a customized bike experience for users.
Zero Suspension: Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
Stealth Alloy Frame: The compact and lighter engine design and stealth alloy frame help with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.
Forward Geometry: High-speed riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
FRAME
Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. MIND System (EU only)
SIZES
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
REAR SHOCK
Fox Float DPS Factory Kashima evol LV, 205x65mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
SHOCK SETTINGS
Medium compression, Medium rebound, 0.4 volume spacer
FORK
Fox 36 29 Float GRIP2 Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: high and low-speed compression, high and low-speed rebound, air preload
HEADSET
Acros custom for 1-1/2” head tube, angular contact bearings 40x52x7, Internal cable routing
STEM
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
HANDLEBAR
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GRIPS
Onoff Desert, 1lock-on, 135mm
SEATPOST
RockShox Reverb Stealth AXS, diameter 31.6mm, S size: 390x125mm, M size: 440x150mm, L/XL size: 440x170mm
SADDLE
FIZIK Terra Aidon X1 145mm
FRONT BRAKE
Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
REAR BRAKE
Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
BRAKE LEVER
Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
RIMS
e*thirteen Race Carbon Enduro IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes
SPOKES
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
FRONT HUB
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
REAR HUB
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
FRONT TIRE
Maxxis Rekon 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
REAR TIRE
Maxxis Rekon 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
CRANKSET
E.13 TRS Race carbon ebike, 165mm
RINGS
Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD
BOTTOM BRACKET
-
PEDALS
-
CHAIN
Sram GX Eagle, 12s, Powerlock
FRONT DERAILLEUR
-
REAR DERAILLEUR
Sram XX1 Eagle AXS, Type 2.1 roller bearing clutch, cage lock, long carbon cage, 1x12s, X-actuation 1:1 with battery cover
SHIFT LEVERS
Sram Eagle AXS Rocker paddle, 12s
CASSETTE
Sram XG-1295, 10-52T, 12s
MOTOR
Bosch Performance Line CX Cruise (25Km/h) Smart System
BATTERY
Bosch Powertube 750Wh
DISPLAY
Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller
DERAILLEUR HANGER
Mondraker M068
OTHERS
-
WEIGHT
22.7kg
GEOMETRY
MEASUREMENTS / GEOMETRY(Click on image to expand)
Size
S
M
L
XL
A
Seat Tube Length
380 mm
420 mm
450 mm
480 mm
B
Top Tube Length
605 mm
625 mm
650 mm
670 mm
C
Bottom Bracket Drop
-25 mm
-25 mm
-25 mm
-25 mm
D
Bottom Bracket Height
350 mm
350 mm
350 mm
350 mm
E
Chainstay Length
455 mm
455 mm
455 mm
455 mm
F
Seat Tube Angle, Actual
73.5°
73.5°
73.5°
73. 5°
G
Seat Tube Angle, Effective
76°
76°
76°
76°
H
Head Tube Angle
65.5°
65.5°
65.5°
65.5°
I
Fork Offset
44 mm
44 mm
44 mm
44 mm
J
Wheelbase
1225 mm
1245 mm
1265 mm
1285 mm
K
Head Tube Length
110 mm
110 mm
130 mm
130 mm
L
Reach
450 mm
470 mm
490 mm
510 mm
M
Stack
622 mm
622 mm
640 mm
640 mm
RESOURCES
Spare PartsSuspension Setup
SIZE GUIDE
Bike Size Guide (Click on image to zoom in)
NOTE: NOTE: For inquiries and special deals, please call us at 805-850-3200.
** Optional External Battery to extend capacity to 990 Wh (Sold separately). Click for Easy Setup Manual.

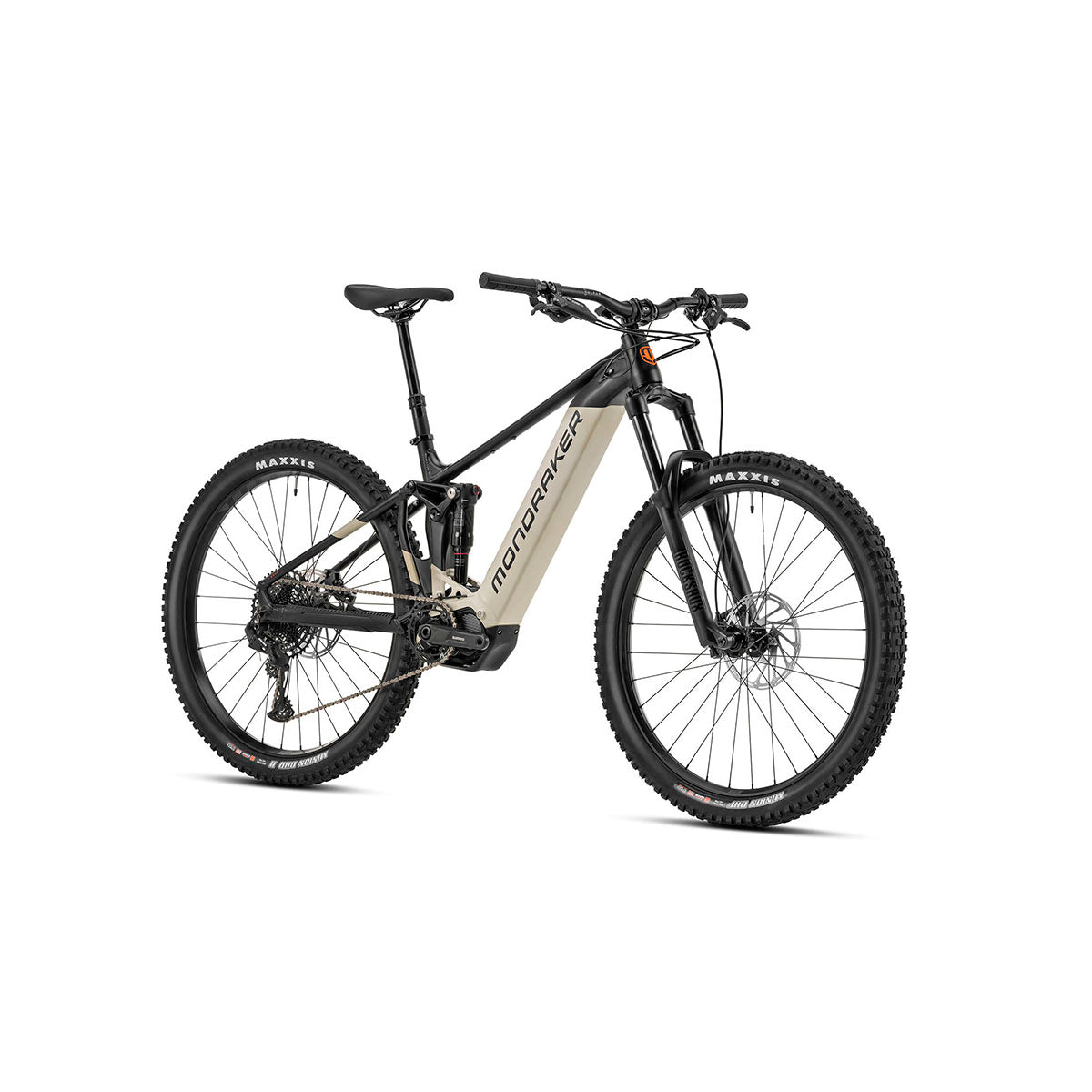

DESCRIPTION
Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Get ready to experience the thrill with the Dusk RR e-MTB bike designed for trail and all-mountain riding! The top-end emountain bike with modern geometry is a beauty. eBike optimized zero suspension uses large bearings on a one-piece monoblock link for extreme bump absorption for plusher rides.
Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking and suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
Unleash the power of the Shimano Steps EP800 motor, backed by an integrated 630 Wh battery, both seamlessly concealed inside a durable frame to handle the rigors of mountain bike riding. An optional Simplo 360Wh battery can be attached to the top portion of the downtube for easy extension to 990Wh range. External Battery should be purchased separately.
The compact and lighter engine design and stealth alloy frame help with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.
High-speed riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains.
HHG Internal Cable Routing helps with a minimalistic, clean design. One-piece upper linkage offers better lateral and torsional stiffness to reduce lateral stress on the shock action. Dusk RR design features oversized axles, boost rear axle, integrated dropout speed sensor, and enduro sealed bearings to withstand the rigors of demanding trails.
Dusk RR Ebike sports high-performance rear derailleurs and wide 29er, tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.
Riding stats are just a few clicks away on the Shimano Steps E8000 display, with easy wireless connectivity features.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
FRAME
Dusk 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor. *Optional external battery
SIZES
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
REAR SHOCK
Fox Factory Float DPS LV EVOL, 205x65mm. Settings: Compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
SHOCK SETTINGS
Medium compression, Medium rebound, 0.4 volume spacer
FORK
Fox Factory 36 29 Float FIT 4 EVOL, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
HEADSET
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
STEM
Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore
HANDLEBAR
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm barbore
GRIPS
Onoff Diamond, 1lock-on, 135mm
SEATPOST
Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M/L size: 418.3x150mm, XL size: 475.1x170mm
SADDLE
Fizik Terra Aidon X5 145mm
FRONT BRAKE
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
REAR BRAKE
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
BRAKE LEVER
Sram Code R, tool-free reach adjust
RIMS
DT Swiss H1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes
SPOKES
DT Hybrid SP, straightpull
FRONT HUB
DT 370, Boost 15x110mm, IS 6 bolts
REAR HUB
DT 370, Boost 12x148mm, Ratchet LN system, IS 6 bolts
FRONT TIRE
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
REAR TIRE
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
CRANKSET
FSA, 165mm
RINGS
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
BOTTOM BRACKET
-
PEDALS
-
CHAIN
Sram SX Eagle, 12s, Powerlock
FRONT DERAILLEUR
-
REAR DERAILLEUR
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
SHIFT LEVERS
Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click
CASSETTE
Sram PG-1230, 11-50T, 12s
MOTOR
Shimano STEPS EP800
BATTERY
Simplo internal 630Wh
DISPLAY
Shimano STEPS E8000
DERAILLEUR HANGER
Mondraker M068
OTHERS

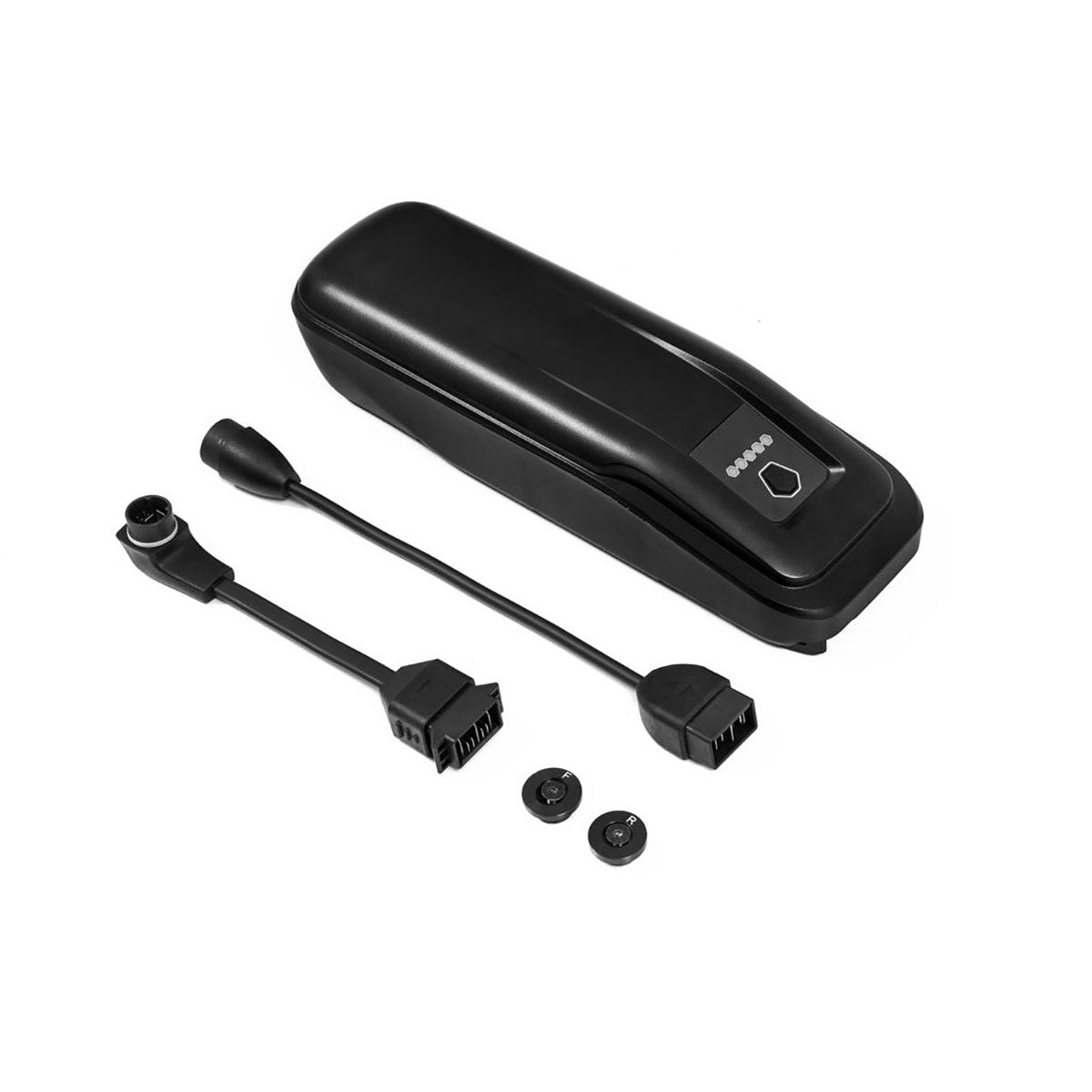

*Optional external battery: Simplo 360Wh
WEIGHT
-
GEOMETRY
MEASUREMENTS / GEOMETRY (Click on image to expand)
Size
S
M
L
XL
A
Seat Tube Length
380 mm
420 mm
450 mm
490 mm
B
Top Tube Length
605 mm
625 mm
650 mm
670 mm
C
Bottom Bracket Drop
-25 mm
-25 mm
-25 mm
-25 mm
D
Bottom Bracket Height
336 mm
336 mm
336 mm
336 mm
E
Chainstay Length
455 mm
455 mm
455 mm
455 mm
F
Seat Tube Angle, Actual
73.5°
73.5°
73.5°
73.5°
G
Seat Tube Angle, Effective
76°
76°
76°
76°
H
Head Tube Angle
65.5°
65.5°
65.5°
65.5°
I
Fork Offset
44 mm
44 mm
44 mm
44 mm
J
Wheelbase
1225 mm
1245 mm
1265 mm
1285 mm
K
Head Tube Length
110 mm
110 mm
130 mm
130 mm
L
Reach
450 mm
470 mm
490 mm
510 mm
M
Stack
622 mm
622 mm
640 mm
640 mm
BIKE SIZE GUIDE
Bike Size Guide (Click on image to zoom in)
Specs for all 2022 Bikes (Click to open in new window). Or download using the viewer below
Click for optional external battery setup manual
NOTE: For inquiries and special deals, call us at 805-850-3200.
** Optional External Battery to extend capacity to 990 Wh (Sold separately). Click for Easy Setup Manual.

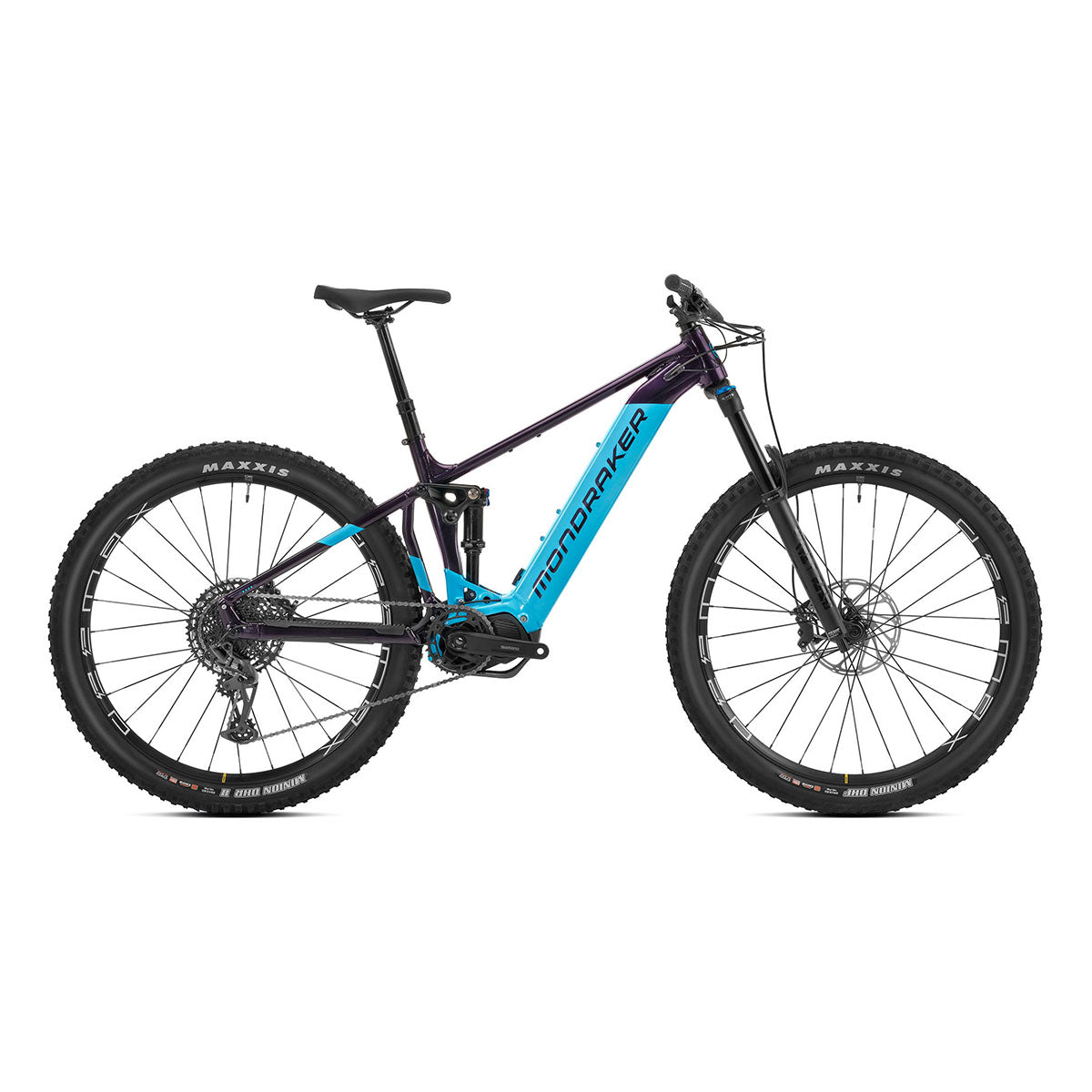

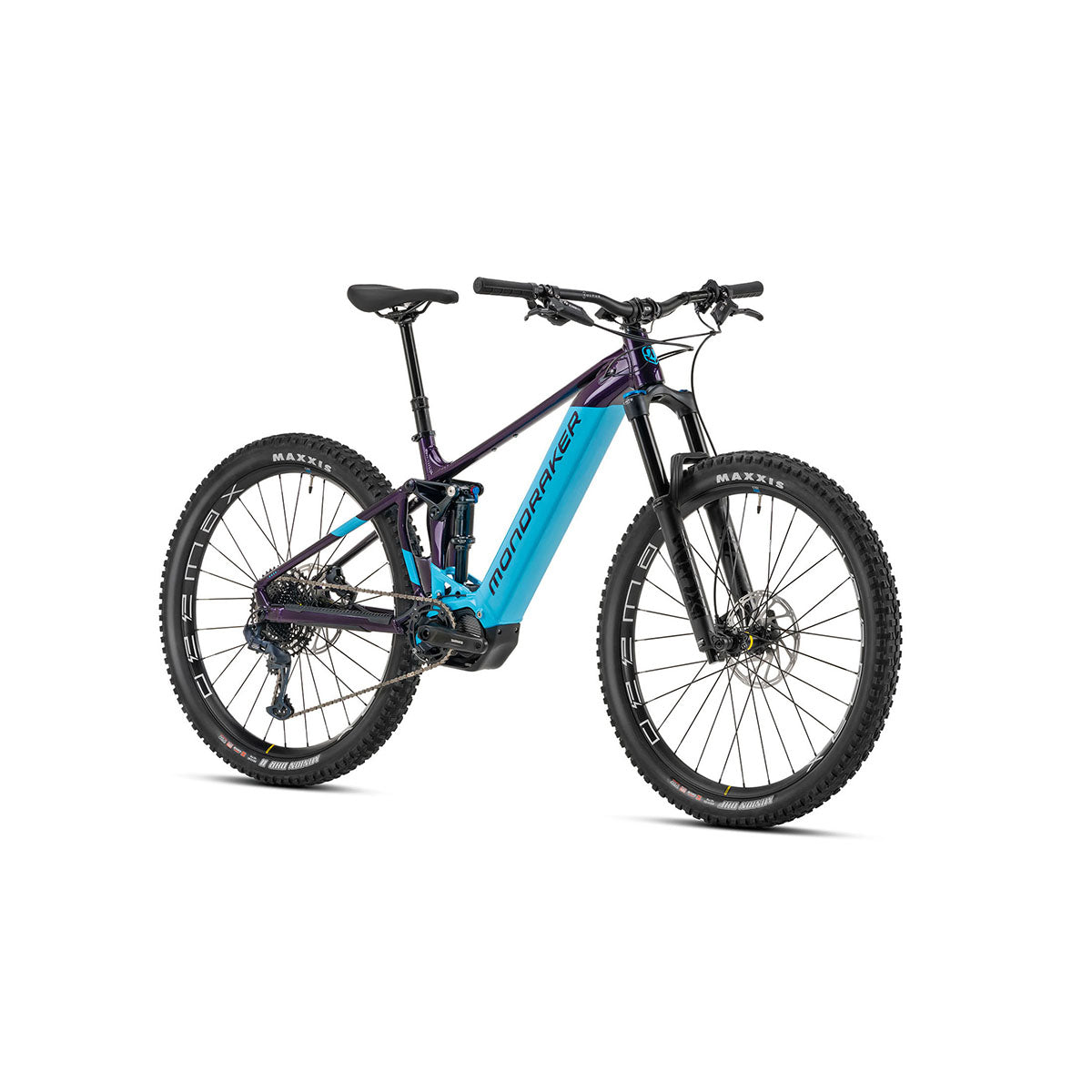

DESCRIPTION
Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 490mmColors: Deep Purple / Light Blue

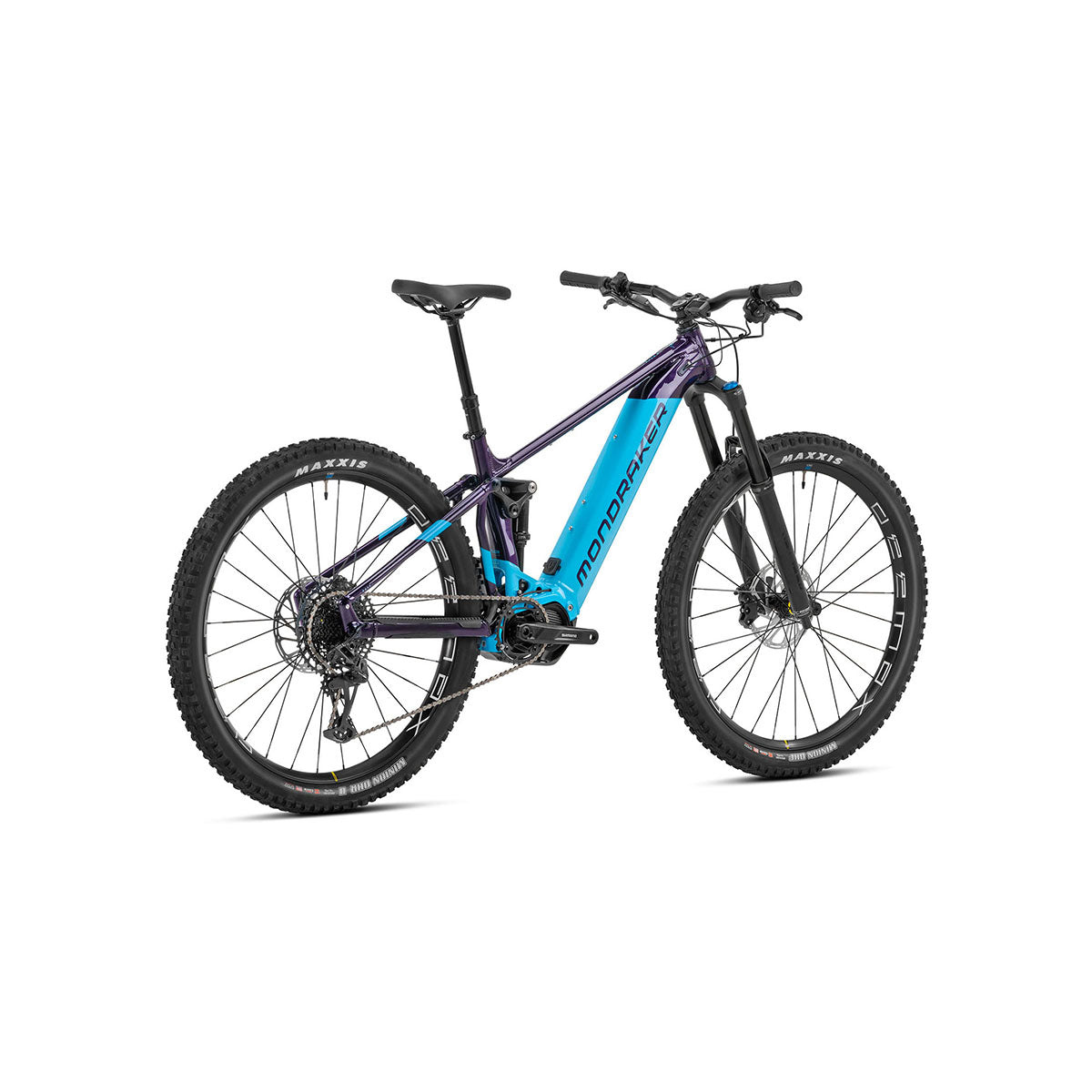

Get ready to experience the thrill with the Dusk R e-MTB bike designed for enduro, trail and all-mountain riding! The top-end emountain bike with modern geometry is a beauty. eBike optimized zero suspension uses large bearings on a one-piece monoblock link for extreme bump absorption for plusher rides.
Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking and suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
Unleash the power of the Shimano Steps EP800 motor, backed by an integrated 630 Wh battery, both seamlessly concealed inside a durable frame to handle the rigors of mountain bike riding. An optional Simplo 360Wh battery can be attached to the top portion of the downtube for easy extension to 990Wh range. External Battery should be purchased separately.
The compact and lighter engine design and stealth alloy frame help with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.
High-speed riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains.
HHG Internal Cable Routing helps with a minimalistic, clean design. One-piece upper linkage offers better lateral and torsional stiffness to reduce lateral stress on the shock action. Dusk RR design features oversized axles, boost rear axle, integrated dropout speed sensor, and enduro sealed bearings to withstand the rigors of demanding trails.
Dusk R Ebike sports high-performance rear derailleurs and wide 29er, tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.
Riding stats are just a few clicks away on the Shimano Steps E8000 display, with easy wireless connectivity features.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
FRAME
Dusk 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor. *Optional external battery
SIZES
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
REAR SHOCK
Fox Float DPS LV EVOL Performance, 205x65mm. Settings: Compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
SHOCK SETTINGS
Medium compression, Medium rebound, 0.4 volume spacer
FORK
Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
HEADSET
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
STEM
Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore
HANDLEBAR
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm barbore
GRIPS
Onoff Diamond, 1lock-on, 135mm
SEATPOST
Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm
SADDLE
Fizik Terra Aidon X5 145mm
FRONT BRAKE
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
REAR BRAKE
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
BRAKE LEVER
Sram G2 R, tool-free reach adjust
RIMS
MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
SPOKES
CN round stainless steel
FRONT HUB
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
REAR HUB
Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts
FRONT TIRE
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
REAR TIRE
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
CRANKSET
FSA, 165mm
RINGS
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
BOTTOM BRACKET
-
PEDALS
-
CHAIN
Sram SX Eagle, 12s, Powerlock
FRONT DERAILLEUR
-
REAR DERAILLEUR
Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
SHIFT LEVERS
Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
CASSETTE
Sram PG-1210, 11-50T, 12s
MOTOR
Shimano STEPS EP800
BATTERY
Simplo internal 630Wh
DISPLAY
Shimano STEPS E8000
DERAILLEUR HANGER
Mondraker M068
OTHERS
*Optional external battery: Simplo 360Wh
WEIGHT
-
GEOMETRY
MEASUREMENTS / GEOMETRY (Click on image to expand)
Size
S
M
L
XL
A
Seat Tube Length
380 mm
420 mm
450 mm
490 mm
B
Top Tube Length
605 mm
625 mm
650 mm
670 mm
C
Bottom Bracket Drop
-25 mm
-25 mm
-25 mm
-25 mm
D
Bottom Bracket Height
336 mm
336 mm
336 mm
336 mm
E
Chainstay Length
455 mm
455 mm
455 mm
455 mm
F
Seat Tube Angle, Actual
73.5°
73.5°
73.5°
73.5°
G
Seat Tube Angle, Effective
76°
76°
76°
76°
H
Head Tube Angle
65.5°
65.5°
65.5°
65.5°
I
Fork Offset
44 mm
44 mm
44 mm
44 mm
J
Wheelbase
1225 mm
1245 mm
1265 mm
1285 mm
K
Head Tube Length
110 mm
110 mm
130 mm
130 mm
L
Reach
450 mm
470 mm
490 mm
510 mm
M
Stack
622 mm
622 mm
640 mm
640 mm
BIKE SIZE GUIDE
Bike Size Guide (Click on image to zoom in)
Specs for all 2022 Bikes (Click to open in new window). Or download using the viewer below
Click for optional external battery setup manual
NOTE:NOTE: For inquiries and special deals, please call us at 805-850-3200.
** Optional External Battery to extend capacity to 990 Wh (Sold separately). Click for Easy Setup Manual.
DESCRIPTION
Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 490mmColors: Matte Black / Desert Grey / Orange

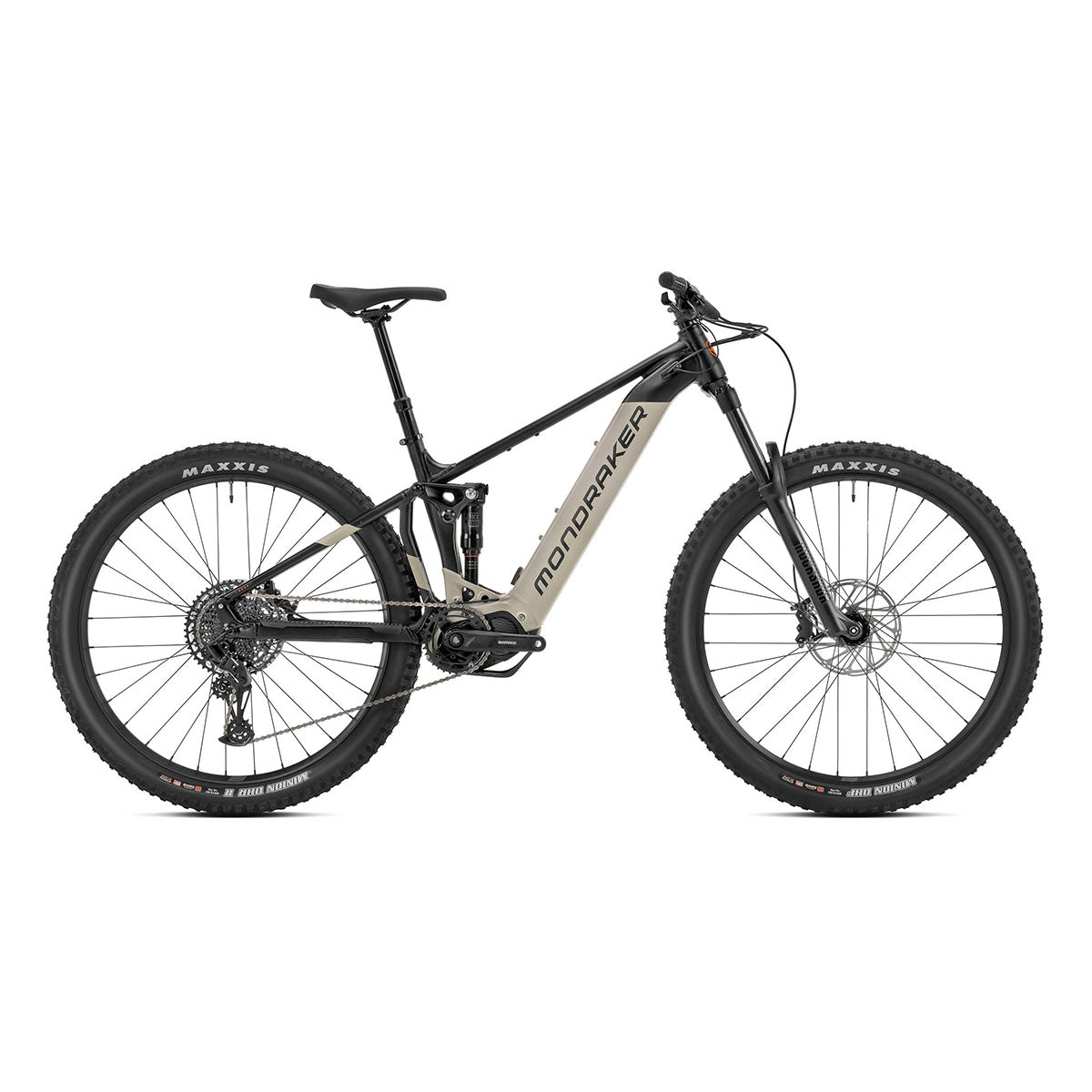

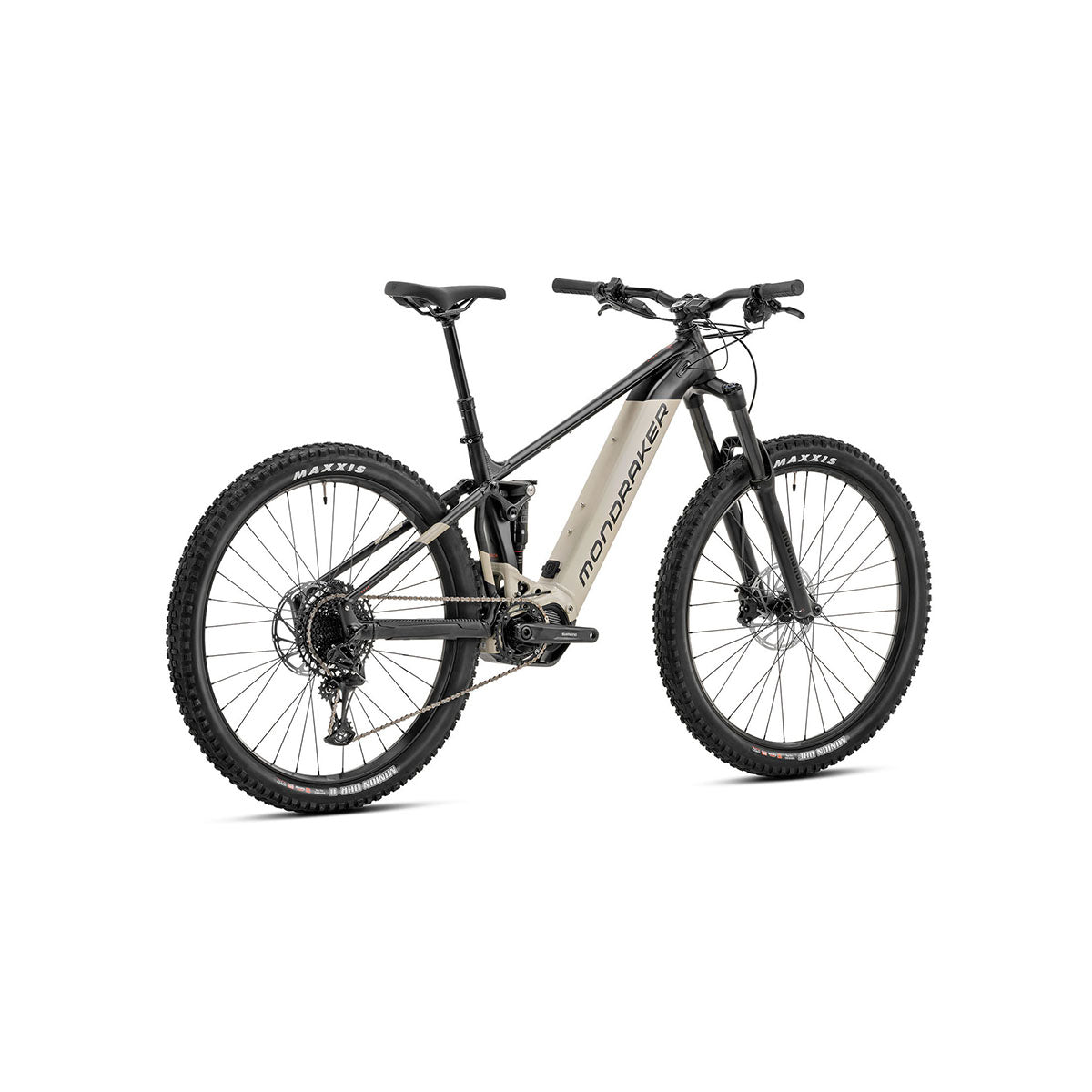

Get ready to experience the thrill with the Dusk e-MTB bike designed for trail and all-mountain riding! The top-end emountain bike with modern geometry is a beauty. eBike optimized zero suspension uses large bearings on a one-piece monoblock link for extreme bump absorption for plusher rides.
Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking and suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
Unleash the power of the Shimano Steps EP800 motor, backed by an integrated 630 Wh battery, both seamlessly concealed inside a durable frame to handle the rigors of mountain bike riding. An optional Simplo 360Wh battery can be attached to the top portion of the downtube for easy extension to 990Wh range. External Battery should be purchased separately.
The compact and lighter engine design and stealth alloy frame help with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.
High-speed riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains.
HHG Internal Cable Routing helps with a minimalistic, clean design. One-piece upper linkage offers better lateral and torsional stiffness to reduce lateral stress on the shock action. Dusk RR design features oversized axles, boost rear axle, integrated dropout speed sensor, and enduro sealed bearings to withstand the rigors of demanding trails.
Dusk Ebike sports high-performance rear derailleurs and wide 29er, tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.
Riding stats are just a few clicks away on the Shimano Steps E8000 display, with easy wireless connectivity features.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
FRAME
Dusk 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor. *Optional external battery
SIZES
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
REAR SHOCK
RockShox Deluxe Select R Debonair, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
SHOCK SETTINGS
-
FORK
RockShox 35 Silver TK 29, 160mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
HEADSET
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
STEM
Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore
HANDLEBAR
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm barbore
GRIPS
Onoff Diamond, 1lock-on, 135mm
SEATPOST
Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm
SADDLE
Fizik Terra Aidon X5 145mm
FRONT BRAKE
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
REAR BRAKE
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
BRAKE LEVER
Sram G2 R, tool-free reach adjust
RIMS
MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
SPOKES
CN round stainless steel
FRONT HUB
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
REAR HUB
Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts
FRONT TIRE
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
REAR TIRE
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
CRANKSET
FSA, 165mm
RINGS
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
BOTTOM BRACKET
-
PEDALS
-
CHAIN
Sram SX Eagle, 12s, Powerlock
FRONT DERAILLEUR
-
REAR DERAILLEUR
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
SHIFT LEVERS
Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
CASSETTE
Sram PG-1210, 11-50T, 12s
MOTOR
Shimano STEPS EP800
BATTERY
Simplo internal 630Wh
DISPLAY
Shimano STEPS E8000
DERAILLEUR HANGER
Mondraker M068
OTHERS
*Optional external battery: Simplo 360Wh
WEIGHT
-
GEOMETRY
MEASUREMENTS / GEOMETRY (Click on image to expand)
Size
S
M
L
XL
A
Seat Tube Length
380 mm
420 mm
450 mm
490 mm
B
Top Tube Length
605 mm
625 mm
650 mm
670 mm
C
Bottom Bracket Drop
-25 mm
-25 mm
-25 mm
-25 mm
D
Bottom Bracket Height
336 mm
336 mm
336 mm
336 mm
E
Chainstay Length
455 mm
455 mm
455 mm
455 mm
F
Seat Tube Angle, Actual
73.5°
73.5°
73.5°
73.5°
G
Seat Tube Angle, Effective
76°
76°
76°
76°
H
Head Tube Angle
65.5°
65.5°
65.5°
65.5°
I
Fork Offset
44 mm
44 mm
44 mm
44 mm
J
Wheelbase
1225 mm
1245 mm
1265 mm
1285 mm
K
Head Tube Length
110 mm
110 mm
130 mm
130 mm
L
Reach
450 mm
470 mm
490 mm
510 mm
M
Stack
622 mm
622 mm
640 mm
640 mm
BIKE SIZE GUIDE
Bike Size Guide (Click on image to zoom in)
Specs for all 2022 Bikes (Click to open in new window). Or download using the viewer below
Click for optional external battery setup manual
NOTE:For inquiries, please call us at 805-850-3200.

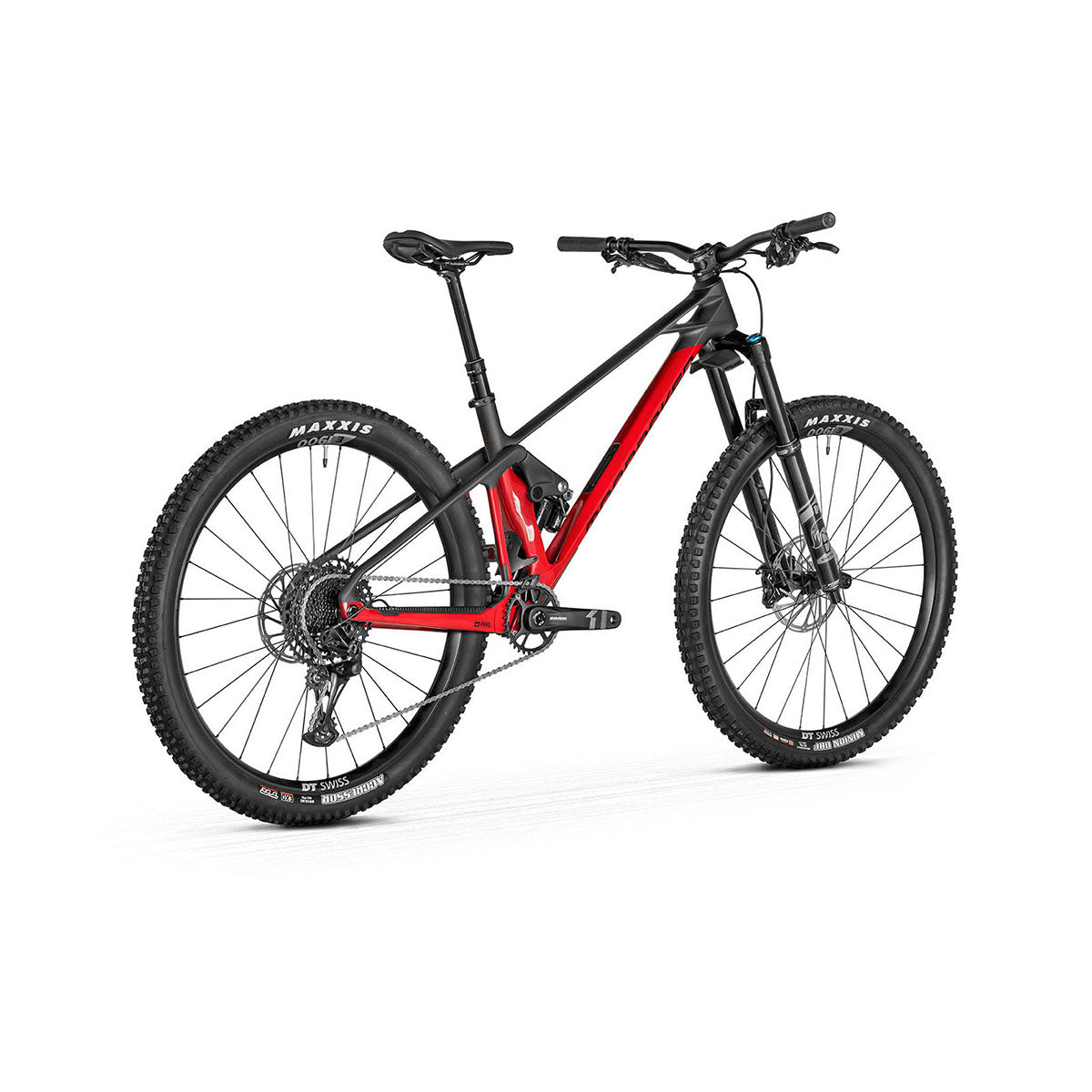

DESCRIPTION
Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 500mm Colors: Cherry Red/Carbon

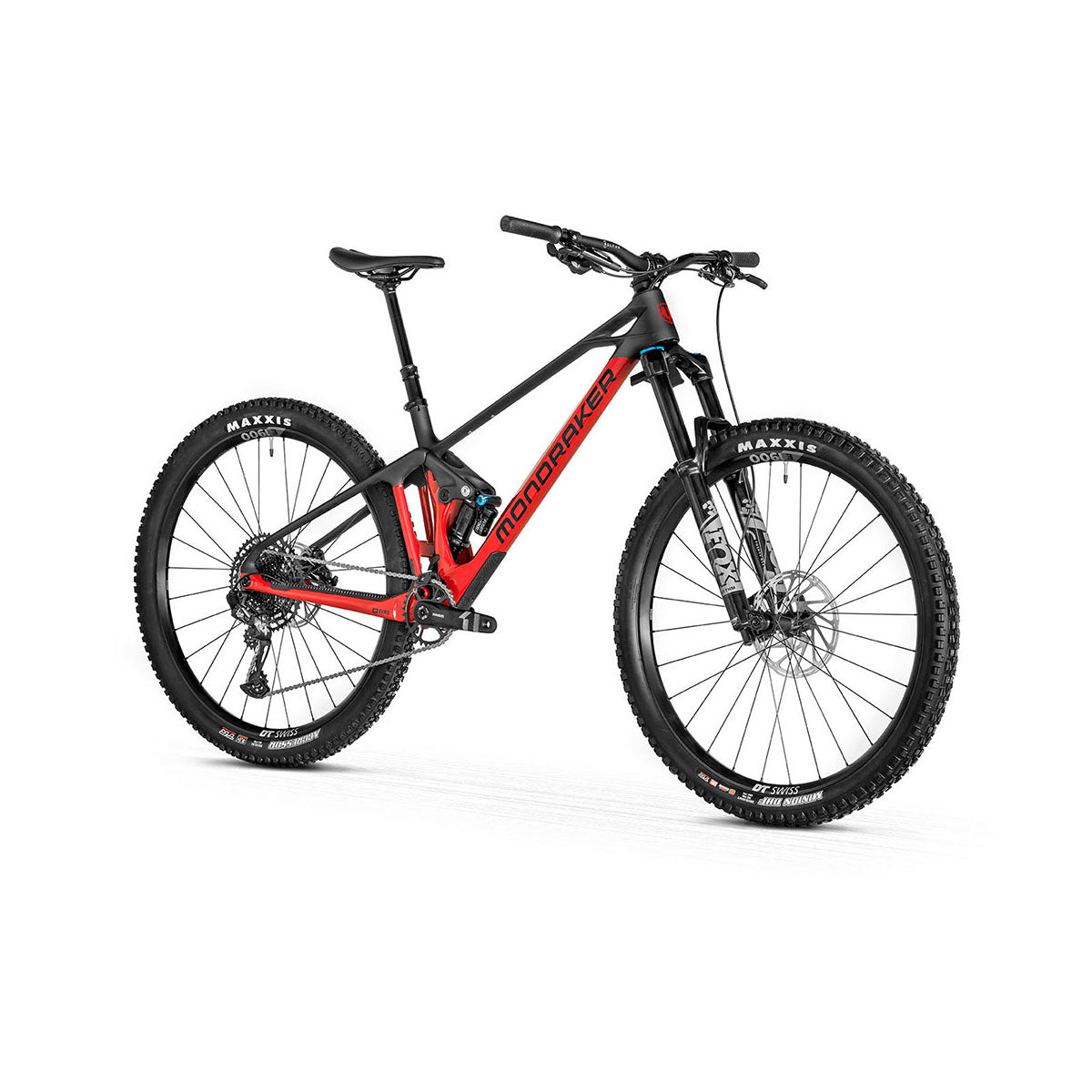

Experience the Foxy Carbon R difference in enduro, trail, uphill, and downhill! This top-end mountain bike boasts enhanced performance and ultra-modern geometry.
Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
Heavy enduro riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.
The proprietary stealth carbon airframe helps with resistance and mobility for better speed and performance. Stealth Air design delivers aero-style profile, maximum stiffness, lightest weight, and superior compliance ratio, extremely important for mtb riders. With the increased stiffness and improved pedaling efficiency, Foxy Carbon R becomes the bike of choice for technical climbs. Stealth air construction optimizes benefits such as strength, structural rigidity, trail buzz absorption, and lightness, in addition to consistency, reliability, and visual appeal.
HHG Internal Cable Routing helps with a minimalistic, clean design. Foxy Carbon R is loaded with features such as shock mudguards, boost rear axle, sealed bearings, custom frame protectors, BSA bottom bracket, and dedicated 1X drivetrain for better traction and momentum.
Foxy Carbon R 29 sports high-performance rear derailleurs and wide 29” tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
FRAME
Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry,aluminium CSC upper link with carbon bridge, Boost 12x148mm rear axle, tapered head tube, 73mmBSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealedbearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry Kit
SIZES
S: 380mm / M: 420mm / L: 450mm / XL: 500mm
REAR SHOCK
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
SHOCK SETTINGS
Light compression, extralight rebound, air volume spacer 0.6
FORK
Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
HEADSET
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
STEM
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
HANDLEBAR
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GRIPS
Onoff Diamond, 1lock-on, 135mm
SEATPOST
Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm
SADDLE
SDG BEL-AIR 3.0, LPU foam, steel rails
FRONT BRAKE
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
REAR BRAKE
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
BRAKE LEVER
Sram G2 R, tool-free reach adjust
RIMS
DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes
SPOKES
DT Champion, straightpull
FRONT HUB
DT 370, Boost 15x110mm, IS 6 bolts
REAR HUB
DT 370, Boost 12x148mm, 18T Ratched LN system, IS 6 bolts
FRONT TIRE
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
REAR TIRE
Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
CRANKSET
Truvativ Descendant 6K Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
RINGS
32T, steel, X-Sync 2
BOTTOM BRACKET
Sram DUB BSA, sealed bearings, 73mm
PEDALS
-
CHAIN
Sram NX Eagle, 12s, Powerlock
FRONT DERAILLEUR
-
REAR DERAILLEUR
Sram Trigger NX Eagle, 12s, X-Actuation 1:1
SHIFT LEVERS
Sram Trigger NX Eagle, 12s, X-Actuation 1:1
CASSETTE
Sram XG-1230, 11-50T, 12s
MOTOR
-
BATTERY
-
DISPLAY
-
DERAILLEUR HANGER
Sram UDH
OTHERS
*Optional Geometry kit: steering cups: +/- 1°
WEIGHT
14.1 Kg
GEOMETRY
MEASUREMENTS / GEOMETRY
Size
S
M
L
XL
A
Seat Tube Length
375 mm
415 mm
445 mm
500 mm
B
Top Tube Length
600 mm
620 mm
650 mm
670 mm
C
Bottom Bracket Drop
-30 mm
-30 mm
-30 mm
-30 mm
D
Bottom Bracket Height
345 mm
345 mm
345 mm
345 mm
E
Chainstay Length
445 mm
445 mm
445 mm
445 mm
F
Seat Tube Angle, Actual
70°
70°
70°
70°
G
Seat Tube Angle, Effective
75.5°
75.5°
75.5°
75.5°
H
Head Tube Angle
64.5°
64.5°
64.5°
64.5°
I
Fork Offset
44 mm
44 mm
44 mm
44 mm
J
Wheelbase
1210 mm
1233 mm
1260 mm
1286 mm
K
Head Tube Length
90 mm
100 mm
115 mm
130 mm
L
Reach
445 mm
465 mm
485 mm
505 mm
M
Stack
617 mm
627 mm
641 mm
656 mm
RESOURCES
Bike Size Guide (Click on image to zoom in)
Foxy Carbon R 2022 Setup (Click to open in new window). Or download using the viewer below
NOTE:
For inquiries, please call us 1-805-850-3200

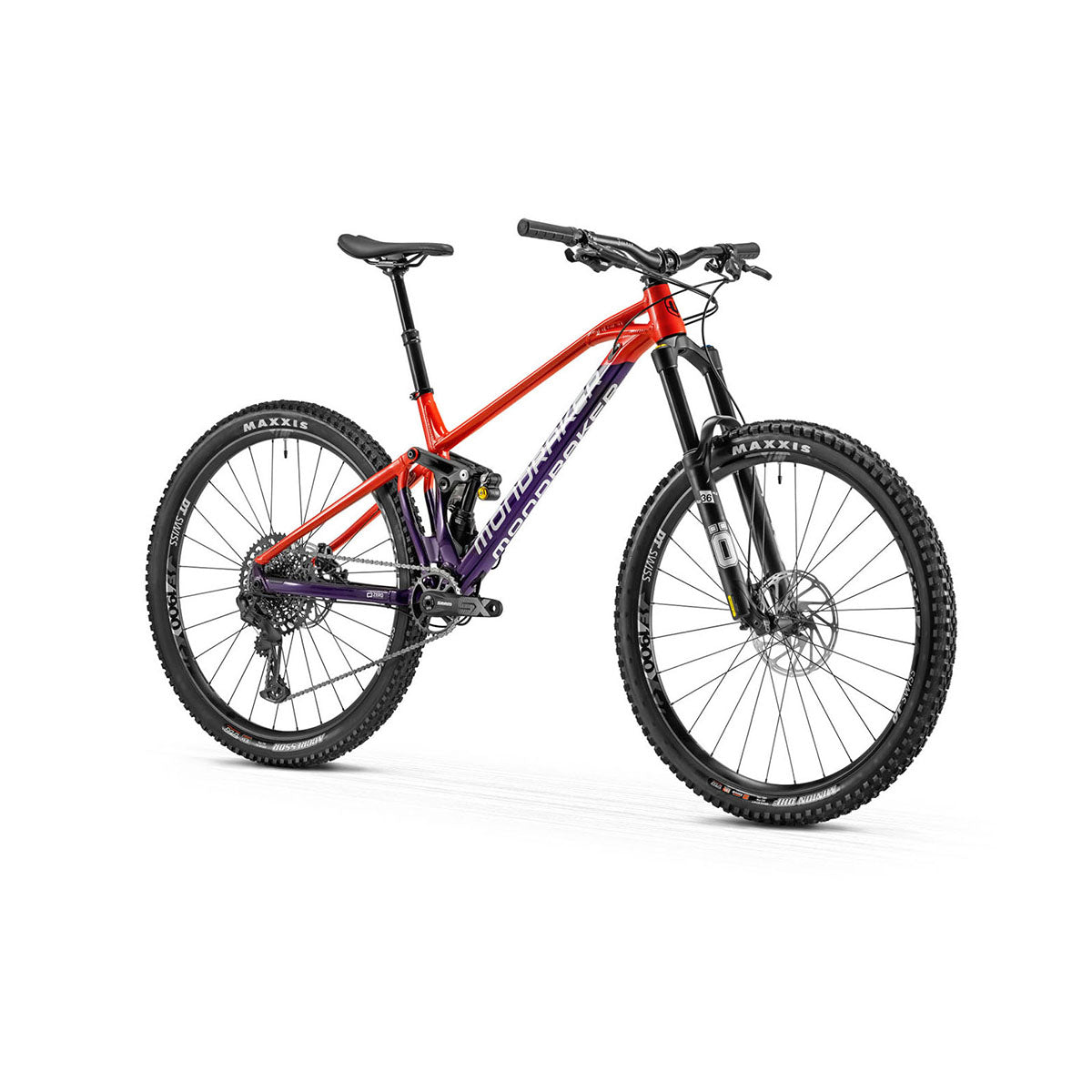

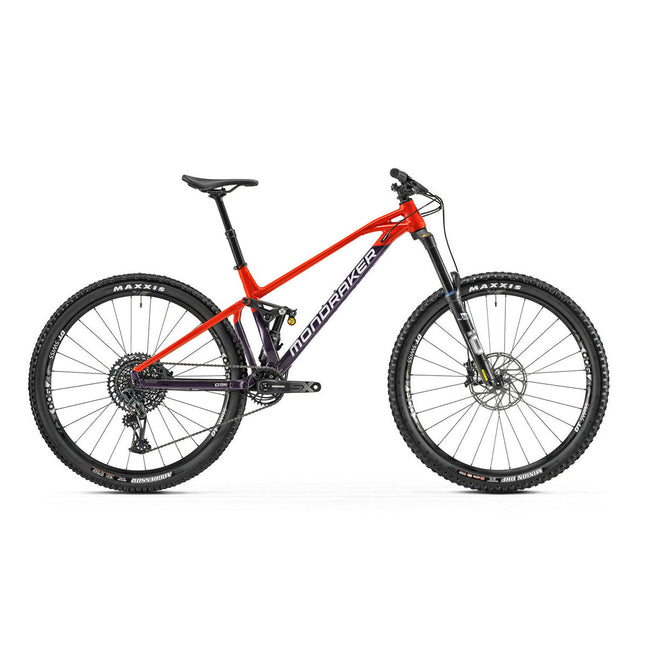

DESCRIPTION

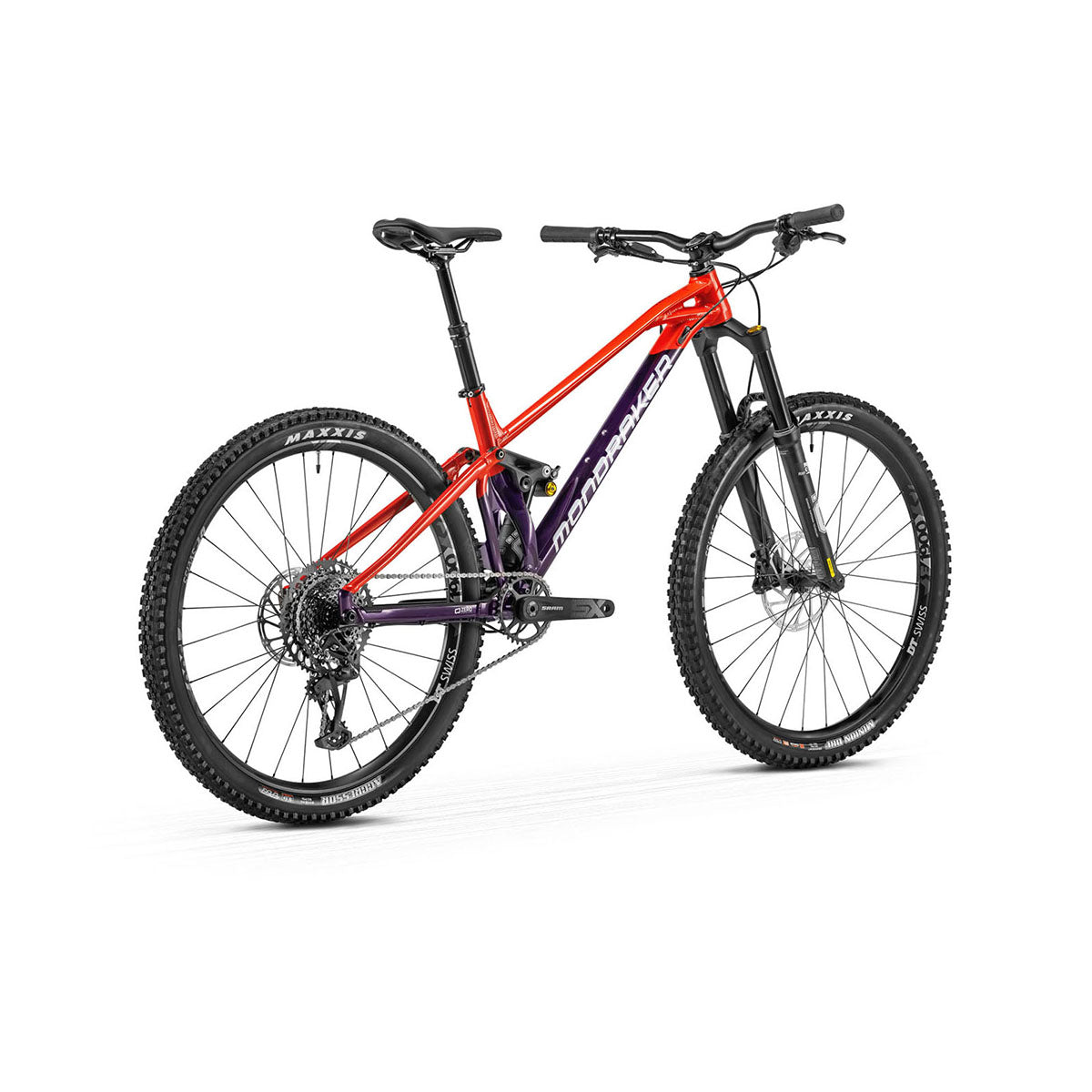

Experience the Foxy R difference in enduro, trail, uphill, and downhill! This top-end mountain bike boasts enhanced performance and ultra-modern geometry.
Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
Heavy enduro riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.
The durable stealth alloy frame helps with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.
Foxy R is loaded with more protection features such as sealed Enduro bearings, and performance features like dedicated 1X drivetrain, telescopic Seatpost internal routing, boost rear axle, and BSA bottom bracket for better traction and momentum. One-piece monoblock upper link offers better lateral and torsional stiffness to reduce lateral stress on the shock action.
Foxy R sports high-performance rear derailleurs and wide 29” tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.
Size: S: 380mm / M: 420mm / L: 470mm / XL: 510mmColors: Deep Purple / Flame Red
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
FRAME
6061 hydroformed Stealth Alloy Evo, one-piece Monoblock upper link, molded chainstay and down tube protection
SIZES
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
REAR SHOCK
Öhlins TTX Air 205x62.5mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
SHOCK SETTINGS
C20 compression, R35 rebound
FORK
Öhlins RXF 36 M.2, TTX18 Twin Tube cartridge damper, ramp chamber, high-speed compression lever with climb mode, low-speed compression adjust, rebound adjust, 44mm offset, 160mm
HEADSET
ONOFF Saturn, sealed angular contact bearings
STEM
ONOFF Sulfur FG, 6061 forged alloy, 30mm length, 31.8mm bar clamp
HANDLEBAR
ONOFF Sulfur 1.0, double-butted 6061 alloy, 800mm width, 20mm rise, 9° backsweep, 5° upsweep, 31.8mm clamp diameter
GRIPS
ONOFF Diamond, 135mm length, single lock-on
SEATPOST
ONOFF Pija dropper, 31.6mm, Single bolt, 31.6mm, Single bolt Drop: 100mm (SM)125mm (MD)150mm (LG)170mm (XL)
SADDLE
SDG Bel-Air 3.0, LPU foam, steel rails
FRONT BRAKE
SRAM G2 R, 4-piston, steel-backed organic pads, SRAM CenterLine 6-bolt one-piece rotors 200mm, SRAM G2 R, tool-free reach adjust
REAR BRAKE
SRAM G2 R, 4-piston, steel-backed organic pads, SRAM CenterLine 6-bolt one-piece rotor 180mm, SRAM G2 R, tool-free reach adjust
BRAKE LEVER
Sram G2 RS, SwingLink, tool-free reach adjust
RIMS
DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes
SPOKES
DT Swiss Champion, straightpull
FRONT HUB
DT Swiss 370, 110x15mm Boost
REAR HUB
148x12mm Boost with 18 tooth Ratchet LN freehub and HG driver
FRONT TIRE
Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.5" WT
REAR TIRE
Maxxis Aggressor, Dual Compound, EXO, TR, 60 TPI, folding bead, 29" x 2.3"
CRANKSET
SRAM SX Eagle DUB, Length: 170mm (SM/MD), 175mm (LG/XL)
RINGS
32T, CNC-machined alloy
BOTTOM BRACKET
355mm (21mm drop), SRAM DUB, sealed bearings, 73mm English/BSA threaded
PEDALS
-
CHAIN
435mm, None, SRAM SX Eagle, 32 tooth, steel, X-SYNC 2, direct mount, SRAM SX Eagle, 12-speed, with PowerLock
FRONT DERAILLEUR
-
REAR DERAILLEUR
SRAM NX Eagle, 12-speed, Type 3 roller bearing clutch, cage lock, X-ACTUATION
SHIFT LEVERS
SRAM SX Eagle, 12-speed, X-ACTUATION
CASSETTE
SRAM PG-1230, 11-50T
MOTOR
-
BATTERY
-
DISPLAY
-
DERAILLEUR HANGER
Mondraker M068
OTHERS
-
WEIGHT
-
GEOMETRY
MEASUREMENTS / GEOMETRY (Click on image to expand)
Size
S
M
L
XL
A
Seat Tube Length
380 mm
420 mm
470 mm
510 mm
B
Top Tube Length
606 mm
629 mm
654 mm
676 mm
C
Bottom Bracket Drop
-21 mm
-21 mm
-21 mm
-21 mm
D
Bottom Bracket Height
355 mm
355 mm
355 mm
355 mm
E
Chainstay Length
435 mm
435 mm
435 mm
435 mm
F
Seat Tube Angle, Actual
71°
71°
71°
71°
G
Seat Tube Angle, Effective
76°
76°
76°
76°
H
Head Tube Angle
66°
66°
66°
66°
I
Fork Offset
44 mm
44 mm
44 mm
44 mm
J
Wheelbase
1193 mm
1222 mm
1248 mm
1274 mm
K
Head Tube Length
90 mm
100 mm
115 mm
130 mm
L
Reach
450 mm
475 mm
495 mm
515 mm
M
Stack
606 mm
615 mm
630 mm
643 mm
NOTE:For inquiries, please call us at 805-850-3200.
DESCRIPTION
Size: S: 380mm / M: 420mm / L: 470mm / XL: 510mmColors: Matte Cherry Red / Nimbus Grey

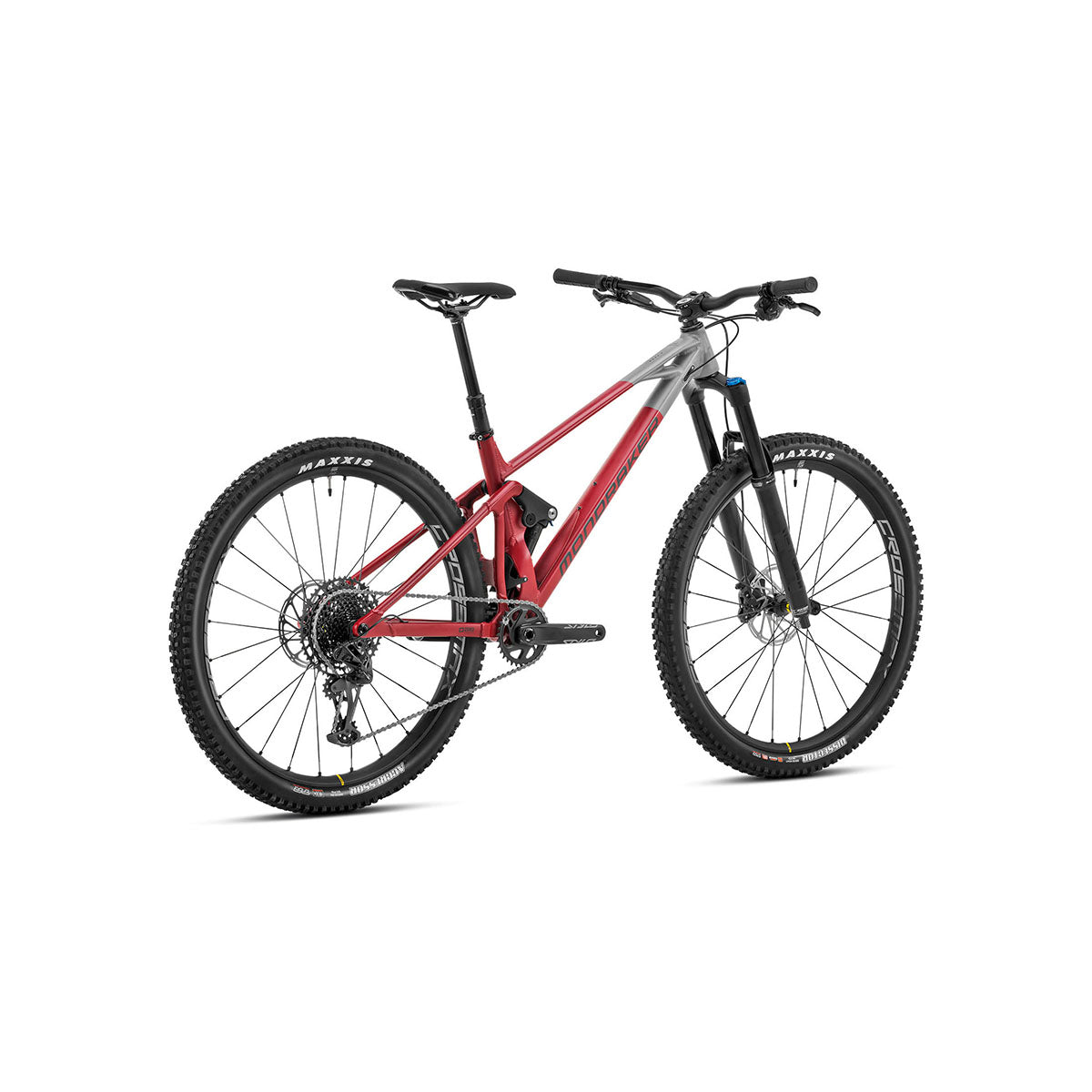

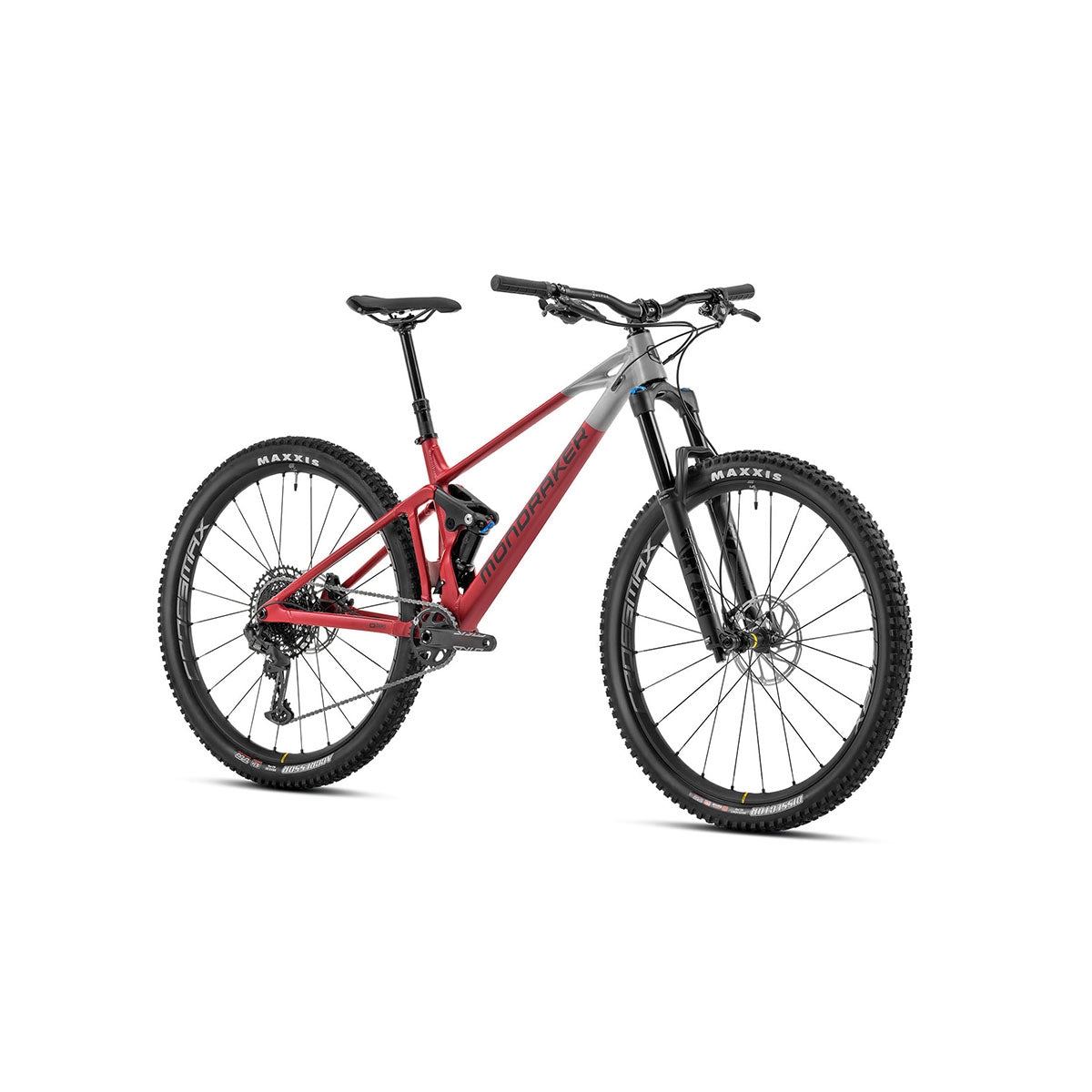

Raze R offers all the benefits of Raze Carbon model with a stealth alloy frame. Race R has all the advanced Mondraker features such as Forward Geometry, and Zero Suspension system in an affordable price range. The combination of features makes it the bike of choice for both ups and downs.
Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
Heavy enduro riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.
The durable stealth alloy frame helps with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
FRAME
Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
SIZES
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
REAR SHOCK
Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 30x8mm bottom bushings
SHOCK SETTINGS
Light compression, light rebound, air volume spacer 0.6
FORK
Fox 36 29 Float GRIP EVOL Rhythm, 150mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
HEADSET
ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
STEM
ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
HANDLEBAR
ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GRIPS
Onoff Twin, 1lock-on, 135mm
SEATPOST
ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
SADDLE
MDK series PU 2023
FRONT BRAKE
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
REAR BRAKE
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
BRAKE LEVER
Sram G2 R, tool-free reach adjust
RIMS
Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
SPOKES
24 straight-pull double butted spokes
FRONT HUB
Infinity hub, Boost 15x110mm, IS 6 bolts
REAR HUB
Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts
FRONT TIRE
Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
REAR TIRE
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
CRANKSET
Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
RINGS
32T, CNC-machined alloy, X-SYNC 2
BOTTOM BRACKET
Sram DUB BSA, sealed bearings, 73mm
PEDALS
-
CHAIN
Sram SX Eagle, 12s, Powerlock
FRONT DERAILLEUR
-
REAR DERAILLEUR
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
SHIFT LEVERS
Sram Trigger NX Eagle, 12s, X-Actuation 1:1
CASSETTE
Sram PG-1210, 11-50T, 12s
MOTOR
-
BATTERY
-
DISPLAY
-
DERAILLEUR HANGER
Sram UDH
OTHERS
-
WEIGHT
-
GEOMETRY
MEASUREMENTS / GEOMETRY (Click on image to expand)
Size
S
M
L
XL
A
Seat Tube Length
375 mm
415mm
445mm
490mm
B
Top Tube Length
594 mm
614 mm
638 mm
658 mm
C
Bottom Bracket Drop
29 mm
29 mm
29 mm
29 mm
D
Bottom Bracket Height
340 mm
340 mm
340 mm
340 mm
E
Chainstay Length
435 mm
435 mm
435 mm
435 mm
F
Seat Tube Angle, Actual
72°
72°
72°
72°
G
Seat Tube Angle, Effective
77°
77°
77°
77°
H
Head Tube Angle
65.5°
65.5°
65.5°
65.5°
I
Fork Offset
44 mm
44 mm
44 mm
44 mm
J
Wheelbase
1197 mm
1216 mm
1246 mm
1266 mm
K
Head Tube Length
100 mm
100 mm
120 mm
120 mm
L
Reach
450 mm
470 mm
490 mm
510 mm
M
Stack
623 mm
623 mm
641 mm
641 mm
RESOURCES
Spare PartsSuspension Setup
SIZE GUIDE
Bike Size Guide (Click on image to zoom in)
OVERVIEW

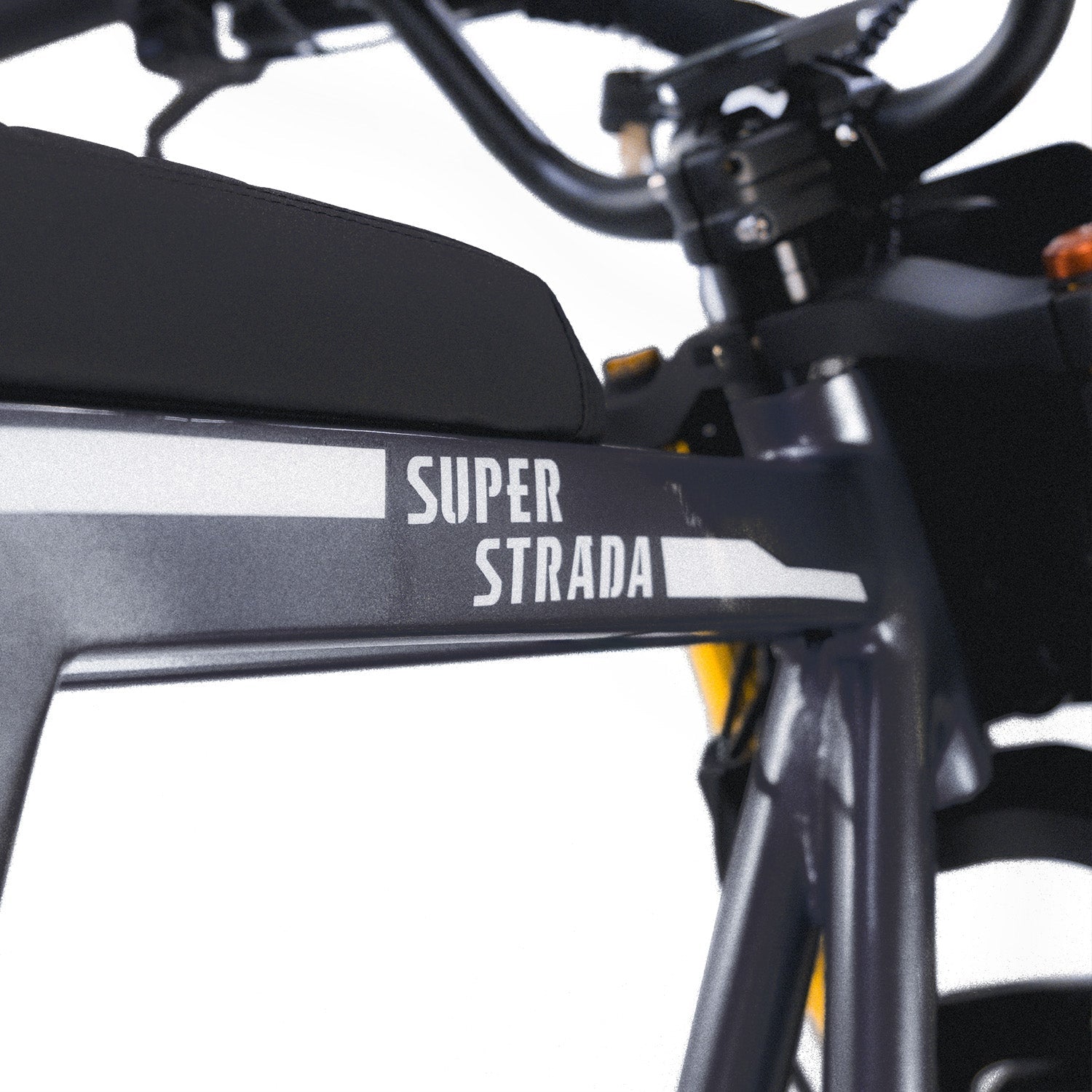

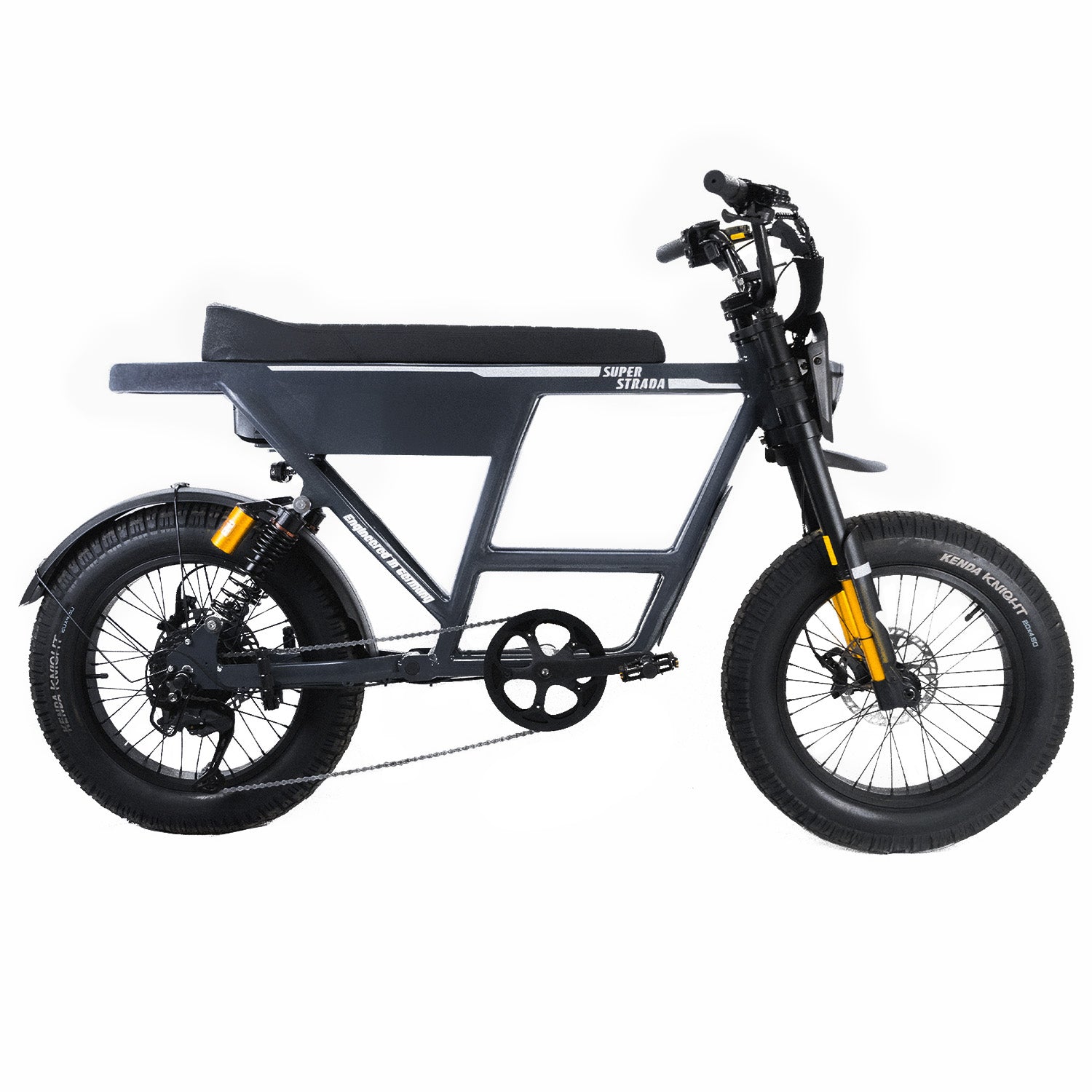

Redefine your ride with the Super Strada NOMAD , an ultra-durable e-bike built for performance and comfort.
Featuring a 48V 750W Bafang motor and a 20Ah SS-PRO battery, this bike delivers effortless power and a range ideal for urban commutes or off-road adventures. Equipped with premium DH-rated suspension, 4-piston hydraulic disc brakes, and Shimano CUES 9-speed shifting, it ensures a smooth and controlled ride even on the toughest terrain.
Crafted with a 6061 aluminum double-tube frame, it's designed for two riders and supports up to 650 lbs, making it perfect for solo or shared journeys. The Super Strada LCD display provides ride metrics at a glance, while integrated LED lights, turn signals, and a horn enhance safety. Available in Gloss Grey and Sahara Sand, this Class 2 e-bike is ready to take you to speeds of 20 mph in style and comfort.
Optional accessories like a rear rack and utility features make the Super Strada NOMAD a versatile companion for any adventure.
HIGHLIGHTS
POWER AND RELIABILITY. The 48V – 20Ah (960Wh) battery with a 750W motor delivers extended range, fast acceleration, and reliable power—perfect for daily tasks whenreliability is key.
STABILITY AND COMFORT. Super Strada’s high-end LAMBDA alloy frame construction was specifically designed to handle two adult riders safely and comfortably at all times.
SAFETY AND LONGEVITY. Safety and longevity are key design aspects of Super Strada. 4 piston hydraulic brakes, e-bike approved parts, dual rear suspension and high output lights come standard.
UP TO DATE INFORMATION. The oversized color screen provides extra visibility. It allows fast uploads, reprogramming, and a USB port to charge your phone.
OPTIONS AND VERSATILITY. Models differ between types of drive train, suspensions, and battery size. Top safety features like brakes, tires, wheels, frame and motor are standard.
TECH SPECS
OVERVIEW: 20 wheels, motor: 48 V 750 W, SS-PRO battery: 20Ah, 4-piston hydraulic disc brakes, front reverse mount DH Suspension, rear Dual Coil Spring Suspension, Shimano Cues, 9- speed shifting
COLORS: Available in 2 color options: Gloss Grey and Sahara Sand
FRAME: Ultra-light 6061 aluminum extra heavy-duty double tubes rated for 2 riders!
CLASS: Class 2
SPEED: 20 mph
MOTOR: 48 V 750 W Super Strada Bafang rear wheel hub motor
DISPLAY: Super Strada X-large LCD color display, 5 button controller, type-C USB port
BATTERY: 20.0Ah SS-PRO battery mounted under the seat, keyed, with slide out mechanism
REAR SUSPENSION: Equipped with dual 100 mm hydraulic shocks and springs, rated to support up to 650 lbs for added weight capacity

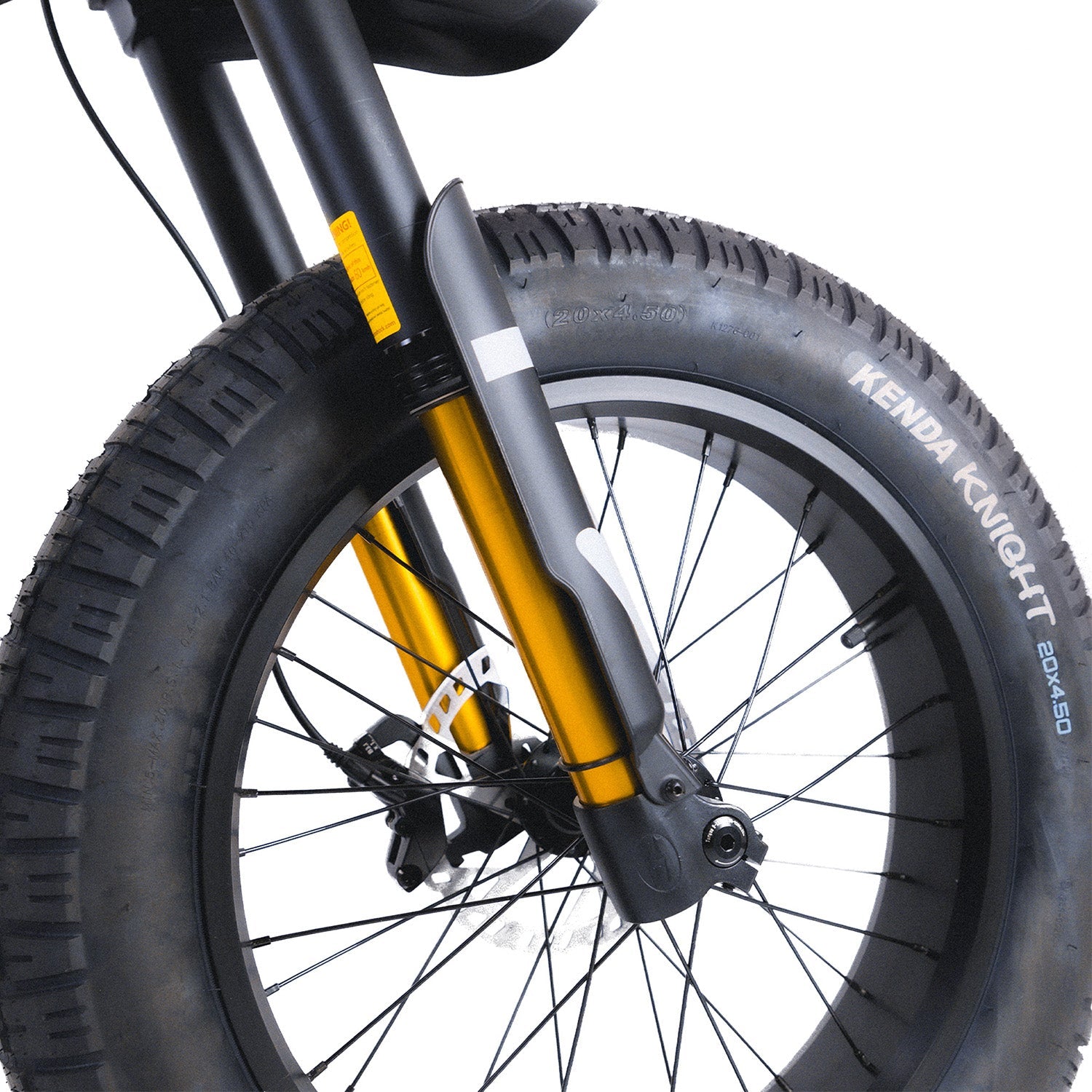

FRONT SUSPENSION: DH-rated! High-performance front suspension fork reverse-built design with gold coating for optimal slide performance
FRONT AXLE: e-Bike Thru axle for highest safety and stability
BRAKES: Super Strada 4-piston hydraulic brakes
DERAILLEUR: SHIMANO CUES 9-speed
LIGHTS: Super Strada front LED light with horn, plus rear LED brake light and turn signals.
EXTRAS: Adjustable kickstand, foot pegs, heavy-duty utility rear for hauling, optional rear rack available, and an extended motorcycle bench with a higher seating position for enhanced comfort.
WHEELS: 20" e-Bike rated wheels with double-wall alloy rims for added strength, stainless steel rust-resistant spoke nipples, thorn-resistant tubes, and a premium front hub
TIRES: e-Bike speed and use rated Kenda Knight 4.0 x 20 (all black)
VIDEOS
Beach and Ride
Strada Dirt Track
Strada Showroom B-Roll

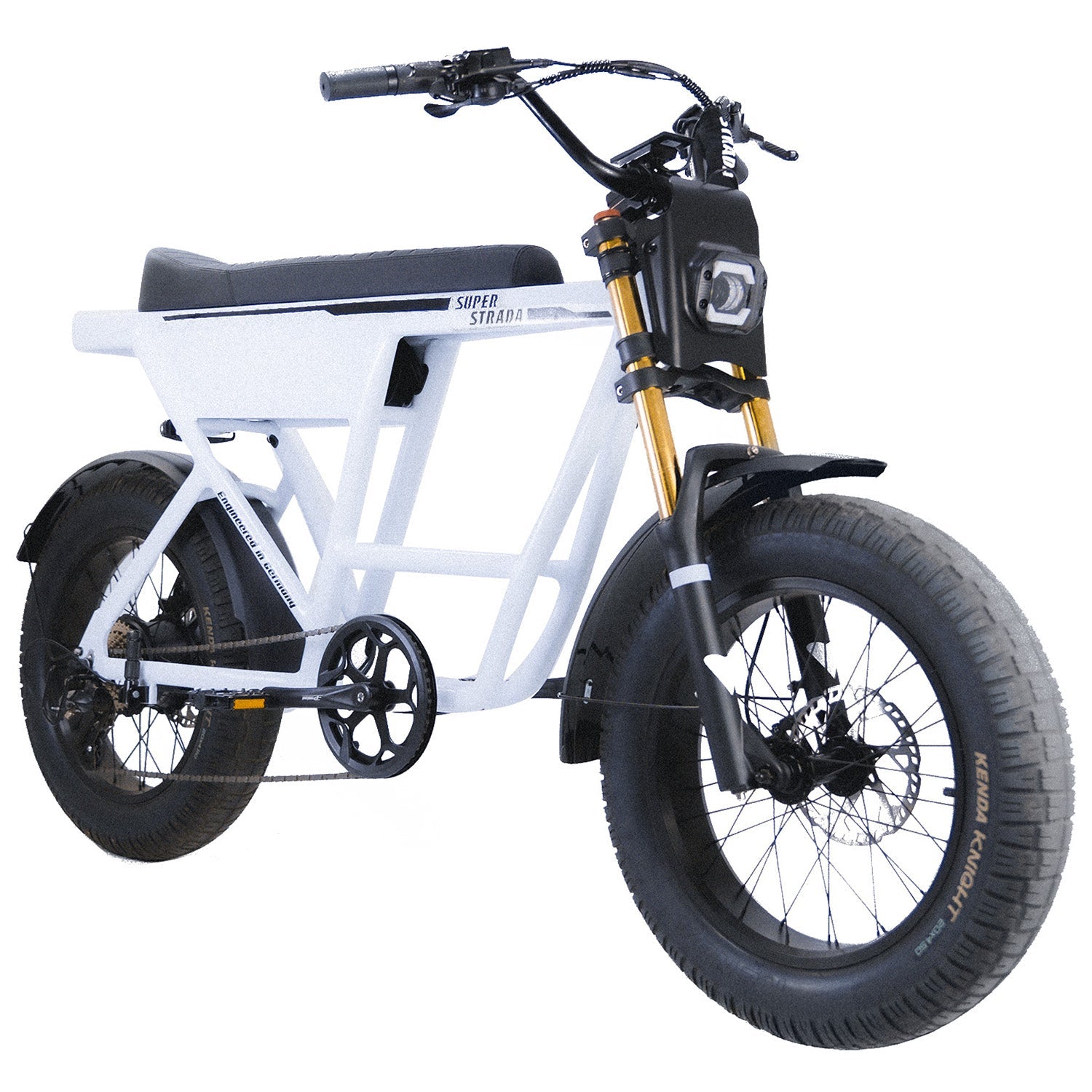

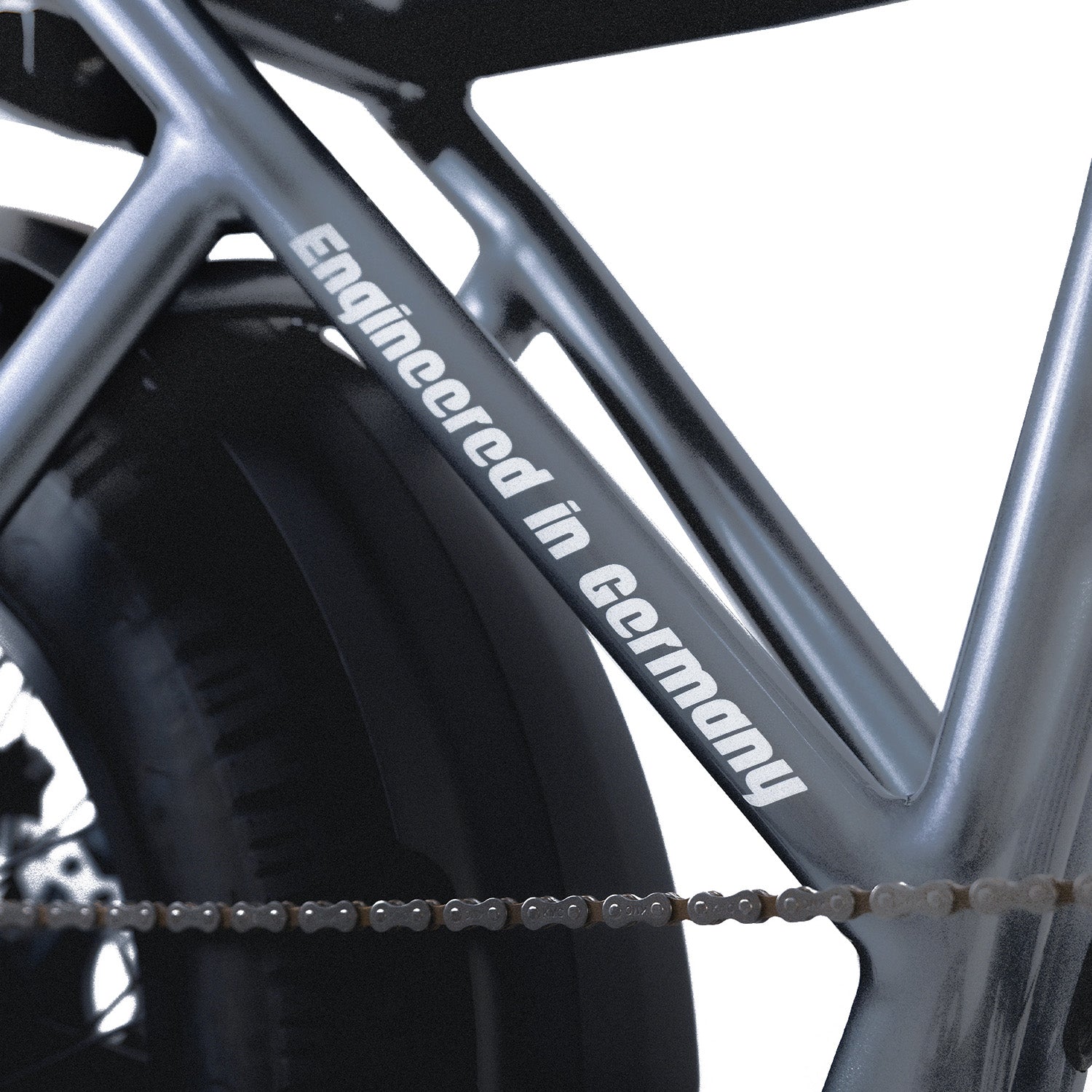

OVERVIEW

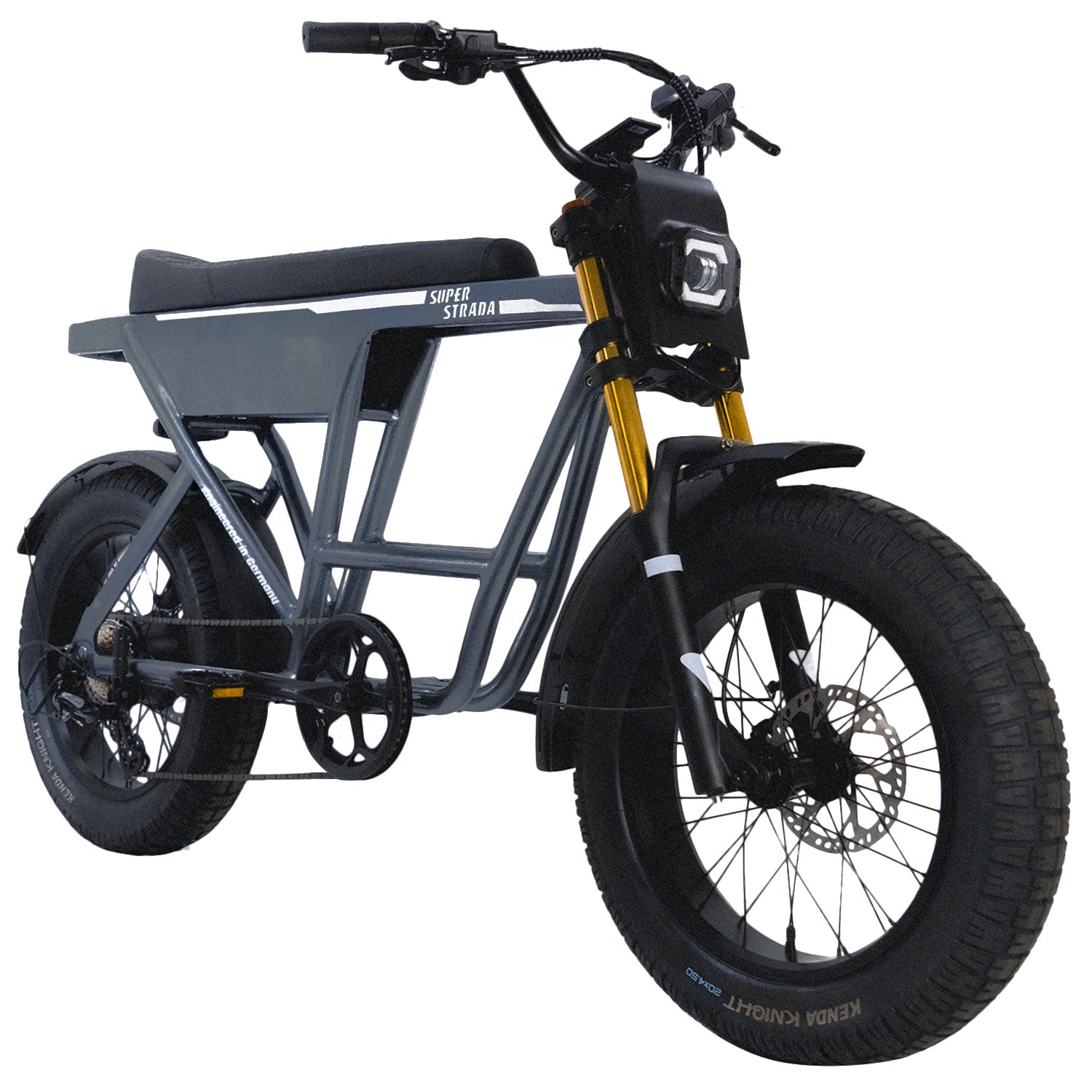

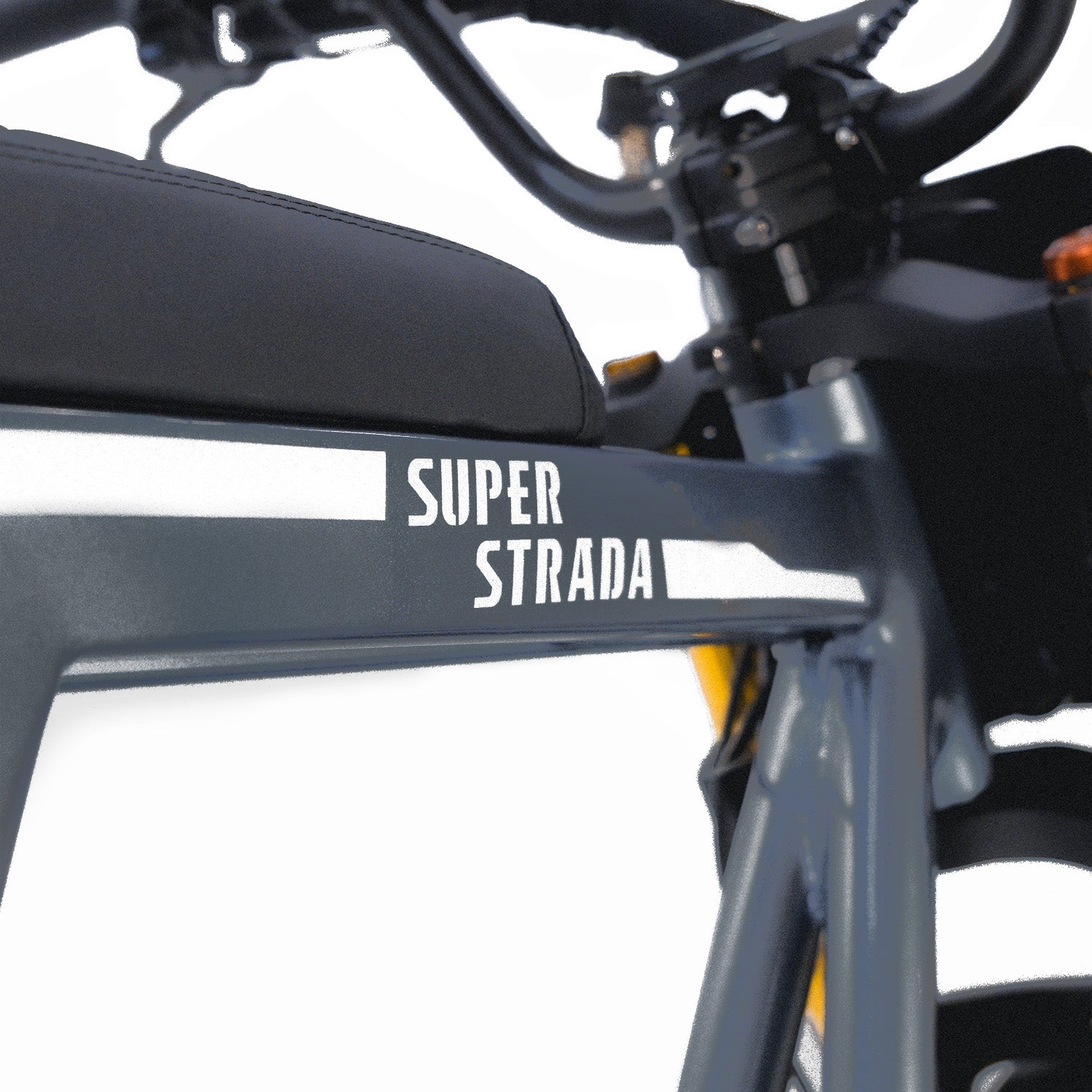

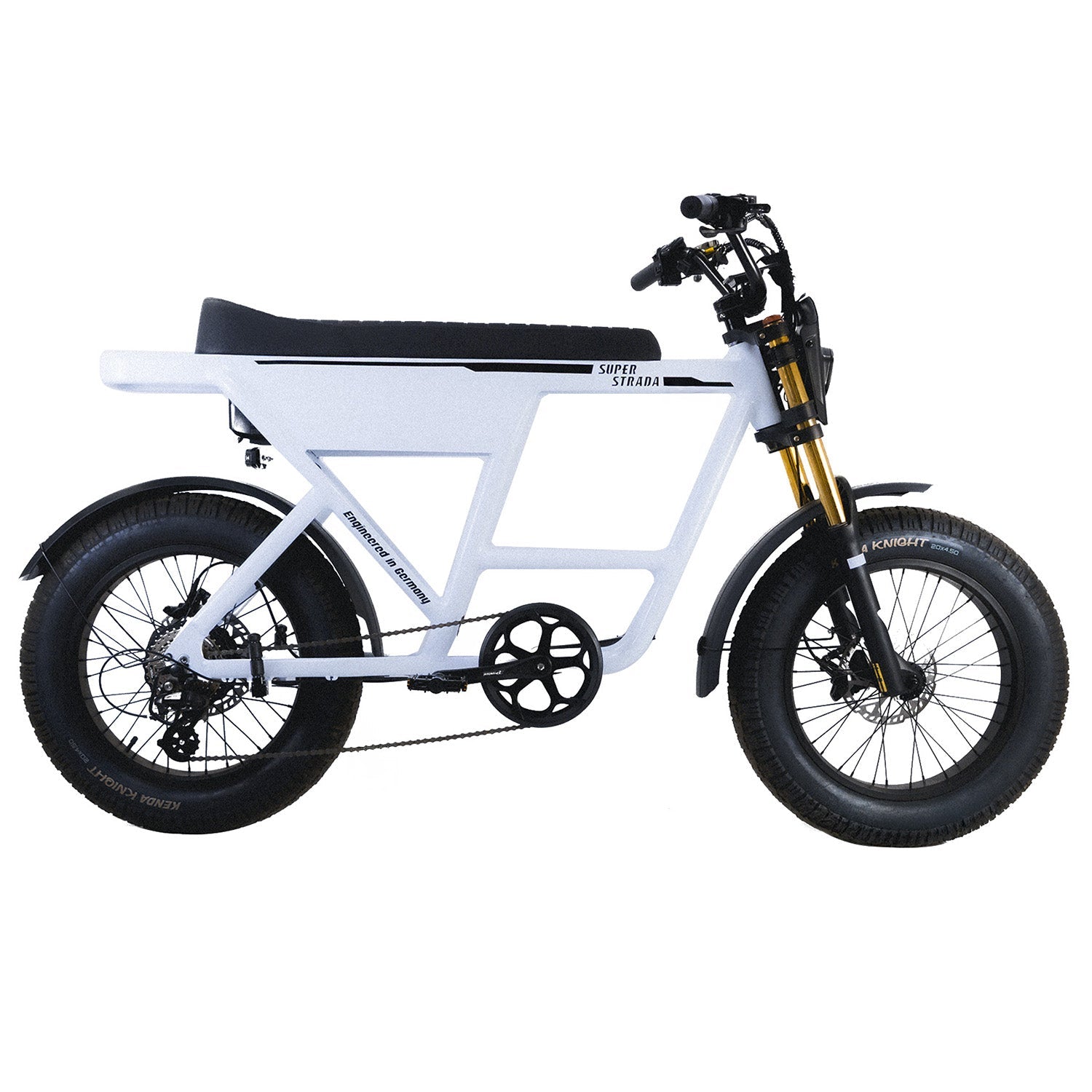

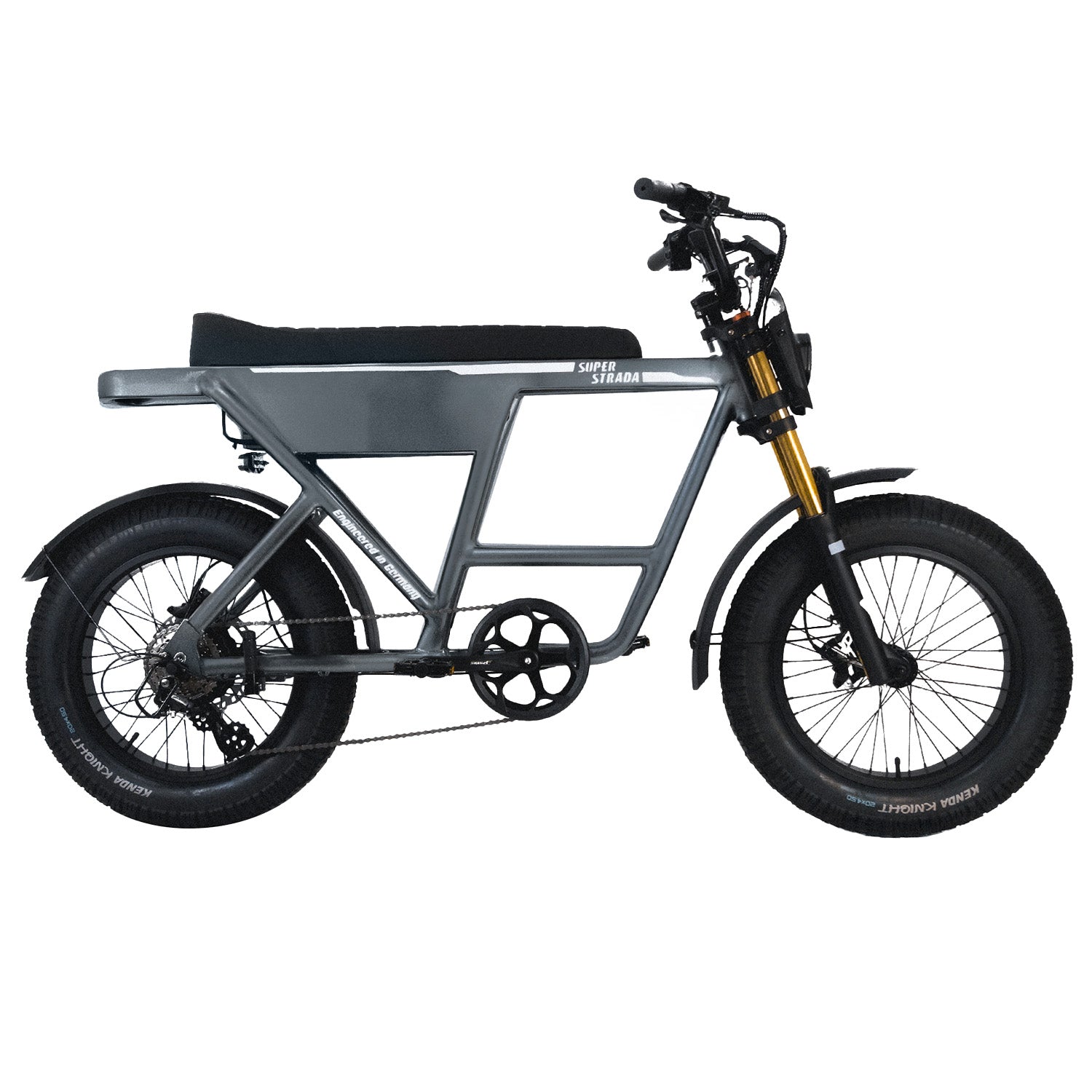

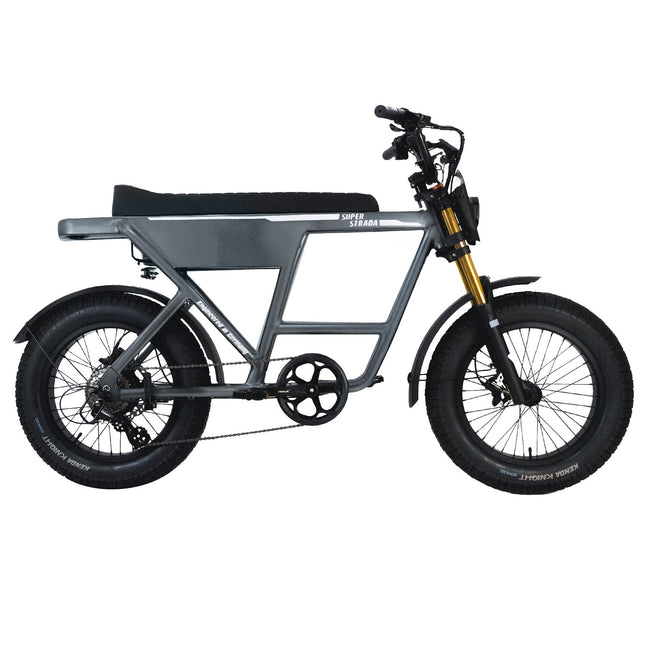

Elevate your riding experience with our Super Strada CRUZE e-bike, taking price in power, riding quality, and reliability this e-bike was designed to beat the competition in all three aspects.
Featuring a 48V - 750W SUPER STRADA tuned BAFANG motor and a 20Ah SS-PRO battery, the Cruze delivers extremely powerful performance and longer range for rides that is perfect for city commutes or weekend getaways. The CRUZE features a premium front suspension with gold coating, 4-piston hydraulic disc brakes, and Shimano Altus 8-speed shifting, along other top of the line features. This bike rides 2 people comfortably with plenty horizontal stability to ensure a smooth, reliable ride across various terrains.
Built with an ultra-light 6061 aluminum double-tube frame, this e-bike is rated for two riders, combining strength and versatility. The Super Strada X-large LCD color display keeps your ride metrics accessible, while integrated LED lights, turn signals, and a horn enhance safety and visibility. Available in Satin Anthrazite and White Gloss, the Cruze offers Class 2 functionality, upgradeable to Class 3, for speeds of up to 20 mph.
Optional rear racks, an extended bench seat, and utility features make the Super Strada Cruze the ultimate companion for your next adventure.
HIGHLIGHTS
POWER AND RELIABILITY. The 48V – 20Ah (960Wh) battery with a 750W motor delivers extended range, fast acceleration, and reliable power—perfect for daily tasks whenreliability is key.
STABILITY AND COMFORT. Super Strada’s high-end LAMBDA alloy frame construction was specifically designed to handle two adult riders safely and comfortably at all times.
SAFETY AND LONGEVITY. Safety and longevity are key design aspects of Super Strada. 4 piston hydraulic brakes, e-bike approved parts, *dual rear suspension and high output lights come standard.
UP TO DATE INFORMATION. The oversized color screen provides extra visibility. It allows fast uploads, reprogramming, and a USB port to charge your phone.
OPTIONS AND VERSATILITY. Models differ between types of drive train, suspensions, and battery size. Top safety features like brakes, tires, wheels, frame and motor are standard.
TECH SPECS
OVERVIEW: 20 wheels, motor: 48 V 750 W, SS-PRO battery: 20Ah, 4-piston hydraulic disc brakes, front suspension, Shimano Altus 8-speed shifting
COLORS: Available in 2 color options: Satin Anthrazite and White Gloss
FRAME: Ultra-light 6061 aluminum extra heavy-duty double tubes rated for 2 riders!
CLASS: Class 2
SPEED: 20 mph
MOTOR: 48 V 750 W Super Strada Bafang rear wheel hub motor
DISPLAY: Super Strada X-large LCD color display, 5 button controller, type-C USB port
BATTERY: 20.0Ah SS-PRO battery mounted under the seat, keyed, with slide out mechanism
REAR SUSPENSION: Rigid Frame
FRONT SUSPENSION: High-performance front suspension fork with premium gold coating for optimal slide performance
FRONT AXLE: e-Bike certified axle for safety
BRAKES: Super Strada 4-piston hydraulic brakes
DERAILLEUR: SHIMANO ALTUS 8-speed
LIGHTS: Super Strada front LED light with horn, plus rear LED brake light and turn signals
EXTRAS: Adjustable kickstand, foot pegs, heavy-duty utility rear for hauling, optional rear rack available, and an extended motorcycle bench with a higher seating position for enhanced comfort.
WHEELS: 20" e-Bike rated wheels double-wall alloy rims for added strength, stainless steel rust-resistant spoke nipples, and thorn-resistant tubes
TIRES: e-Bike speed and use rated Kenda Knight 4.0 x 20 (all black)
VIDEOS
Beach and Ride
Strada Dirt Track
Strada Showroom B-Roll

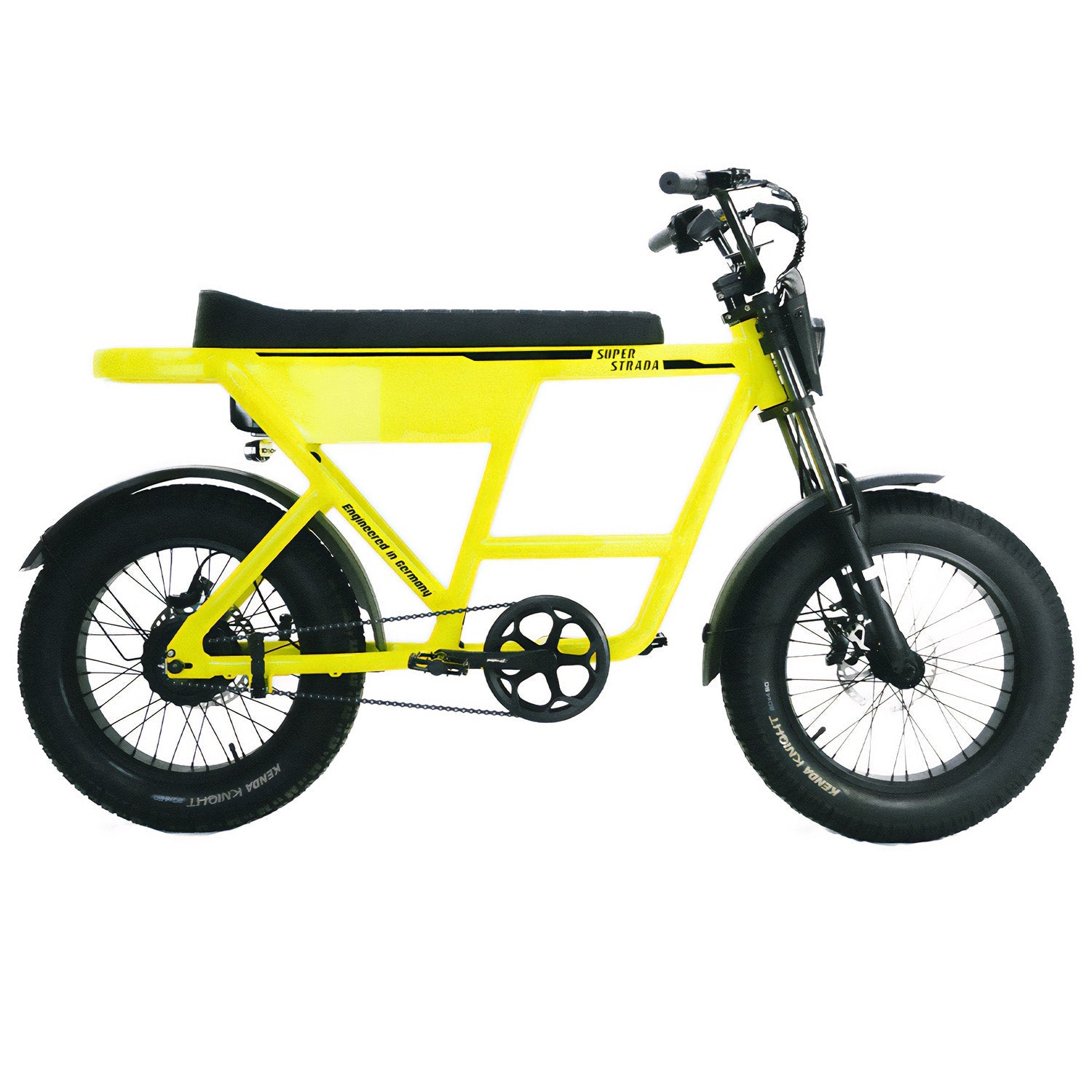

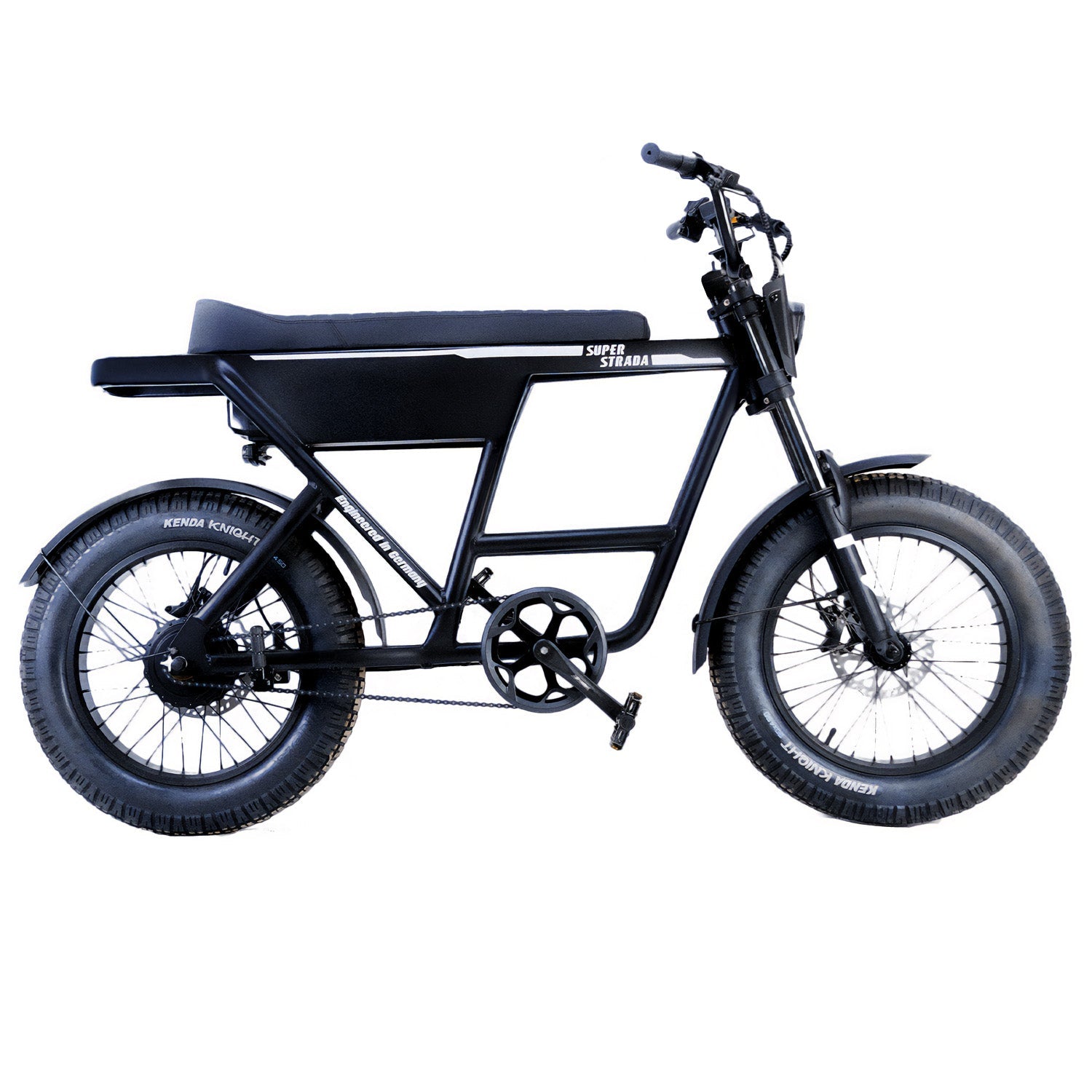

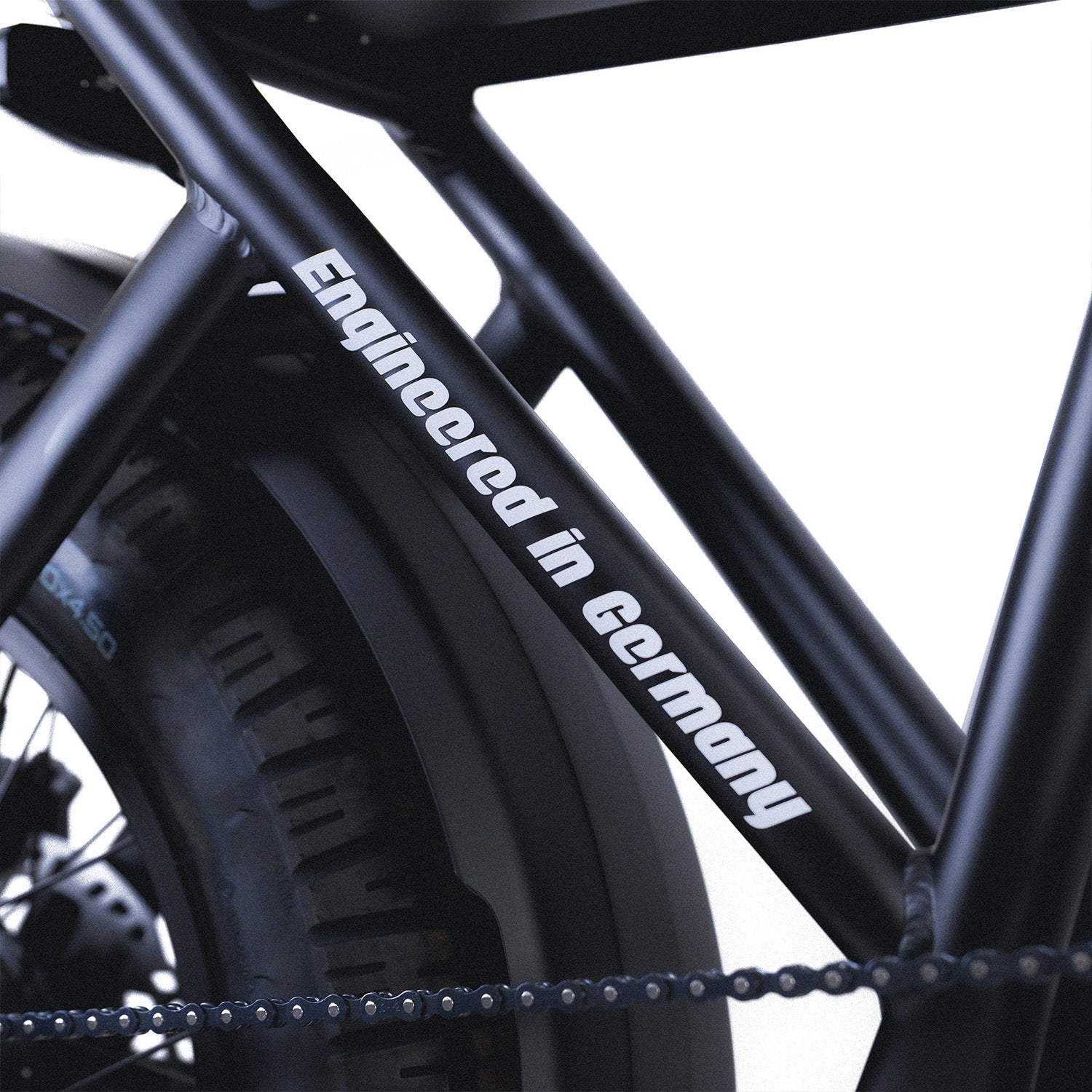

OVERVIEW

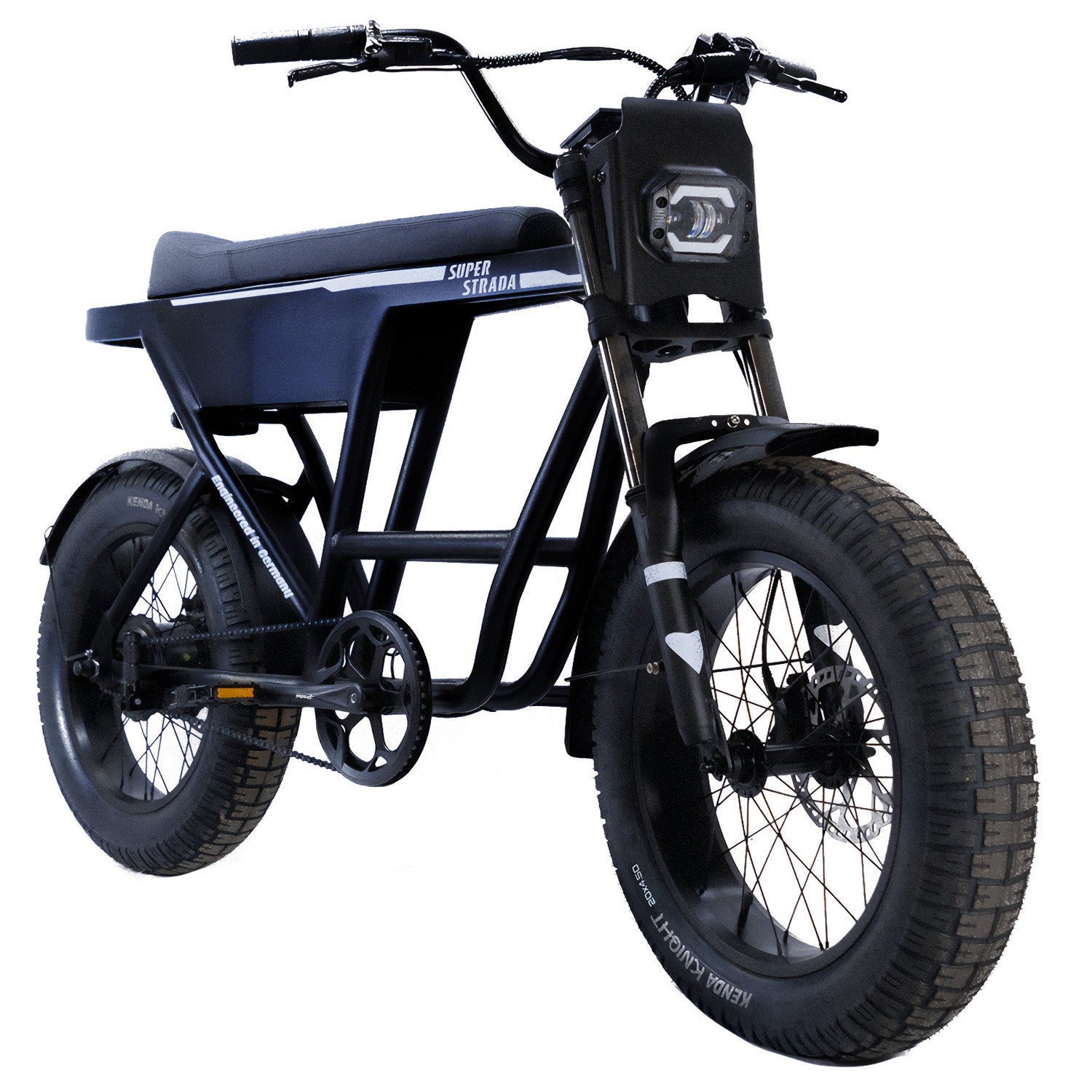

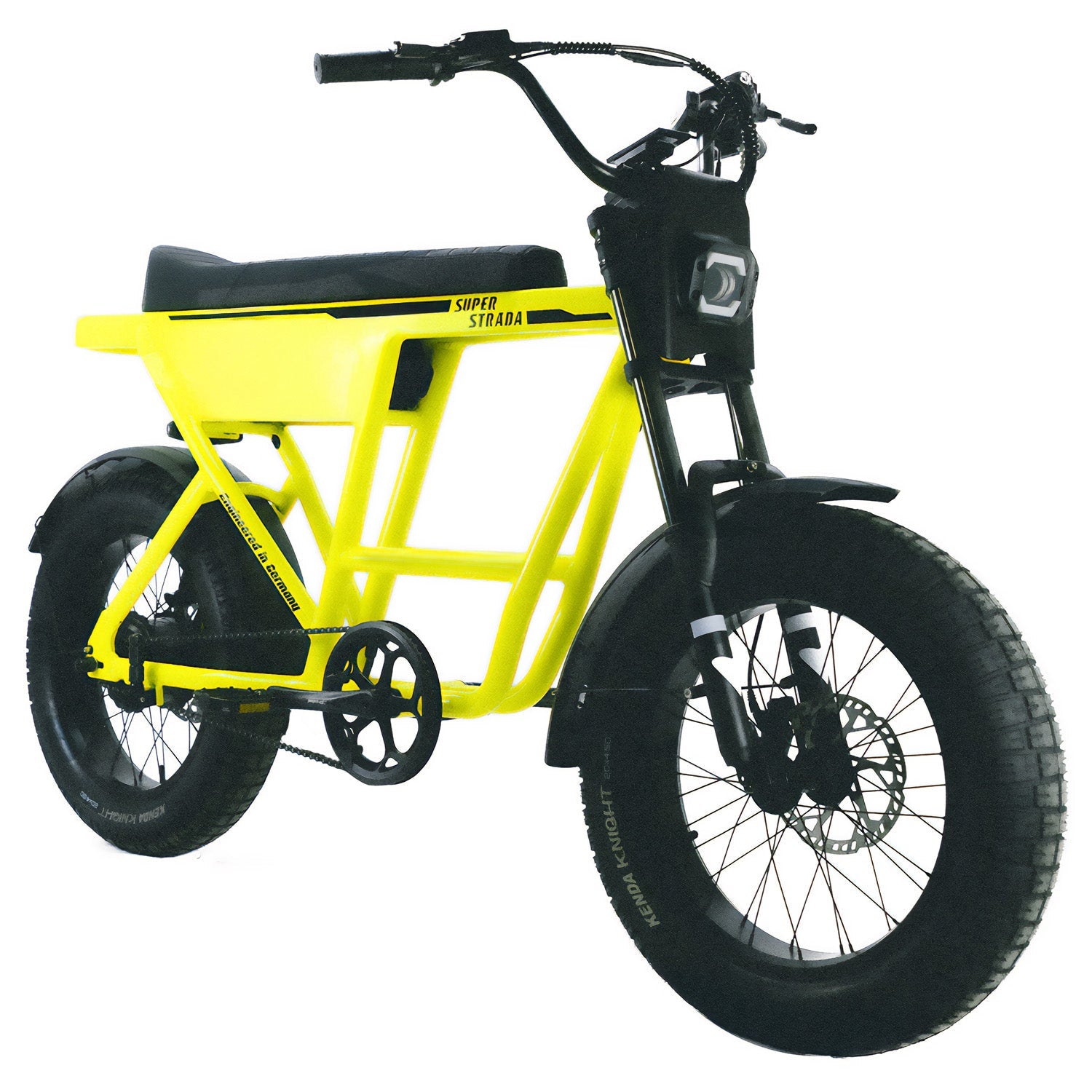

Unleash your ride with the Super Strada RAGE, an e-bike built for power and rugged performance.
Equipped with a 48V 750W motor and a 10.5Ah PRO battery, the Rage offers impressive acceleration and a top speed of 20 mph. The high-performance front suspension and 4-piston hydraulic brakes ensure a smooth, controlled ride, while the single-speed drivetrain simplifies gear shifting.
Crafted with an ultra-light 6061 aluminum frame rated for two riders, it supports up to 650 lbs. The Super Strada X-large LCD color display provides easy access to ride metrics, and integrated LED lights with turn signals keep you visible on the road. Available in Neon and Black Matte, the Rage is perfect for riders looking for power, style, and versatility in one e-bike.
Extras like a heavy-duty rear rack, foot pegs, and an extended motorcycle-style seat add comfort and convenience for any journey.
HIGHLIGHTS
POWER AND RELIABILITY. The 48V – 20Ah (960Wh) battery with a 750W motor delivers extended range, fast acceleration, and reliable power—perfect for daily tasks whenreliability is key.
STABILITY AND COMFORT. Super Strada’s high-end LAMBDA alloy frame construction was specifically designed to handle two adult riders safely and comfortably at all times.
SAFETY AND LONGEVITY. Safety and longevity are key design aspects of Super Strada. 4 piston hydraulic brakes, e-bike approved parts, front suspension and high output lights come standard.
UP TO DATE INFORMATION. The oversized color screen provides extra visibility. It allows fast uploads, reprogramming, and a USB port to charge your phone.
OPTIONS AND VERSATILITY. Models differ between types of drive train, suspensions, and battery size. Top safety features like brakes, tires, wheels, frame and motor are standard.
TECH SPECS
OVERVIEW: 20 wheels, motor: 48 V 750 W, PRO battery: 10.5Ah, 4 piston hydraulic brakes, front suspension, single speed
COLORS: Available in 2 color options: Neon and Black Matte
FRAME: Ultra-light 6061 aluminum extra heavy-duty double tubes rated for 2 riders!
CLASS: Class 2
SPEED: 20 mph
MOTOR: 48 V 750 W Super Strada Bafang rear wheel hub motor
DISPLAY: Super Strada X-large LCD color display, 5 button controller, type-C USB port
BATTERY: 10.5Ah PRO battery mounted under the seat, keyed, with slide out mechanism
REAR SUSPENSION: Rigid Frame
FRONT SUSPENSION: High-performance front suspension fork with standard build coating for optimal slide performance
FRONT AXLE: e-Bike certified axle for safety
BRAKES: Super Strada 4-piston hydraulic brakes
DERAILLEUR: Single speed
LIGHTS: Super Strada front LED light with horn, plus rear LED brake light and turn signals
EXTRAS: Adjustable kickstand, foot pegs, heavy-duty utility rear for hauling, optional rear rack available, and an extended motorcycle bench with a higher seating position for enhanced comfort.
WHEELS: 20" e-Bike rated wheels double-wall alloy rims for added strength, stainless steel rust-resistant spoke nipples, and thorn-resistant tubes
TIRES: e-Bike speed and use rated Kenda Knight 4.0 x 20 (all black)
VIDEOS
Beach and Ride
Strada Dirt Track
Strada Showroom B-Roll
NOTE:For inquiries, please call us at 805-850-3200.

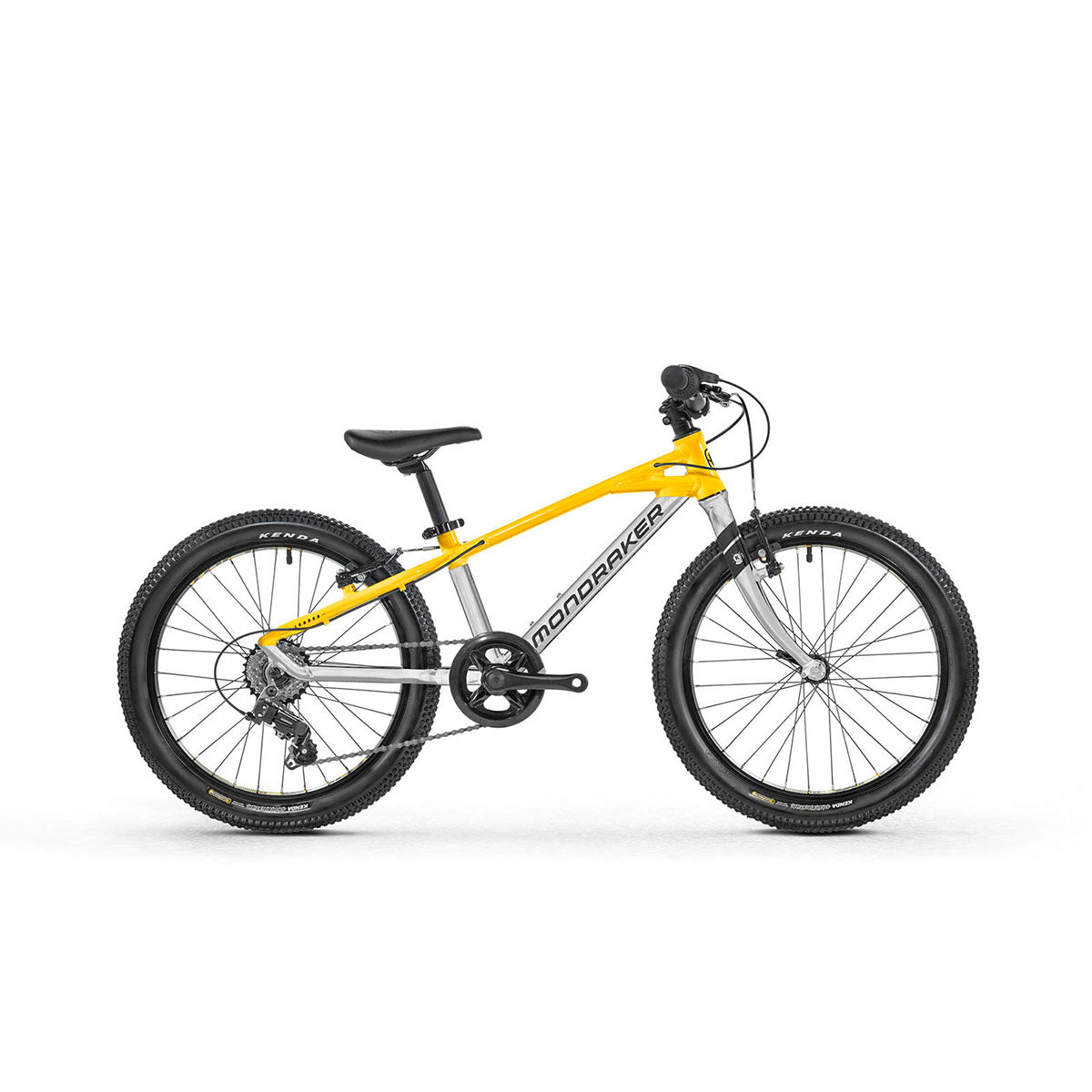

DESCRIPTION
Size: One size 260 mmColors: Gloss Racing Silver / Yellow
Young bikers can now start a taste of mountain biking with Leader 20! This kids’ sports bike is packed with mountain bike features tailored towards children who want to get started on trail-shredding rides.
The ultra-light stealth alloy EVO aluminium frame with an integrated headset and compact geometry helps with resistance and mobility for better speed and performance. Leader 20 sports high-performance rear derailleurs and 20” tires, for ultimate precision and grip through uneven and rough trails.
HHG Internal Cable Routing helps with a minimalistic, clean design with noise control features. Young riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible brakes.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
FRAME
Leader 20 7005 Alloy Stealth Evo, HHG internal cable routing, internal headset, replaceable hanger,BSA bottom bracket, QR 9mm rear axle
SIZES
One size 260mm
REAR SHOCK
-
SHOCK SETTINGS
-
FORK
MDK 20 Kid, Alloy stanchions, Chromoly steering tube
HEADSET
CH-9280, Internal ZS, 44mm external diameter cup
STEM
MDK XC, 6061 forged alloy, 25.4mm barbore, rise: 0°, length: 35mm
HANDLEBAR
MDK XC 1.0, 6061 alloy, rise: 25mm, width: 560mm, 9° backsweep, 5° upsweep, 25.4mm barbore
GRIPS
Onoff Diamond, 75mm
SEATPOST
MDK XC, 6061 T6 alloy, diameter 27.2mm, length 250mm, offset 15mm
SADDLE
Mondraker Leader Kids series
FRONT BRAKE
Tektro Alloy V-Brake
REAR BRAKE
Tektro Alloy V-Brake
BRAKE LEVER
Tektro 2-finger kids
RIMS
MDK-20 Alloy, 32 spokes
SPOKES
CN round stainless steel
FRONT HUB
Formula OV31FQR, 9x100mm QR axle, cup & cone ball bearings
REAR HUB
Formula OV31RQR, 9x135mm QR axle, cup & cone ball bearings
FRONT TIRE
Kenda Small Block Eight 20x2.1, single compound, 30TPI, wire bead
REAR TIRE
Kenda Small Block Eight 20x2.1, single compound, 30TPI, wire bead
CRANKSET
Prowheel, 140mm
RINGS
36T
BOTTOM BRACKET
CH-52
PEDALS
Wellgo LU-P28
CHAIN
KMC Z-7, 7s
FRONT DERAILLEUR
-
REAR DERAILLEUR
Shimano TY200-SS, super short cage, 7s
SHIFT LEVERS
Shimano RV200-7R, Revoshift, 7s
CASSETTE
Shimano TZ510-7, 14-28T, 7s
MOTOR
-
BATTERY
-
DISPLAY
-
DERAILLEUR HANGER
Mondraker M073
OTHERS
-
WEIGHT
-
GEOMETRY
MEASUREMENTS / GEOMETRY (Click on image to expand)
Size
20
A
Seat Tube Length
260 mm
B
Top Tube Length
440 mm
C
Bottom Bracket Drop
-15 mm
D
Bottom Bracket Height
240 mm
E
Chainstay Length
350 mm
F
Seat Tube Angle, Actual
71º
G
Seat Tube Angle, Effective
71º
H
Head Tube Angle
68º
I
Fork Offset
45 mm
J
Wheelbase
855 mm
K
Head Tube Length
100 mm
L
Reach
307 mm
M
Stack
386 mm
RESOURCES
Bike Size Guide (Click on image to zoom in)
Specs for all 2022 Bikes (Click to open in new window). Or download using the viewer below
OVERVIEW

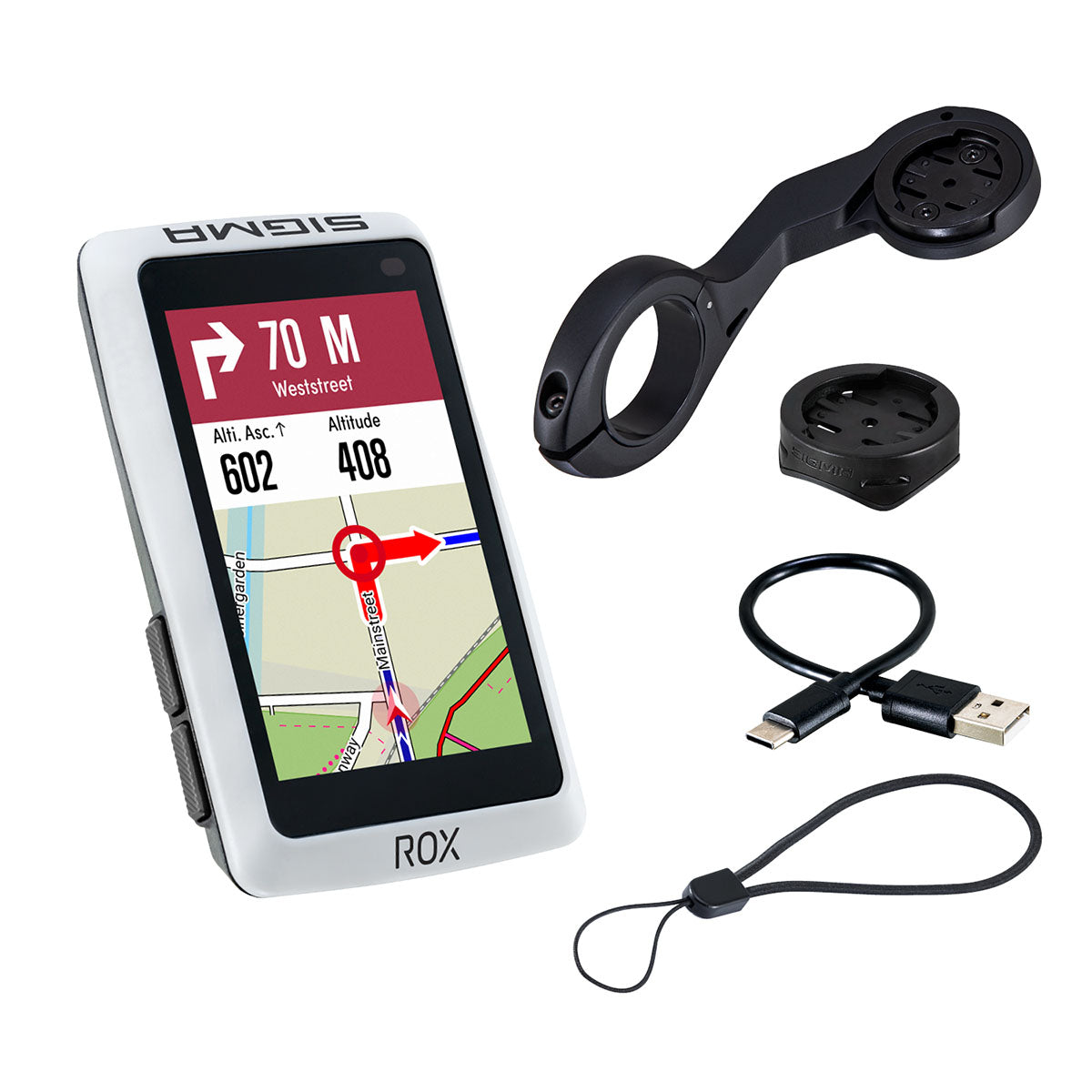

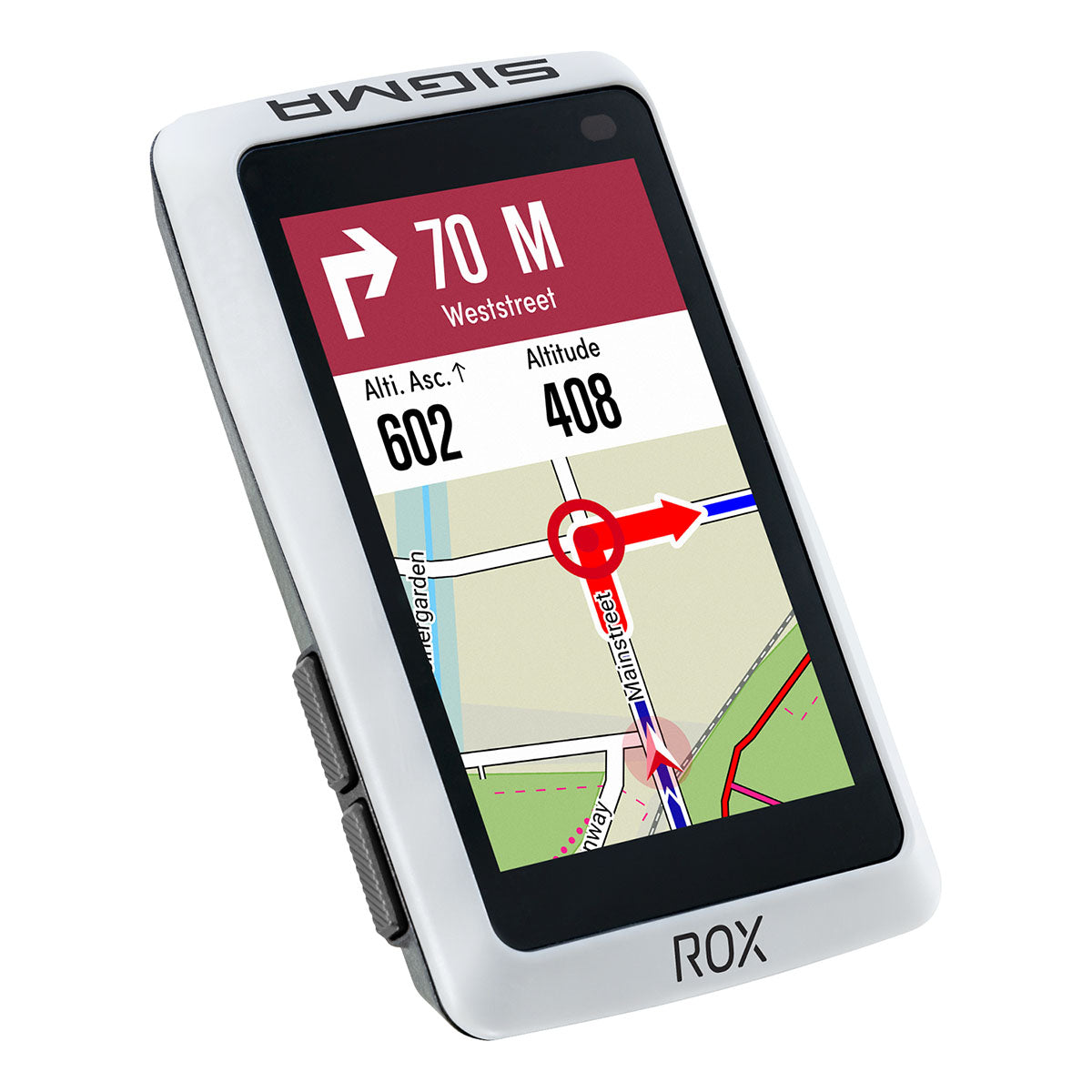

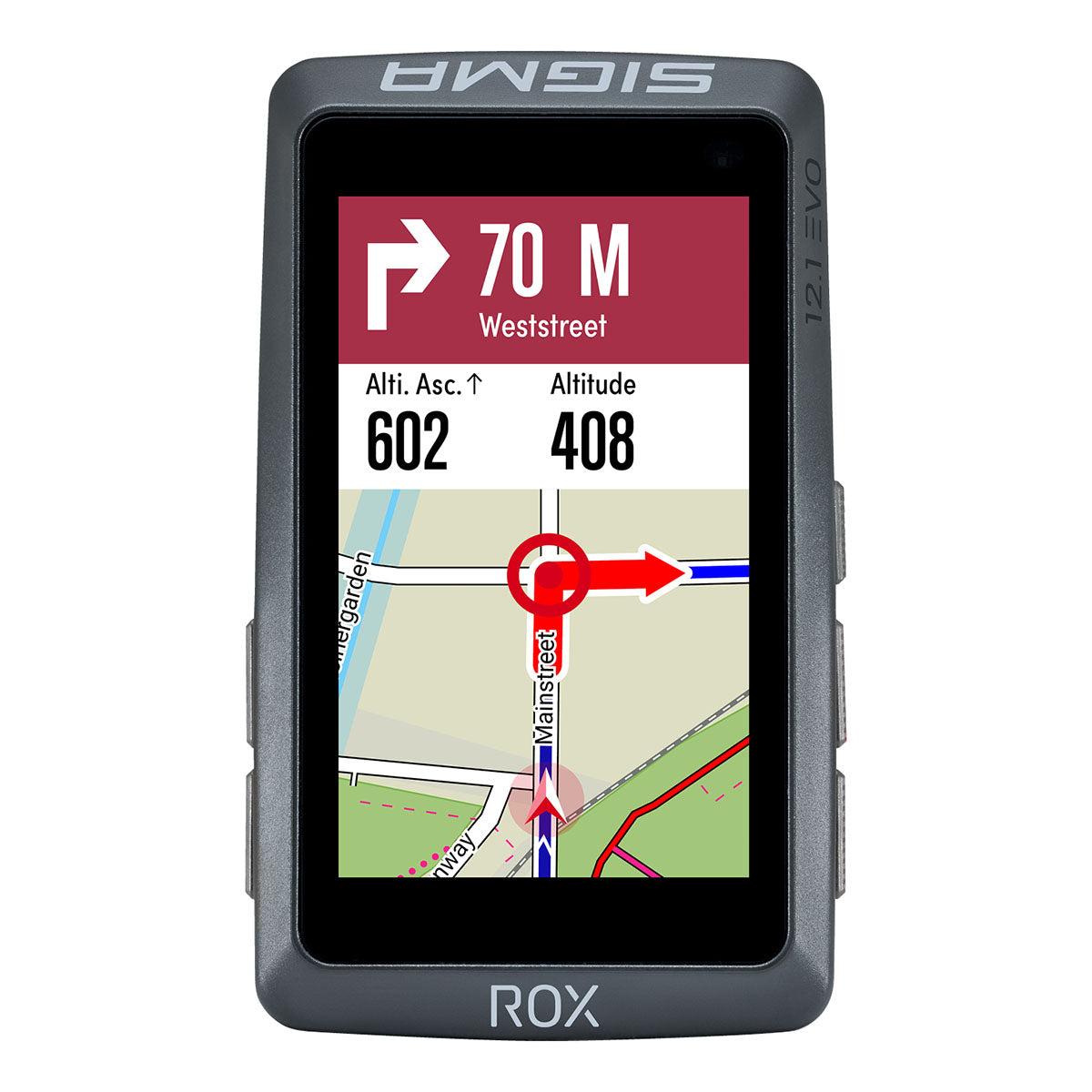

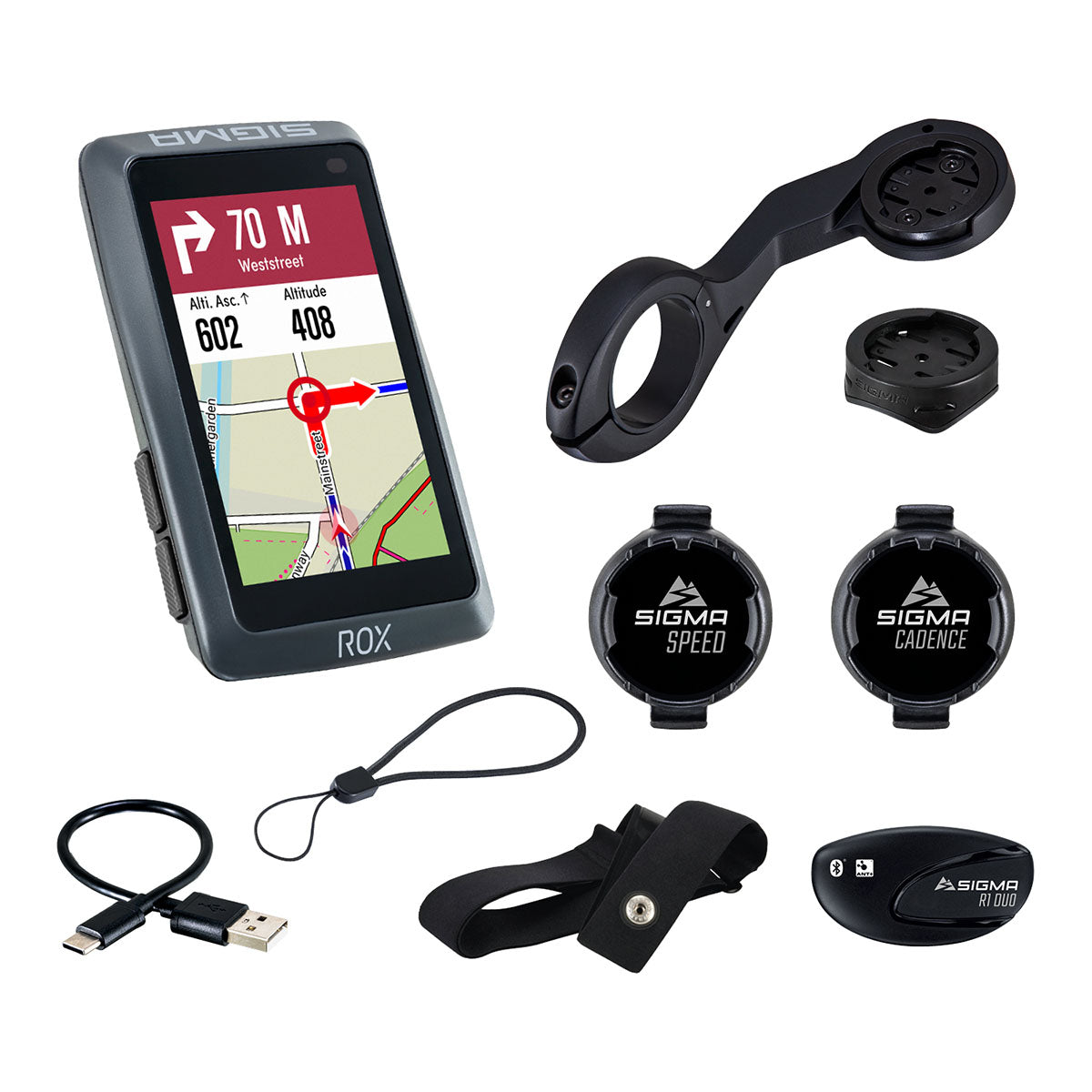

SIGMA ROX 12.1 EVO is a GPS bike computer with map navigation. Experience unlimited bike/e-bike adventure with the ROX 12.1 EVO! The user-friendly GPS bike computer is the navigation system for anyone who wants to discover the world. On forest floor, gravel, or asphalt, its multifaceted map navigation functions finds the best route for you to get to your destination. The ROX 12.1 EVO records extensive data for each and every ride, letting you take your training to a new level. “Made in Germany” innovation.
Inclusions: GPS Mount, Long-Butler GPS, USB-C Cable, Ant+/Bluetooth Heartrate Transmitter, Comfortex + Elastic Strap, Duo Magnetless Cadence, Duo Magnetless Speed,
HIGHLIGHTS
Innovative Map Navigation. The ROX 12.1 EVO with its innovative map navigation shows everyone the right way, whether MTB, road, gravel, touring or e-bike rider. Thanks to the pre-installed bike-specific OSM maps and the versatile routing options as well as the turnby-turn directions, everyone reaches their destination safely. If cyclists spontaneously deviate from the suggested route, the intelligent re-routing of the ROX 12.1 EVO plans a new route to the destination in a flash - including recalculation of the distance to the destination, the estimated time of arrival and the route plan, the distance to the destination, the estimated time of arrival and the altitude profile.Professional Training System. With the six predefined and 22 additional sport profiles, the the ROX 12.1 EVO is ready for any cycling adventure. Within the individual sport profiles, the training views, route preferences and alarms that can be customized directly on the ROX 12.1 EVO or in the SIGMA RIDE app are set. The SIGMA RIDE app can also be used to import Strava Live segments into the ROX 12.1 EVO and the user will then see them on the display. For optimal energy supply during competition and and training, the ROX 12.1 EVO reminds the user to food or drink whenever you want.
Made Entirely in Germany. From the initial idea to development and final production, the SIGMA ROX 12.1 EVO is 100% Made in Germany. German engineering stands for centuries of tradition and is characterised by precision, craftsmanship and durability. In addition, every product developer at SIGMA is also a passionate cyclist. Prototypes are tested right on the doorstep in Neustadt an der Weinstraße with the aim of creating the perfect product: For unadulterated joy on the bike.
Smart Connectivity. In addition to compatibility with the e-bike (incl. display of battery status, support level, range, etc.), the ROX 12.1 EVO can be connected with the SIGMA RIDE app as well as external sensors and apps from third-party providers. The integrated crash alarm notifies emergency contacts in case of a fall. Smart notifications inform you about incoming calls and messages while riding.Advanced Features for Best User Experience. The map can be displayed flexibly according to your needs and offers both large and small views. During navigation, the display shows the route and turn-by-turn directions. You can also call up your routes at any time, receive a good overview, synchronize them with your ROX 12.1 EVO, and head out. You can also plan your rides ahead of time wherever you are - desk, couch, anywhere. A unique feature also surprises the user with the "Draw my route" function, just draw one or more lines on the map and the Rox 12.1 EVO will create a suggested route for you.
FEATURES & FUNCTIONS
GeneralDimension (W x L x H): 57 x 95 x 21 mmMount compatibility: GPS Mount, Overclamp Butler, Long Butler GPSWeight: 110 gWater resistance: IP67Battery: 2400 mAh (Li Ion), 3.8 VDisplay size: 3.0"Resolution (pixel): 240 x 400Color display / Number of colors: 16 million colorsDisplay technology: TransflectiveTypical battery life: 14 HoursConnectivity: ANT+, BLE, WifiSensor technology: Cadence, Electronic shifting, Heart rate, Power meter, Radar, Remote, Rotor Powermeter (OCA/OCP), Smart Trainer (FE-C), SpeedAvailable langiages: CS-DE-EN-FT-IT-ES-NL-PL-PTOther: Touchscreen, Backlight, E-Bike Ready, Smart notifications
NavigationMap navigationTrack navigation Turn-by-turn navigationNumber of tracks on the device: Up to 100Back to starting point (Same track back)Address EntryCreating a route with multiple waypoints (up to 50 waypoints)Draw my route - function for faster route generationInput of coordinatesCreate/manage navigation featuresPOI Search
SensorsGPS GLONASS GALILEO Barometric altitude measurement Ambient light sensor Acceleration sensor
TrainingPreinstalled sport profiles: 6Individually adjustable sport profiles: Up to 20Individually adjustable training pages: Up to 6Individually adjustable number of training values per page: Up to 10Templates for training views: 30Colors to highlight the training values: 8Number of workouts on device: Up to 100 Alarms: Drinks, Food, Individual Lap function: Automatic (time / distance), Manual Target zone training: Cadence, Heart rate, Power, Speed Other: Workouts, Strava Live Segments, Crash Alert, Auto pause
Data AnalysisSIGMA RIDE AppMemory: up to memory is fullFile format: .fitUse the RIDE app to share to: Apple Health. Facebook, komoot, Strava, TrainingPeaks, Twitter, WhatsApp
Basic FunctionsSpeed Average speed Maximum speed Distance Training time (net) Training time (gross)SIGMA Performance Index Calories Date Clock (12/24 hrs)SunriseSunset
Altitude MeasurementCurrent altitude Gradient (in %) Rise rate Altitude graph Altitude uphill Maximum altitudeMaximum rise rateMaximum incline uphill Altitude downhillMaximum rate of descentMaximum gradientMinimum height
CadenceCadence Average cadence Maximum cadence
Heart RateCurrent heart rate Average heart rate Maximum heart rate Minimum heart rate Maximum heart rate (in % ) Average % max. heart rate Target zone Intensity zones Heart rate graph
PowerBalance Balance 10 sec - average Balance 3 Sec - average Balance 30 Sec - average Balance average Pedal smoothness Current power Power - %FTP Average power Power 3 sec - average Power 10 sec - average Power 30 sec - average Power - intensity factor Power - Max Power in Kilojoule (KJ) Normalized power Training Stress Score Power in Watt / KG Power zones Torque Effectiveness (--% / --%) Power graph Rotor Powermeter (OCA/OCP)
E-BikeRange E-bike battery Support (watt) Human Power vs. Motor Power Support level Gear indicator Light E-bike total distance E-bike total time
Indoor TrainingTrainer resistance Trainer mode Trainer target power
AUTOMATIC LAP FUNCTIONS (TIME OR DISTANCE BASED)Lap Number - AutoLap Lap time - AutoLap Distance - AutoLap Avg speed - AutoLap Maximum speed - AutoLap Calories - AutoLap Average altitude - AutoLap Maximum altitude - AutoLap Altitude uphill - AutoLap Altitude downhill - AutoLap Average incline uphill - AutoLap Average slope downhill - AutoLap Average rate of ascent - AutoLap Average rate of descent - AutoLap Average balance - AutoLap Average power - AutoLap Maximum power - AutoLap Normalized power - AutoLap Average cadence - AutoLap Maximum cadence - AutoLap Average heart rate - AutoLap Maximum heart rate - AutoLap Pedalling time - AutoLap Pedalling index - AutoLap Auto lap liste Altitude - AutoLap
MANUAL LAP FUNCTIONSLap Number - Lap Lap time - Lap Distance - Lap Avg speed - Lap Maximum speed - Lap Calories - Lap Average altitude - Lap Maximum altitude - Lap Altitude uphill - Lap Altitude downhill - Lap Average incline uphill - Lap Average slope downhill - Lap Average rate of ascent - Lap Average rate of descent - Lap Average balance - Lap Average power - Lap Maximum power - LapAverage cadence - Lap Maximum cadence - Lap Average heart rate - Lap Maximum heart rate - Lap Pedalling time - Lap Pedalling index - Lap Lap list - Lap
NAVIGATION FUNCTIONSTime to destination Estimated time of Arrival Distance to destination Heading Track Navigation Turning guidance Distance to the next waypoint
ELECTRONIC SHIFTINGBattery status Front gear (chain ring) Gear ratio Rear gear Di2 Shifting mode
STATUS FUNCTIONSCurrent temperature Minimum temperature Maximum temperature GPS Accuracy Device battery status Air pressure
TECH
VIDEOS
ROX 12.1 EVO - PRODUCT OVERVIEW
PARTS
Following can be purchased separately
Duo Magnetless Speed Transmitter
Duo Magnetless Cadence Transmitter
Comfortex+ Chest Strap
R1 Duo Comfortex+ transmitter incl. chest strap
GPS Mount for Rox 7/11, 2/4/11.1
Overclamp Butler for Rox 2.0 / 4.0 / 11.1 Evo
Ant+/Bluetooth Heart Rate Transmitter Evo
OVERVIEW
SIGMA ROX 12.1 EVO is a GPS bike computer with map navigation. Experience unlimited bike/e-bike adventure with the ROX 12.1 EVO! The user-friendly GPS bike computer is the navigation system for anyone who wants to discover the world. On forest floor, gravel, or asphalt, its multifaceted map navigation functions finds the best route for you to get to your destination. The ROX 12.1 EVO records extensive data for each and every ride, letting you take your training to a new level. “Made in Germany” innovation.
Inclusions: GPS Mount, Long-Butler GPS, USB-C Cable
HIGHLIGHTS
Innovative Map Navigation. The ROX 12.1 EVO with its innovative map navigation shows everyone the right way, whether MTB, road, gravel, touring or e-bike rider. Thanks to the pre-installed bike-specific OSM maps and the versatile routing options as well as the turnby-turn directions, everyone reaches their destination safely. If cyclists spontaneously deviate from the suggested route, the intelligent re-routing of the ROX 12.1 EVO plans a new route to the destination in a flash - including recalculation of the distance to the destination, the estimated time of arrival and the route plan, the distance to the destination, the estimated time of arrival and the altitude profile.Professional Training System. With the six predefined and 22 additional sport profiles, the the ROX 12.1 EVO is ready for any cycling adventure. Within the individual sport profiles, the training views, route preferences and alarms that can be customized directly on the ROX 12.1 EVO or in the SIGMA RIDE app are set. The SIGMA RIDE app can also be used to import Strava Live segments into the ROX 12.1 EVO and the user will then see them on the display. For optimal energy supply during competition and and training, the ROX 12.1 EVO reminds the user to food or drink whenever you want.
Made Entirely in Germany. From the initial idea to development and final production, the SIGMA ROX 12.1 EVO is 100% Made in Germany. German engineering stands for centuries of tradition and is characterized by precision, craftsmanship and durability. In addition, every product developer at SIGMA is also a passionate cyclist. Prototypes are tested right on the doorstep in Neustadt an der Weinstraße with the aim of creating the perfect product: For unadulterated joy on the bike.
Smart Connectivity. In addition to compatibility with the e-bike (incl. display of battery status, support level, range, etc.), the ROX 12.1 EVO can be connected with the SIGMA RIDE app as well as external sensors and apps from third-party providers. The integrated crash alarm notifies emergency contacts in case of a fall. Smart notifications inform you about incoming calls and messages while riding.Advanced Features for Best User Experience. The map can be displayed flexibly according to your needs and offers both large and small views. During navigation, the display shows the route and turn-by-turn directions. You can also call up your routes at any time, receive a good overview, synchronize them with your ROX 12.1 EVO, and head out. You can also plan your rides ahead of time wherever you are - desk, couch, anywhere. A unique feature also surprises the user with the "Draw my route" function, just draw one or more lines on the map and the Rox 12.1 EVO will create a suggested route for you.
FEATURES & FUNCTIONS
GeneralDimension (W x L x H): 57 x 95 x 21 mmMount compatibility: GPS Mount, Overclamp Butler, Long Butler GPSWeight: 110 gWater resistance: IP67Battery: 2400 mAh (Li Ion), 3.8 VDisplay size: 3.0"Resolution (pixel): 240 x 400Color display / Number of colors: 16 million colorsDisplay technology: TransflectiveTypical battery life: 14 HoursConnectivity: ANT+, BLE, WifiSensor technology: Cadence, Electronic shifting, Heart rate, Power meter, Radar, Remote, Rotor Powermeter (OCA/OCP), Smart Trainer (FE-C), SpeedAvailable langiages: CS-DE-EN-FT-IT-ES-NL-PL-PTOther: Touchscreen, Backlight, E-Bike Ready, Smart notifications
NavigationMap navigationTrack navigation Turn-by-turn navigationNumber of tracks on the device: Up to 100Back to starting point (Same track back)Address EntryCreating a route with multiple waypoints (up to 50 waypoints)Draw my route - function for faster route generationInput of coordinatesCreate/manage navigation featuresPOI Search
SensorsGPS GLONASS GALILEO Barometric altitude measurement Ambient light sensor Acceleration sensor
TrainingPreinstalled sport profiles: 6Individually adjustable sport profiles: Up to 20Individually adjustable training pages: Up to 6Individually adjustable number of training values per page: Up to 10Templates for training views: 30Colors to highlight the training values: 8Number of workouts on device: Up to 100 Alarms: Drinks, Food, Individual Lap function: Automatic (time / distance), Manual Target zone training: Cadence, Heart rate, Power, Speed Other: Workouts, Strava Live Segments, Crash Alert, Auto pause
Data AnalysisSIGMA RIDE AppMemory: up to memory is fullFile format: .fitUse the RIDE app to share to: Apple Health. Facebook, komoot, Strava, TrainingPeaks, Twitter, WhatsApp
Basic FunctionsSpeed Average speed Maximum speed Distance Training time (net) Training time (gross)SIGMA Performance Index Calories Date Clock (12/24 hrs)SunriseSunset
Altitude MeasurementCurrent altitude Gradient (in %) Rise rate Altitude graph Altitude uphill Maximum altitudeMaximum rise rateMaximum incline uphill Altitude downhillMaximum rate of descentMaximum gradientMinimum height
CadenceCadence Average cadence Maximum cadence
Heart RateCurrent heart rate Average heart rate Maximum heart rate Minimum heart rate Maximum heart rate (in % ) Average % max. heart rate Target zone Intensity zones Heart rate graph
PowerBalance Balance 10 sec - average Balance 3 Sec - average Balance 30 Sec - average Balance average Pedal smoothness Current power Power - %FTP Average power Power 3 sec - average Power 10 sec - average Power 30 sec - average Power - intensity factor Power - Max Power in Kilojoule (KJ) Normalized power Training Stress Score Power in Watt / KG Power zones Torque Effectiveness (--% / --%) Power graph Rotor Powermeter (OCA/OCP)
E-BikeRange E-bike battery Support (watt) Human Power vs. Motor Power Support level Gear indicator Light E-bike total distance E-bike total time
Indoor TrainingTrainer resistance Trainer mode Trainer target power
AUTOMATIC LAP FUNCTIONS (TIME OR DISTANCE BASED)Lap Number - AutoLap Lap time - AutoLap Distance - AutoLap Avg speed - AutoLap Maximum speed - AutoLap Calories - AutoLap Average altitude - AutoLap Maximum altitude - AutoLap Altitude uphill - AutoLap Altitude downhill - AutoLap Average incline uphill - AutoLap Average slope downhill - AutoLap Average rate of ascent - AutoLap Average rate of descent - AutoLap Average balance - AutoLap Average power - AutoLap Maximum power - AutoLap Normalized power - AutoLap Average cadence - AutoLap Maximum cadence - AutoLap Average heart rate - AutoLap Maximum heart rate - AutoLap Pedalling time - AutoLap Pedalling index - AutoLap Auto lap liste Altitude - AutoLap
MANUAL LAP FUNCTIONSLap Number - Lap Lap time - Lap Distance - Lap Avg speed - Lap Maximum speed - Lap Calories - Lap Average altitude - Lap Maximum altitude - Lap Altitude uphill - Lap Altitude downhill - Lap Average incline uphill - Lap Average slope downhill - Lap Average rate of ascent - Lap Average rate of descent - Lap Average balance - Lap Average power - Lap Maximum power - LapAverage cadence - Lap Maximum cadence - Lap Average heart rate - Lap Maximum heart rate - Lap Pedalling time - Lap Pedalling index - Lap Lap list - Lap
NAVIGATION FUNCTIONSTime to destination Estimated time of Arrival Distance to destination Heading Track Navigation Turning guidance Distance to the next waypoint
ELECTRONIC SHIFTINGBattery status Front gear (chain ring) Gear ratio Rear gear Di2 Shifting mode
STATUS FUNCTIONSCurrent temperature Minimum temperature Maximum temperature GPS Accuracy Device battery status Air pressure
TECH
VIDEOS
ROX 12.1 EVO - PRODUCT OVERVIEW
PARTS
Following can be purchased separately
Duo Magnetless Speed Transmitter
Duo Magnetless Cadence Transmitter
Comfortex+ Chest Strap
R1 Duo Comfortex+ transmitter incl. chest strap
GPS Mount for Rox 7/11, 2/4/11.1
Overclamp Butler for Rox 2.0 / 4.0 / 11.1 Evo
Ant+/Bluetooth Heart Rate Transmitter Evo
OVERVIEW

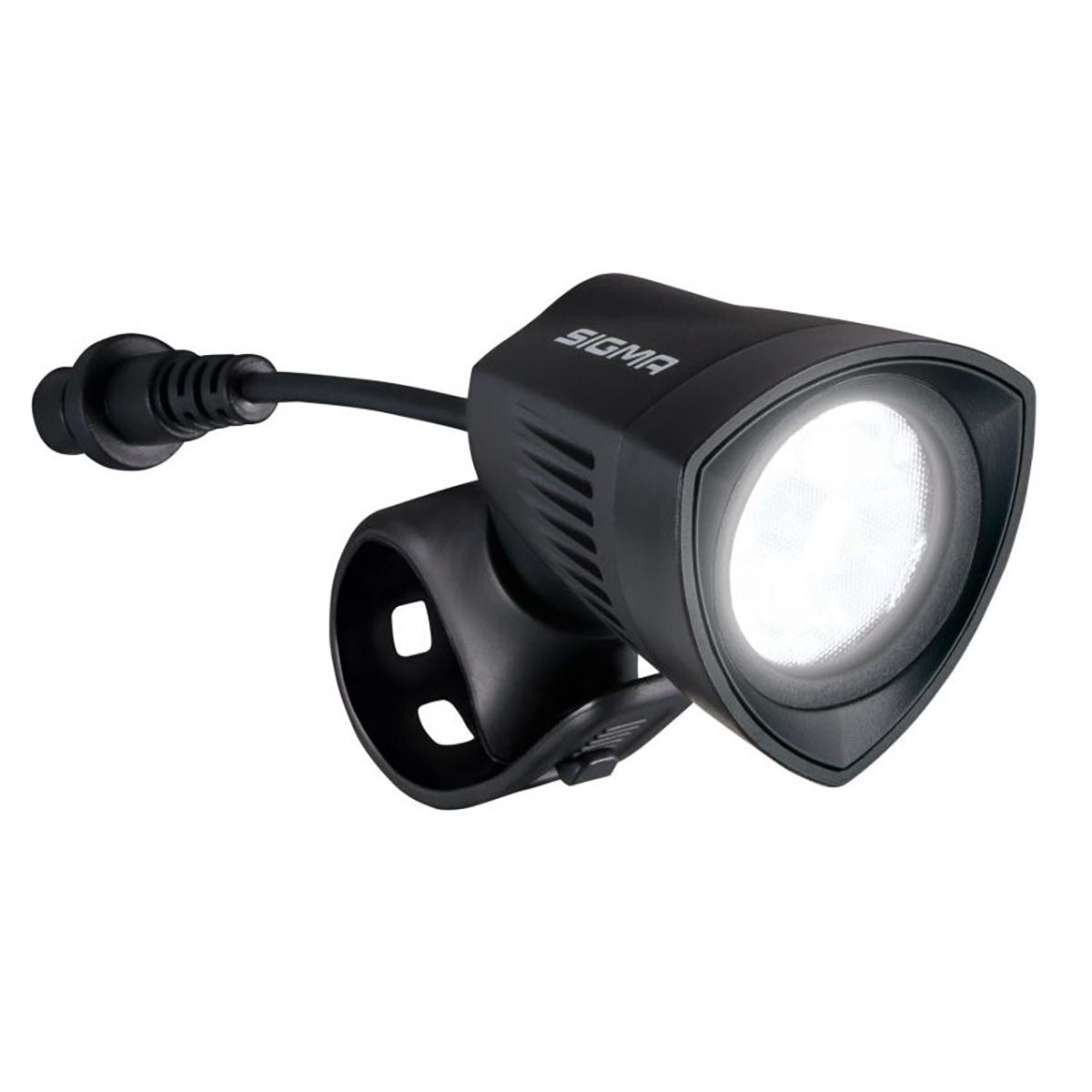

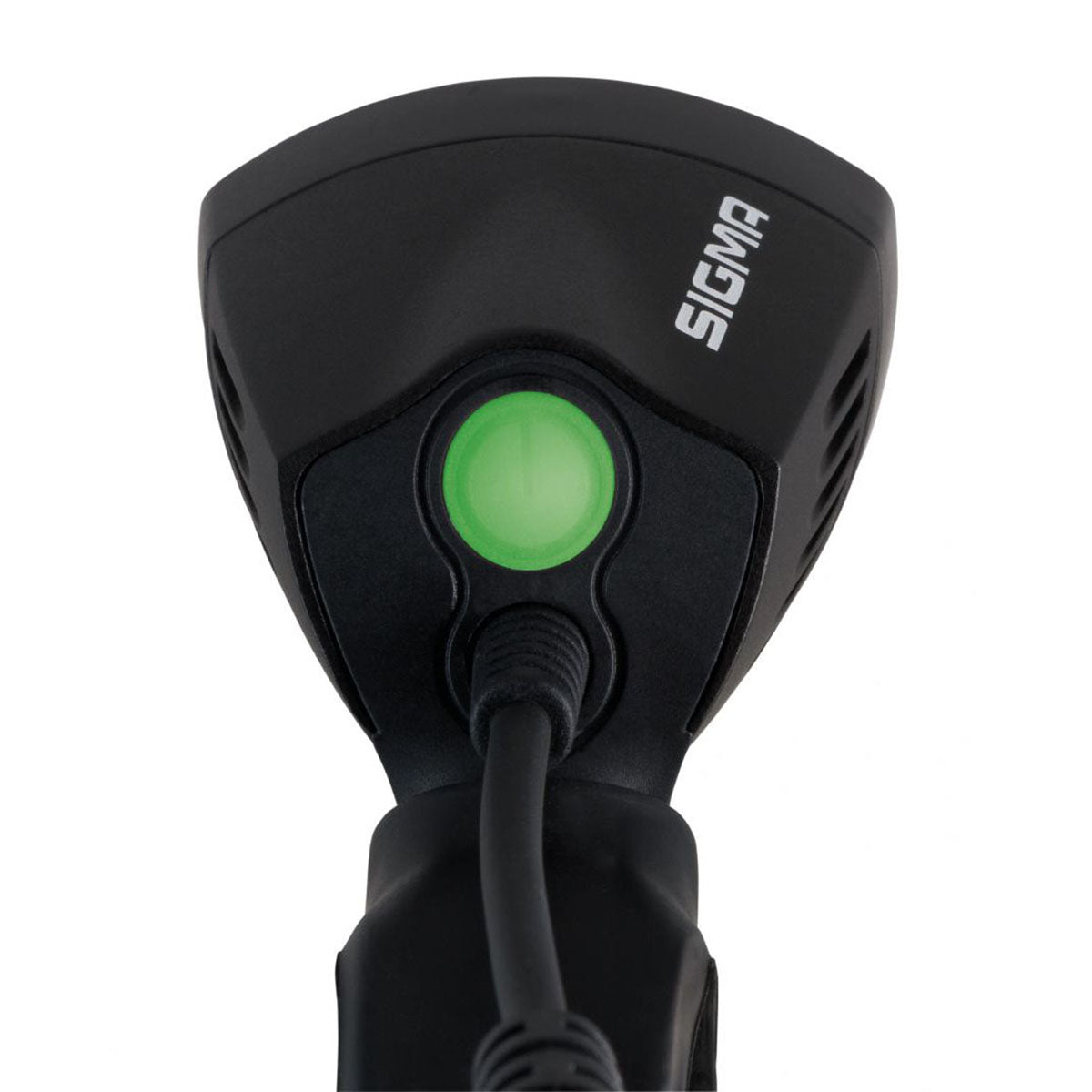

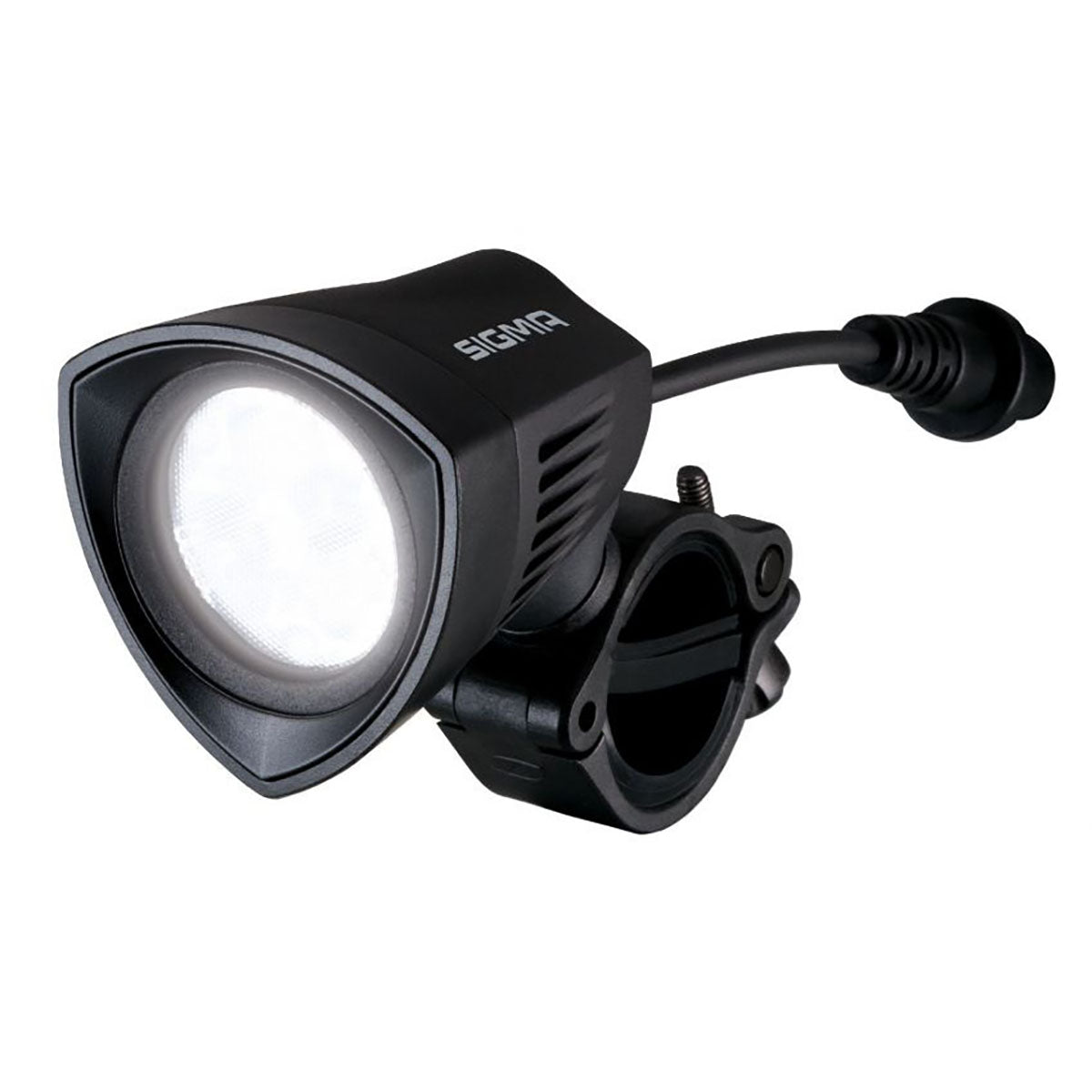

Sigma Buster 2000 power light is a very powerful lighting solution for bikers to stay visible and safe during night rides. Weighing as little as 125 gm, the 2000 lumen light comes with flexible mounting options to handlebars, helmets or action cam brackets. Buster 2000 is safe for outdoor use with a IP44 Splash rating.
Comes with a powerful 6400 MaH battery pack for easy recharging. Weighing just 344 gm, the battery pack is easy to take along, and works as a power bank to charge your bike computers, or smart phones via USB port.
Buster 2000 comes with a remote control that can be easily mounted to handlebar to control the lighting especially when mounted on helmets.
Buster 2000 (Sigma Item 17000) contents:Helmet bracket set, Adapter for action camera bracket, BUSTER battery pack, BUSTER 2000 remote, Extension cable, Screw-bracket, Charger
FUNCTIONS
Maximum light output: 2000 lumens
Beam range: 200 m
Seven light modes: high-power mode (2000 lm), power mode (1100 lm), standard mode (600 lm), eco mode (300 lm), flashing, fast flashing and
SOS-flashing mode
Burn time: 2.5 h (high-power mode), 5 h (power mode), 10 h (standard mode), 20 h (eco mode), 9 h (flashing), 11 h (pulsing), 10 h (SOS-flashing)
Switch on protection (double click for ON)
Splash resistant in accordance with IP44
Weight: 125 g
BATTERY PACK
6400 mAh (Panasonic cells)
Powerbank function: USB port for charging external devices
Power monitor: 4-stage LED capacity display
Charge time: 5 h
Splash resistant in accordance with IP44
Silicone straps for scratch-proof mounting on the frame
Weight: 344 g
REMOTE
Large fluorescent buttons
Tool-free mounting on the handlebar
Switch on protection (double click for ON)
Interference-free 2.4 GHz tranmission
Splash resistant in accordance with IP44
Weight: 14 g
ACCESSORIES
Buster 2000 Set Helmet bracket set, Adapter for action camera bracket, BUSTER battery pack, BUSTER 2000 remote, Extension cable, Screw-bracket, Charger.
Following accessories can be purchased separately:
00145 Silicone Mount
00460 Spare Screw-Bracket Mount
00467 Helmet Bracket Set
17002 Buster 2000 Remote
00461 Adapter for Action Camera Bracket
17004 Buster Battery Pack
17005 Charger for Battery Pack
270310 Lighium Battery CR 2025 for Buster 2000 Remote

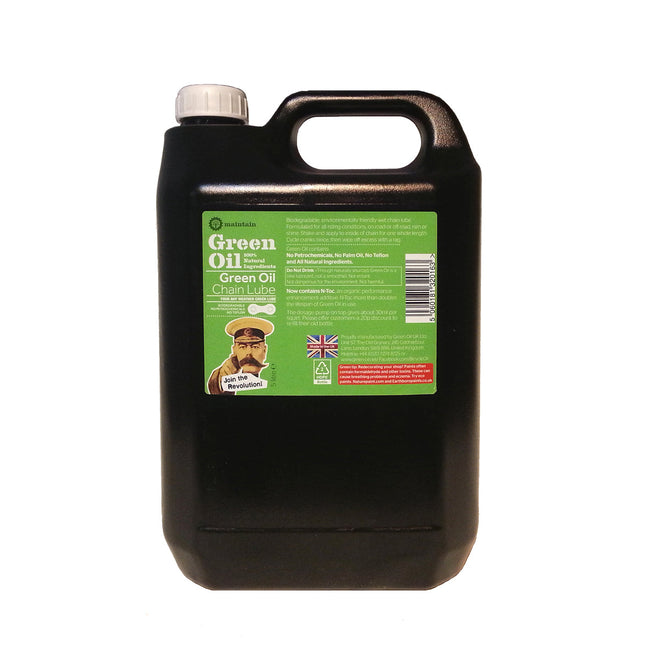

Any Weather Wet Lube, Eco Friendly, 100% Biodegradable...
ABOUT
Green Oil Wet lube is a great lubricant that will protect your bike by reducing friction, wear, and rust. Urban riders, as well as mountain bikers, will enjoy the smoother and faster gear transitions and efficient rides. The bottle comes with an extra-long nozzle for penetration and protection of hard to reach areas. Versatile Wet lube can be used for other applications like cables, brake levers, snowboard binders, etc.Green Oil Lube offers excellent friction-busting properties in wet and snowy conditions, making it a great choice for rainy day rides or snowy trails. Though made without PTFE or PFOA, the formula offers excellent performance close to the petrochemical equivalent lubes in the market. The special plant-based formula does not freeze in cold and stays effective at temperatures as low as -11 degrees celsius.Clean the chain by removing any residual lube and any dust or debris. With the secured cap closed, shake the bottle. Then remove the cap and start applying on the chain. Crank the chain a few times for the coating to spread evenly. Wipe off excess oil from outside of the chain, except during snowy conditions where the extra layer can be helpful for protection from salt. Special plant-based ingredient N-Toc offers durable performance, for up to 125 miles of use between applications.Green Oil's eco-friendly formula made completely with natural plant-based formula, free of palm oil and harmful petrochemicals, is gentle on your surroundings. With its recycled plastic bottle packaging, the wet lube does not leave harmful traces in the environment. The advanced wet lube formula is also skin-safe.Use: Wet lube for road bikes, mountain bikes, e-bikes, kids' bikes
Recommended for: Commuters or mountain bikers, in wet or dry riding conditions
Packaging: 5000 ml Shop size. Also available in 100 ml recycled bottle and Available in 20 ml "On Tour" size.
HIGHLIGHTS
Prevents rust
Reduces wear
All conditions lube
125 + Miles between applications
PTFE free and 100% biodegradable
USAGE TIPS
Apply to the inside of your chain for one length, spin the cranks. Wipe off excess with a rag to keep the chain nice and clean - you only need the oil between the links where the friction occurs.
GREEN FACTS
Made with natural, plant based ingredients only
Does not contain PTFE or other harmful chemicals like other lubes
Free of petrochemicals, which usually harms aquatic life
100% biodegradable, hence does not leave harmful remnants on ground or water
Bottle made from 100% recycled plastic
Skin safe, eco friendly bike lube for bearings and other non moving bike parts...
Overview

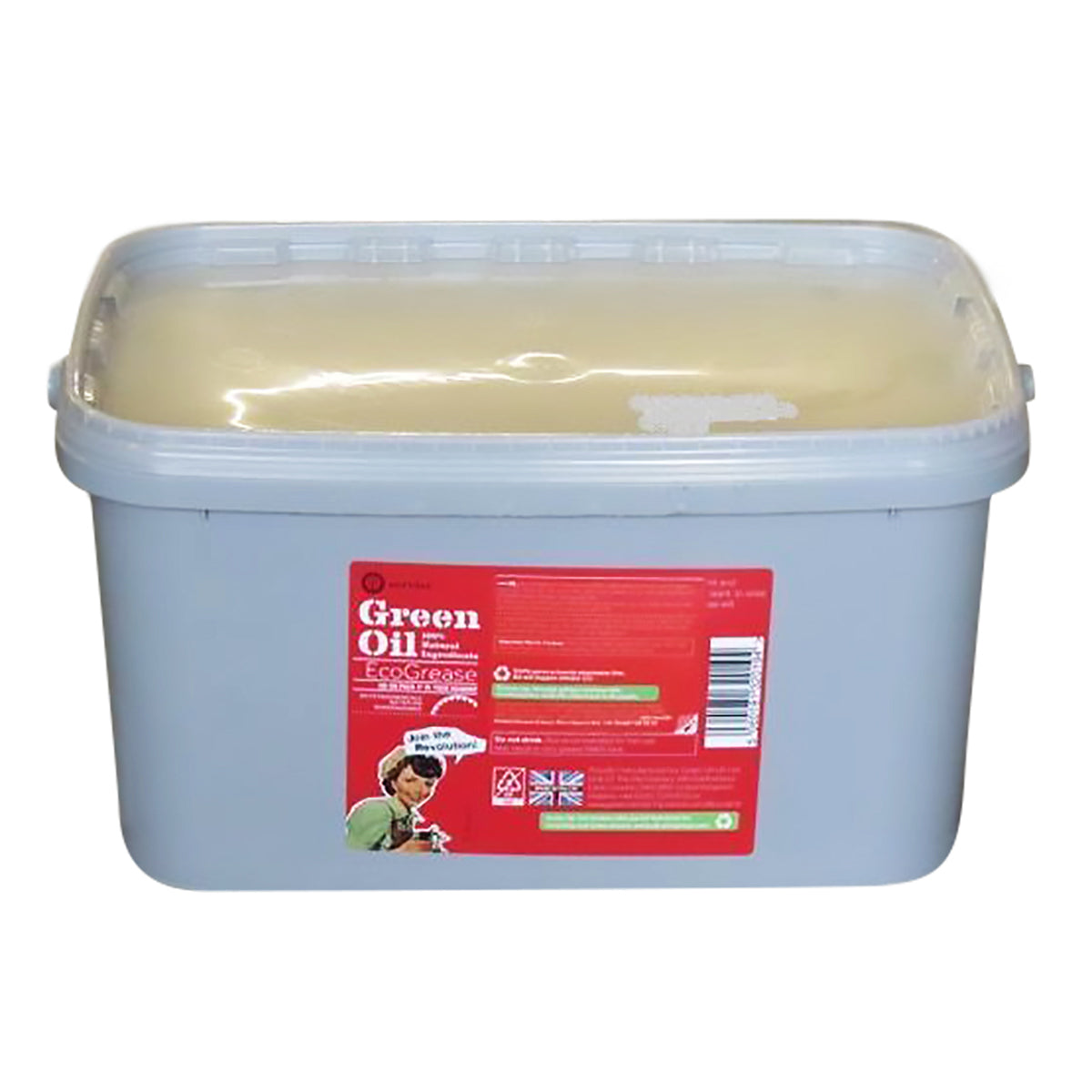

Green Oil Ecogrease is a smooth and powerful lubricant that will protect threaded components by reducing friction, wear, and rust. Riders and bikers will enjoy the smoother and faster transitions and efficient rides. Grease comes in an easy to dispense tube made of 100% recycled plastic. Versatile Ecogrease can be used on bike headsets, threaded brackets, wheel bolts, seat posts, quick release pins, pivots, etc to name a few.Green Oil Ecogrease offers excellent friction-busting properties that will last through outdoor weather elements for a long time. Though made without PTFE or PFOA, the formula offers excellent performance close to the petrochemical equivalent grease in the market.Green Oil's eco-friendly formula made completely with natural plant-based formula, free of palm oil, PTFE, PFOA, and harmful petrochemicals, is gentle on your surroundings. With its recycled plastic bottle packaging, the grease does not leave harmful traces in the environment. The advanced eco formula is also skin-safe.Use: Grease for mechanical parts with little or no movement
Recommended for: Commuters or mountain bikers, in wet or dry riding conditions
Packaging: 5000 ml Tub.
Usage Tips
How to use Ecogrease?
The first formula of Ecogrease was a little thinner, but its now thicker and more durable. We therefore recommend taking the whole cap off to squeeze it out.
Videos
Green Facts
How is Ecogrease green?
It contains only natural ingredients
Ecogrease contains no PTFE or petrochemicals.
The bottle is made from 100% recycled plastic
DEGREASE WITHOUT REMOVING THE CHAIN
ABOUT
Green Oil Degreaser Jelly is a deep cleansing agent that will clean your bike by removing the build-up of oil, grease, mud, and grime. Urban riders, as well as mountain bikers, can enjoy the smoother and faster gear transitions and efficient rides. The bottle comes with an easy to remove snap-cap for ease of use.Green Oil Degreaser offers excellent grease-busting properties, for deep cleaning of bike chains for enhanced pedaling efficiency. Though made without PTFE or PFOA, the formula offers excellent performance close to the petrochemical equivalent cleansers in the market.You can easily clean the chain without removing it from the bike. The sticky formula can be applied to the chain and left for a few minutes so it can work on the removal of grease and other build-ups. Follow up with wiping off with a dry rag and then a wet rag or a brush scrub for complete cleaning. Optionally you can dilute the jelly with water to make a chain bath, where you will leave the chain to soak for 2-4 hours. The versatile jelly can also be diluted further to create a generic bike cleaning solution. Degreaser Jelly is so flexible that you can apply a coating of it to the chain and secure on the upper layer of dishwasher and run a regular cycle with other dishes.Green Oil's eco-friendly formula made completely with natural plant-based formula, free of palm oil and harmful petrochemicals, is gentle on your surroundings. With its recycled plastic bottle packaging, the degreaser does not leave harmful traces in the environment. The advanced degreaser formula is also free of harmful aerosol agents.Use: Degreaser to clean bike chains
Recommended for: Commuters or mountain bikers, e-bikes and kids' bikes
Packaging: 5000 ml / 5 liter / 1.32 Gallons recycled bottle. Available in 100 ml size.
USAGE TIPS
Why clean your chain?Layer upon layer of chain lube can build up into a mess. Pollution in the air can pollute your chain, and mud and road dirt can also make it dirty. A clean chain with oil can be over 99% efficient.
How to use Clean Chain
1. Apply liberally to the chain
2. Ride the bike for a minute or less to work it in, shifting through the gears3. Next, wipe the chain hard with a dry rag4. Then, wipe or scrub down again with a wet rag or Green Oil Bicycle Brush. (It helps to do this on the top part of the chain, keeping the chain tight by holding the cranks in place)5. Rinse thoroughly with water. A good way is to pour a watering can onto the chain, whilst turning the cranks backwards. 6. Leave to dry, or dry with an old towelYou can also use 30ml Clean Chain and 60ml water mixed together in a chain bath. This is where you take the chain off the bike, and leave it in a small but of this solution for 2-4 hours. Then wipe clean. The same mix can be used in a chain cleaning devise, up to 1 part Clean Chain to 3 parts water. Clean Chain can also be mixed with 900ml water to make a whole litre of Green Clean bike cleaner!
VIDEOS
GREEN FACTS
Other degreasers often boast about their orange content. However, they are often petroleum based, with a hint of orange. 'Greenwash' they like to call it. Moreover, many use aerosol cans with harmful propellants, and packaging that is difficult to recycle.
Clean Chain degreaser's formula is 100% natural ingredients
Its bottle is 100% recycled plastic, and easily recyclable
Clean Chain is totally biodegradable after its life on your bike
It won't damage your skin
Clean Chain doesn't contain any petrochemicals. We use a special detergent made from coconut oil, orange peel extract, which is a by product of the organic orange juice industry, and other plant based ingredients for powerful degreasing performance.

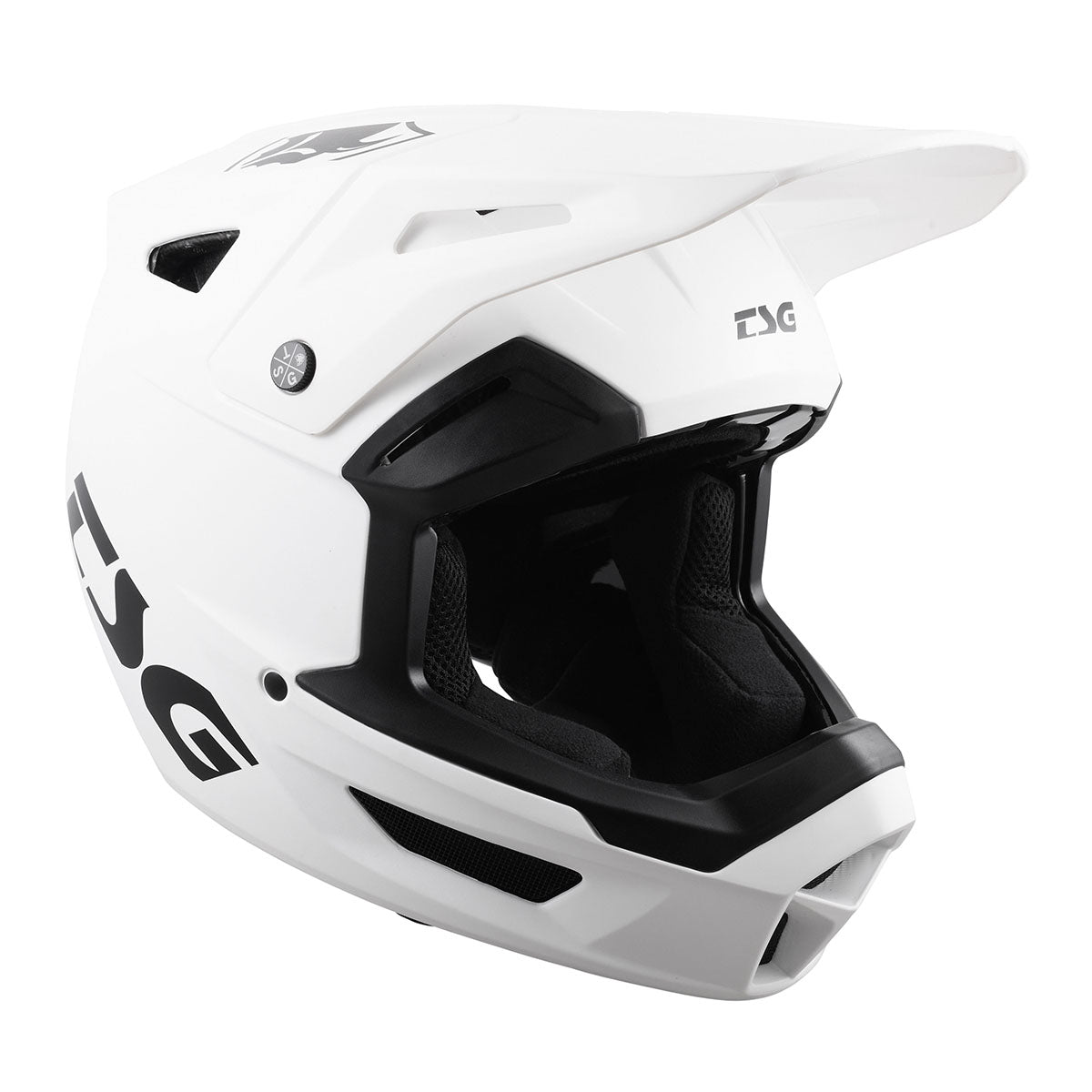

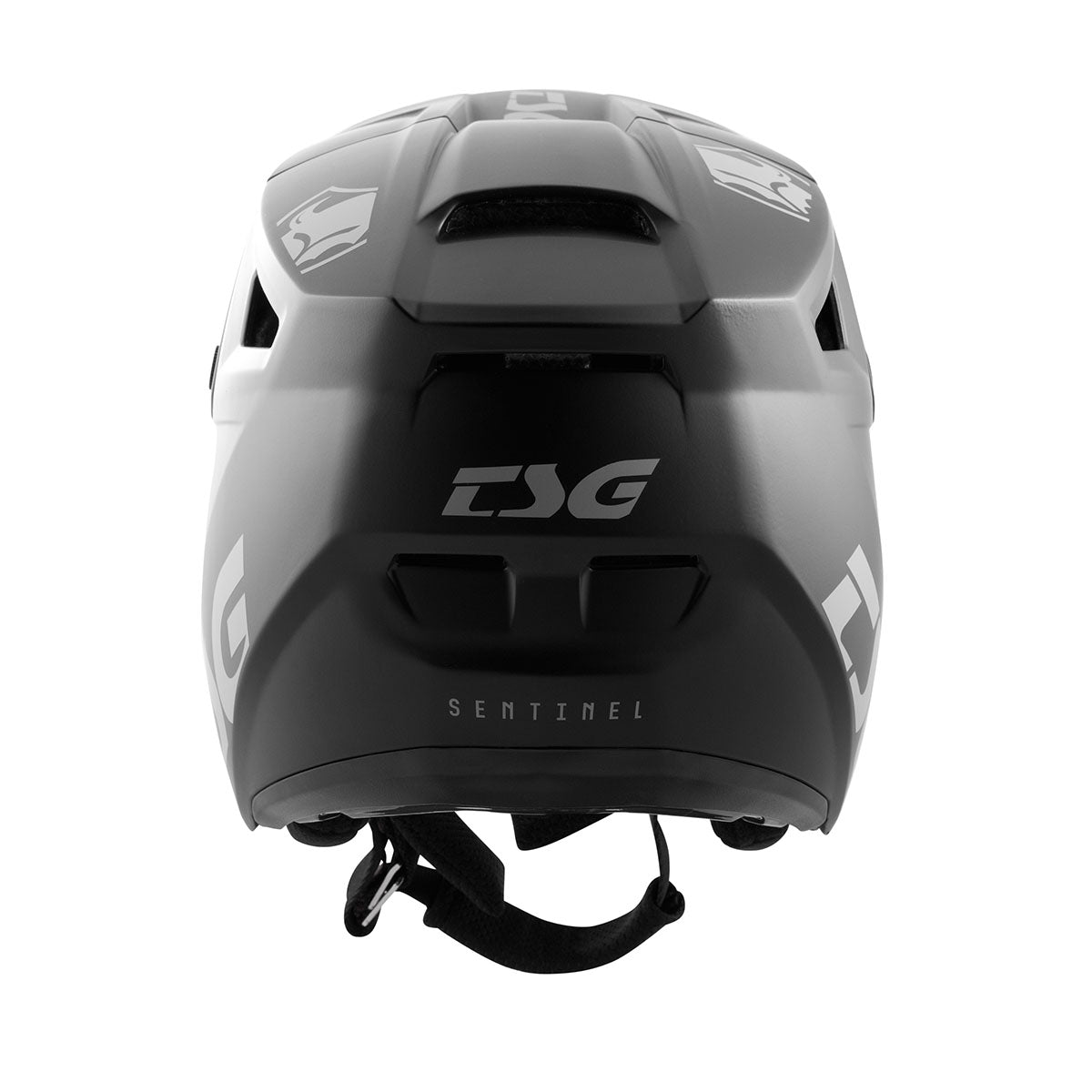

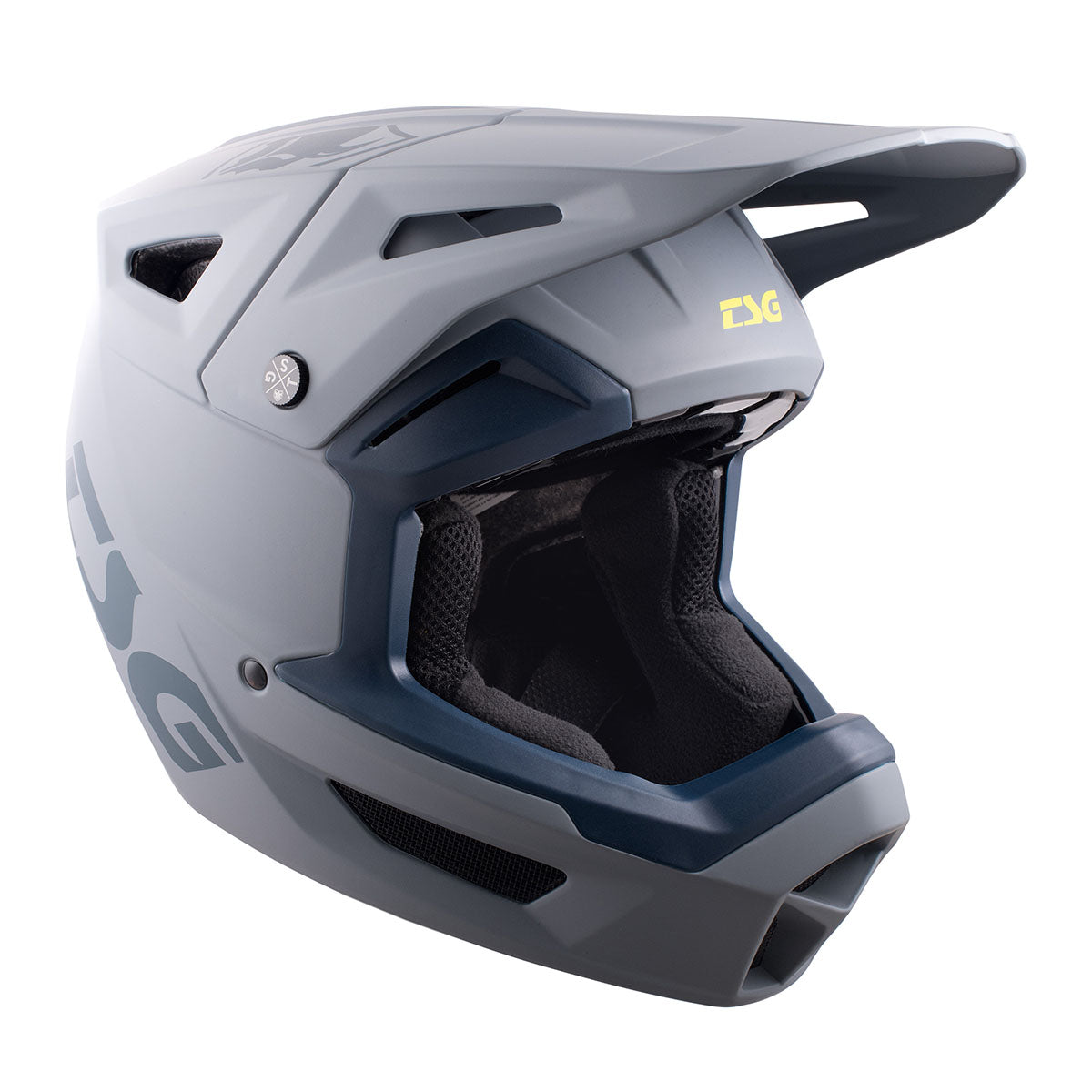

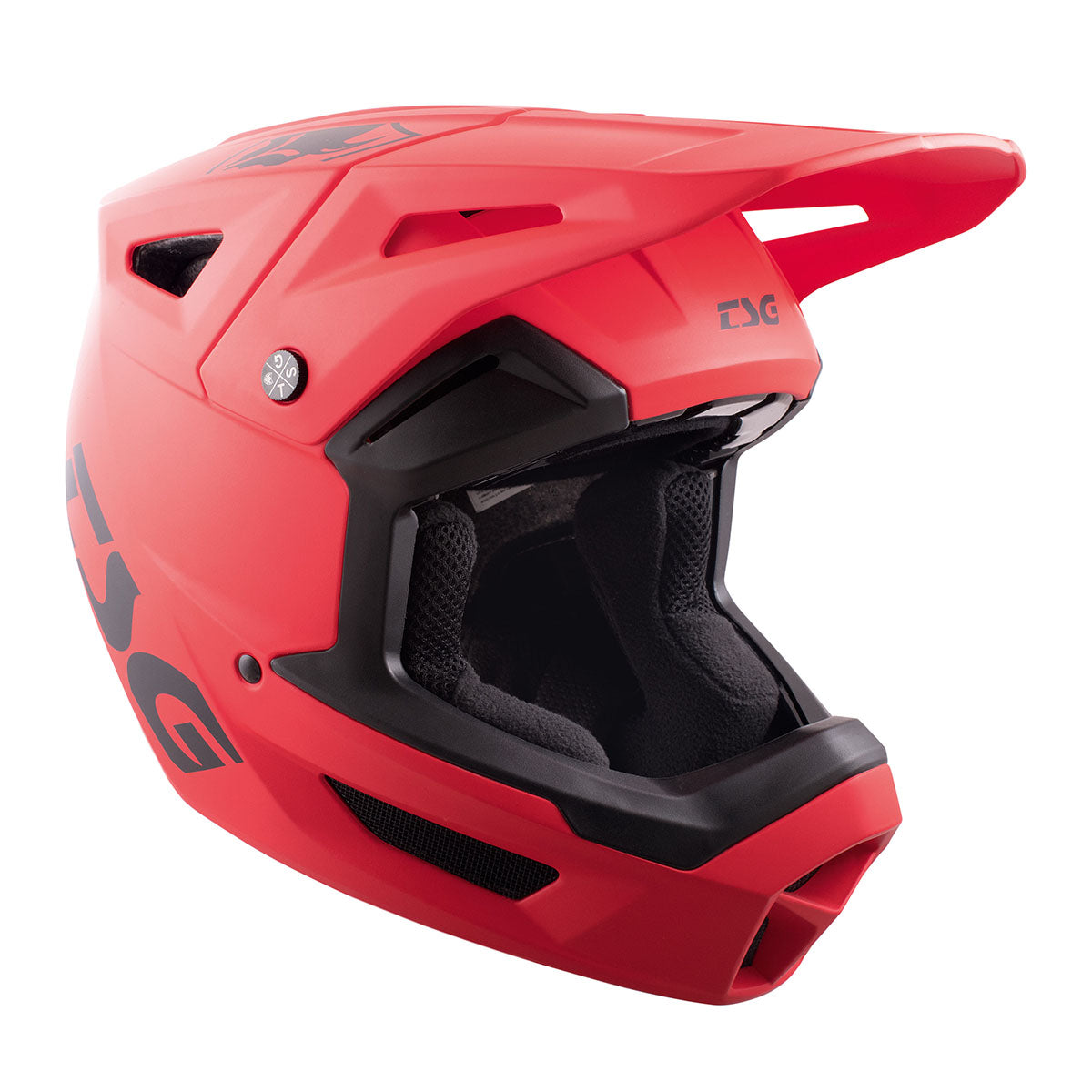

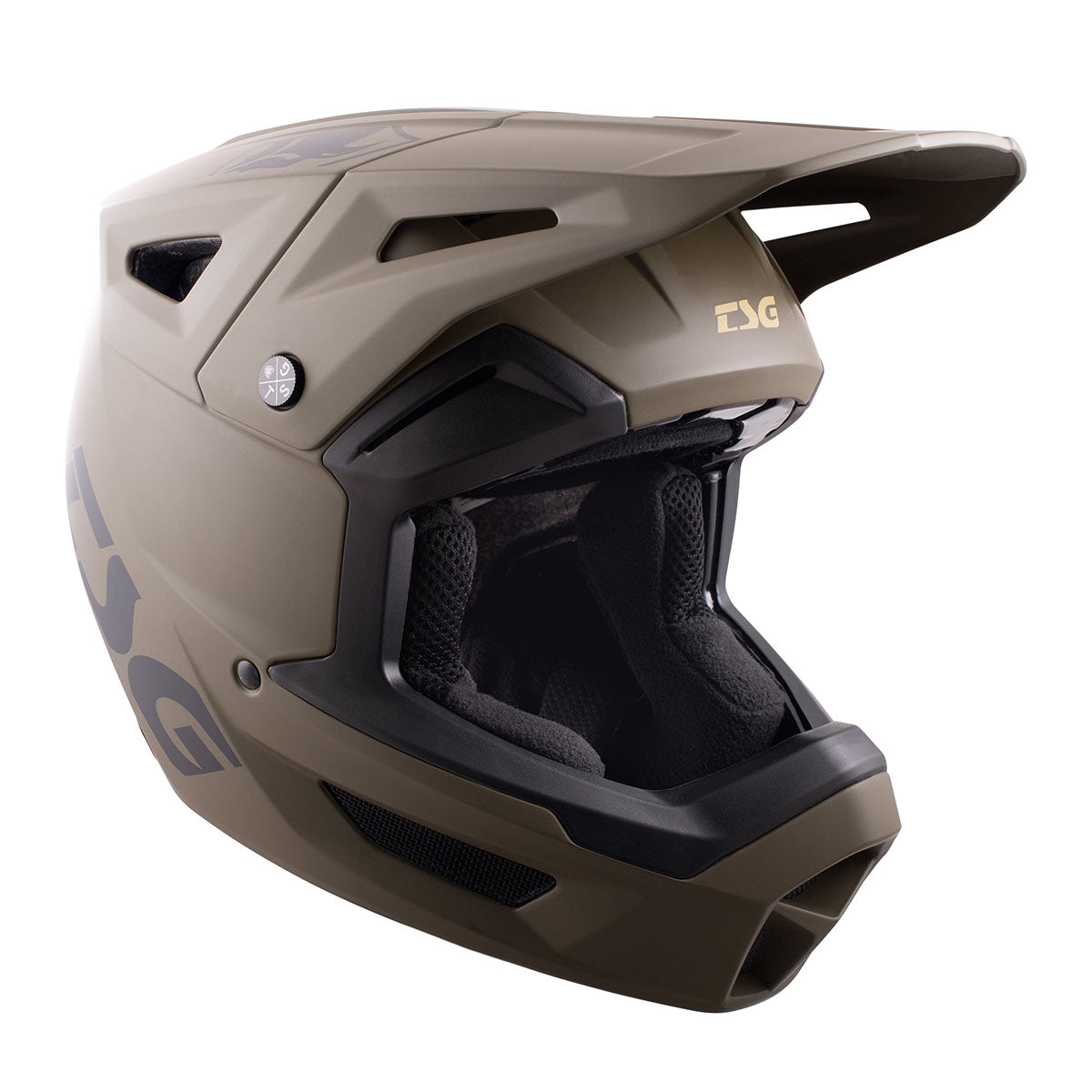

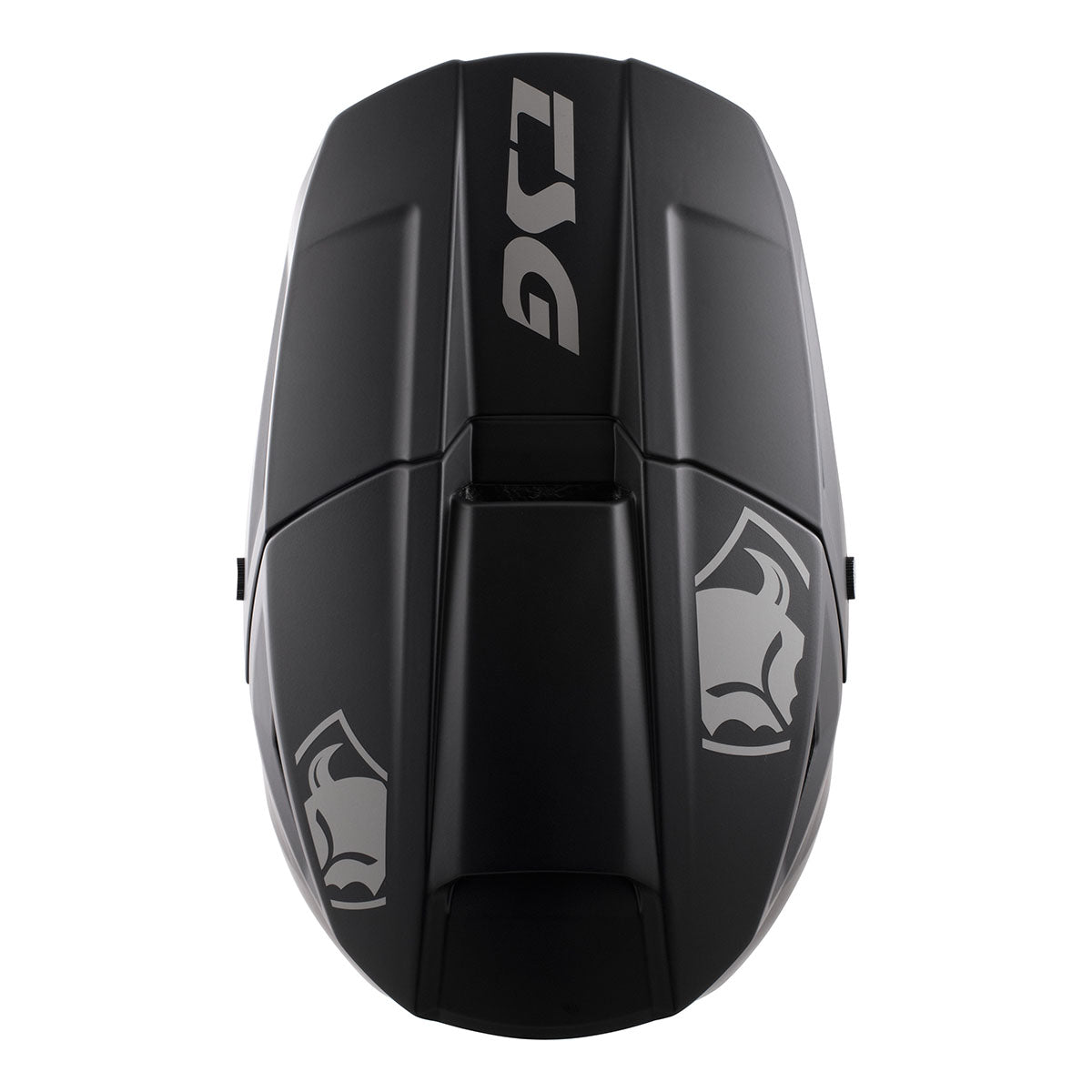

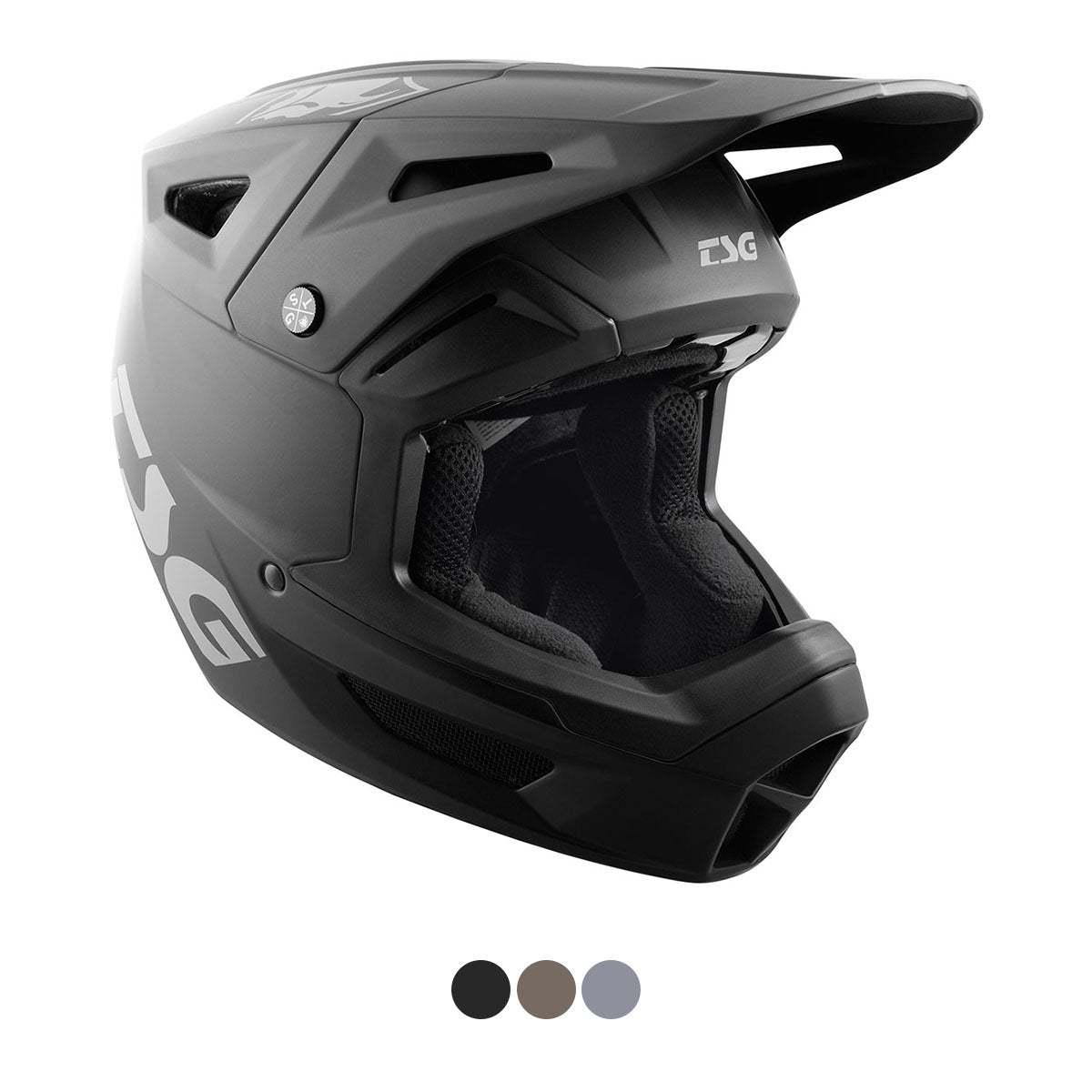

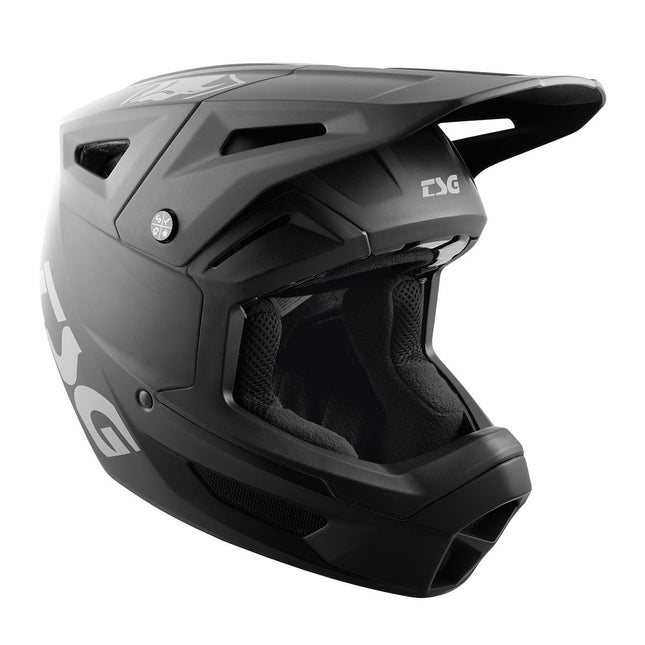

Sentinel - Full Face Downhill MTB Helmet
HIGHLIGHTS
ULTIMATE IMPACT RESISTANCE & SHOCK ABSORPTION:Sentinel offers the most reliable protection for thrill-seeking adventure riders, engaging in downhill mountain biking and jump sessions. ABS Hard-shell construction combines strength and durability for optimum protection from impact forces. High-performance full frame EPS foam padding cushions your head by dispersing all impact forces before reaching the head. Sentinel offers reinforced full-face protection from PC laminated EPS foam in chinbar.
COMFORTABLE FOR BIKERS:Sentinel helmet has twelve air vents that permit maximum airflow to keep your head cool and comfortable at low or high speeds. The ventilated design with a front vent mesh insert is particularly important for bikers and skateboarders who are out there doing their practice on warm weather days. Comfort padding protects your brain during inadvertent accidents on varying trail conditions.
LIGHTWEIGHT, SLEEK w/ SUPERIOR PERIPHERAL VISION: The Sentinel helmet has been designed to keep the weight at an optimum level of 1160gm / 2.55 lb,to relieve excess pressure on riders' neck. Sentinel comes with easily removable and washable comfort liners and cheek pads, making it easier to maintain and stay hygienic. Sentinel is designed with wide eye port and precision placed visor for peripheral vision as well as to accommodate goggles of various sizes.
CERTIFIED SAFETY STANDARDS:The Sentinel helmet is certified with the ASTM F1952 US-American downhill mountain bike helmet standard, EN 1078 European bike and skateboard helmet standard, as well as CPSC certification for bicycle helmets. TSG protective gear is designed in Switzerland and tested by an internal team of passionate riders. Available in four sizes to fit youth and adult heads. S fits 54-55 cm, M fits 56-57 cm, L 58-59 cm, and XL fits 60-61 cm sized heads.
GERMAN SWISS DESIGN PHILOSOPHY:
Designed in collaboration with top industry designer Stephane Dion, Sentinel combines optimal design features as well as protection features like peak position and collapsible features to minimize breakage during crashes. With Sentinel, TSG goes more in an environmental friendly approach as ABS is less harmful fo the environment than fiberglass design.
DESCRIPTION
The combination of super tough ABS and shock-absorbing full-frame EPS foam liner guarantees stability, comfort, and protection. The Sentinel helmet offers a sleek design profile with a comfortable, ventilated construction. At only 1160g/2.55 lb, the Sentinel helmet is extremely light for a downhill helmet. FEATURES:- ABS Hardshell Construction for impact and crash protection- Full-face EPS foam with PC laminated chinbar for full coverage- 12 Vents w/ Air Flow Channels: Provides cooling air and exhausts warm air to help reduce discomfort from sweating - Removable & Washable Comfort Liners & Cheek Pads for easy maintenance and hygiene- Precisely placed visor for unobstructed peripheral vision and ample space for goggles- Certified Safety Standards conforming to US and Europe downhill bike safetySPECIFICATIONS:Certification: NF EN 1078, ASTM F1952, CPSCWeight: 1160 gm / 2.55 lbMaterial: ABS, PC, EPS, Yaoli Fabric Liner, Yaoli Fabric Cheek PadsSIZING:Head CircumferenceS (54-55cm / 21.25-21.65in)M (56-57cm / 22.04-22.44in)L (58-59cm / 22.83-23.22 in)XL (60-61 cm / 23.62-24.01 in)
VIDEOS
OVERVIEW

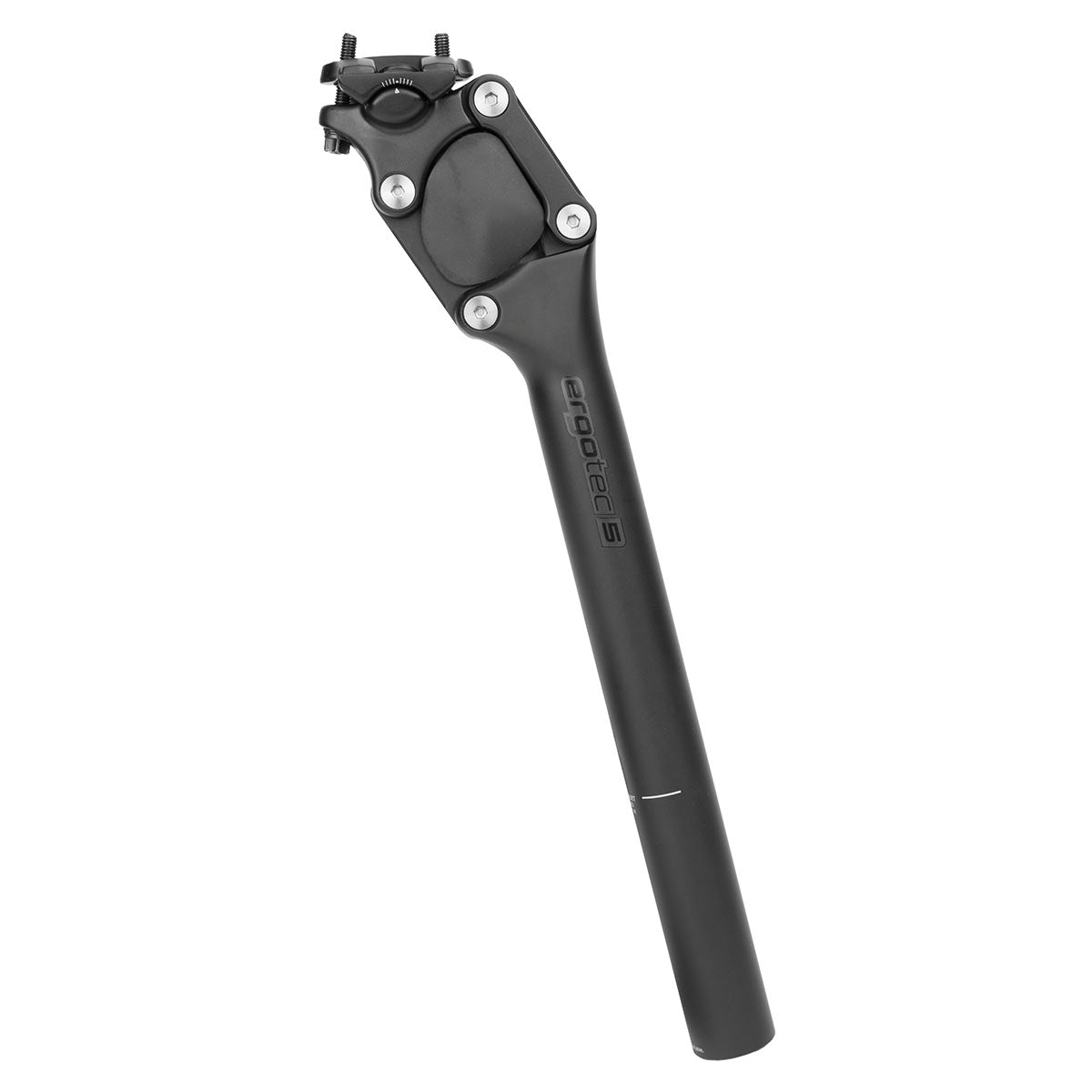

ergotec PM-705N is a post modern suspension seat post with Safety Level only from ergotec. It has excellent suspension comfort and low breakaway torque, which are the outstanding features of the PM-705N with parallelogram system.
The PM-705N suspension seatpost with a body height of 111 mm, 2-bolt clamping, 30-60 mm offset and an adjustable tension. The seatpost is equipped with a rebound spring for 70-90 kg rider weight. Optional springs for different weight classes available.This is also suitable for 7 & 8 mm Rail-D.
Easy Adjustment of Components. You can adjust the tension via the screw-on end cap in order to regulate the progressive steel spring characteristics curve to suit your preferences. Also, you can easily adjust the damping to the rider’s weight by replacing the spring.
High Suspension Comfort and Low Breakaway Torque. Based on the combination of perfectly adjusted spring damping and reduced piston friction thanks to low-friction bushings, the telescopic post offers high suspension comfort and a low breakaway torque. Thus, the suspension seatpost quickly responds to the adjusted pressure while reliably guiding the tube for best saddle support.
Proven High-Quality though Extreme Strength Tests. In ergotec Test Center, all ergotec handlebars, stems and seat posts are subjected to extreme long-term tests, both individually and in combination. In addition to testing in line with European standards, ergotec also tests according to the significantly higher ergotec SAFETY LEVEL requirements.
Safety Level to Define Component Capacity. ergotec components of the Level 6+ group have been specially developed for use on mountain bikes and e-mountain bikes. Handlebars, stems and seat posts meet the highest ergotec safety standards and, thanks to their extreme robustness, can be used for a total weight (vehicle + rider + luggage) of up to 160 kg
Durability and Longevity. Carefree and safe on the road with the ergotec quality promise! Opting for an ergotec product always means opting for premium quality. Quality you can rely on for many years – it‘s a guarantee! Products under Safety Level 5 like ergotec seat post PM-705N is expected to have a lifetime of 5 years or 30,000 km.
Specifications
Material: AL7075-T6
Diameter: 31.6 mm
Offset: 30-60 mm
Finish: Black Sandblasted
Travel: 27 mm
Weight: 630 g
Safety Level: 5
Length: 350 mm
Total Height: 111 mm
Spring System: Spring + Rebound
Driver Weight: 70-90 kg
ASSEMBLY
OVERVIEW
ergotec PM-705N is a post modern suspension seat post with Safety Level only from ergotec. It has excellent suspension comfort and low breakaway torque, which are the outstanding features of the PM-705N with parallelogram system.
The PM-705N suspension seatpost with a body height of 111 mm, 2-bolt clamping, 30-60 mm offset and an adjustable tension. The seatpost is equipped with a rebound spring for 70-90 kg rider weight. Optional springs for different weight classes available.This is also suitable for 7 & 8 mm Rail-D.
Easy Adjustment of Components. You can adjust the tension via the screw-on end cap in order to regulate the progressive steel spring characteristics curve to suit your preferences. Also, you can easily adjust the damping to the rider’s weight by replacing the spring.
High Suspension Comfort and Low Breakaway Torque. Based on the combination of perfectly adjusted spring damping and reduced piston friction thanks to low-friction bushings, the telescopic post offers high suspension comfort and a low breakaway torque. Thus, the suspension seatpost quickly responds to the adjusted pressure while reliably guiding the tube for best saddle support.
Proven High-Quality though Extreme Strength Tests. In ergotec Test Center, all ergotec handlebars, stems and seat posts are subjected to extreme long-term tests, both individually and in combination. In addition to testing in line with European standards, ergotec also tests according to the significantly higher ergotec SAFETY LEVEL requirements.
Safety Level to Define Component Capacity. ergotec components of the Level 6+ group have been specially developed for use on mountain bikes and e-mountain bikes. Handlebars, stems and seat posts meet the highest ergotec safety standards and, thanks to their extreme robustness, can be used for a total weight (vehicle + rider + luggage) of up to 160 kg
Durability and Longevity. Carefree and safe on the road with the ergotec quality promise! Opting for an ergotec product always means opting for premium quality. Quality you can rely on for many years – it‘s a guarantee! Products under Safety Level 5 like ergotec seat post PM-705N is expected to have a lifetime of 5 years or 30,000 km.
Specifications
Material: AL7075-T6
Diameter: 30.9 mm
Offset: 30-60 mm
Finish: Black Sandblasted
Travel: 27 mm
Weight: 610 g
Safety Level: 5
Length: 350 mm
Total Height: 111 mm
Spring System: Spring + Rebound
Driver Weight: 70-90 kg
ASSEMBLY
FEATURES
MODERN DESIGN WITH EXCELLENT SUSPENSION COMFORT. ergotec PM-705N is a post modern suspension seat post with Safety Level only from ergotec. It has excellent suspension comfort and low breakaway torque, which are the outstanding features of the PM-705N with parallelogram system.
EQUIPPED WITH REBOUND SPRING AND EASY TO ADJUST COMPONENTS. The PM-705N suspension seatpost with a body height of 111 mm, 2-bolt clamping, 30-60 mm offset and an adjustable tension. The seatpost is equipped with a rebound spring for 70-90 kg rider weight. Optional springs for different weight classes available. This is also suitable for 7 & 8 mm Rail-D. You can adjust the tension via the screw-on end cap in order to regulate the progressive steel spring characteristics curve to suit your preferences. Also, you can easily adjust the damping to the rider’s weight by replacing the spring.
HIGH SUSPENSION COMFORT AND LOW BREAKAWAY TORQUE. Based on the combination of perfectly adjusted spring damping and reduced piston friction thanks to low-friction bushings, the telescopic post offers high suspension comfort and a low breakaway torque. Thus, the suspension seatpost quickly responds to the adjusted pressure while reliably guiding the tube for best saddle support.
PROVEN HIGH QUALITY THROUGH EXTEREME STRENGTH TESTS. Proven High-Quality though Extreme Strength Tests. In ergotec Test Center, all ergotec handlebars, stems and seat posts are subjected to extreme long-term tests, both individually and in combination. In addition to testing in line with European standards, ergotec also tests according to the significantly higher ergotec SAFETY LEVEL requirements.
LONGEVITY AT SAFETY LEVEL 5. Carefree and safe on the road with the ergotec quality promise! Opting for an ergotec product always means opting for premium quality. Quality you can rely on for many years – it‘s a guarantee! Products under Safety Level 5 like ergotec seat post PM-705N is expected to have a lifetime of 5 years or 30,000 km.
Specifications
Material: AL7075-T6
Diameter: 27.2 mm
Offset: 30-60 mm
Finish: Black Sandblasted
Travel: 27 mm
Weight: 590 g
Safety Level: 5
Length: 350 mm
Total Height: 111 mm
Spring System: Spring + Rebound
Driver Weight: 70-90 kg
OVERVIEW

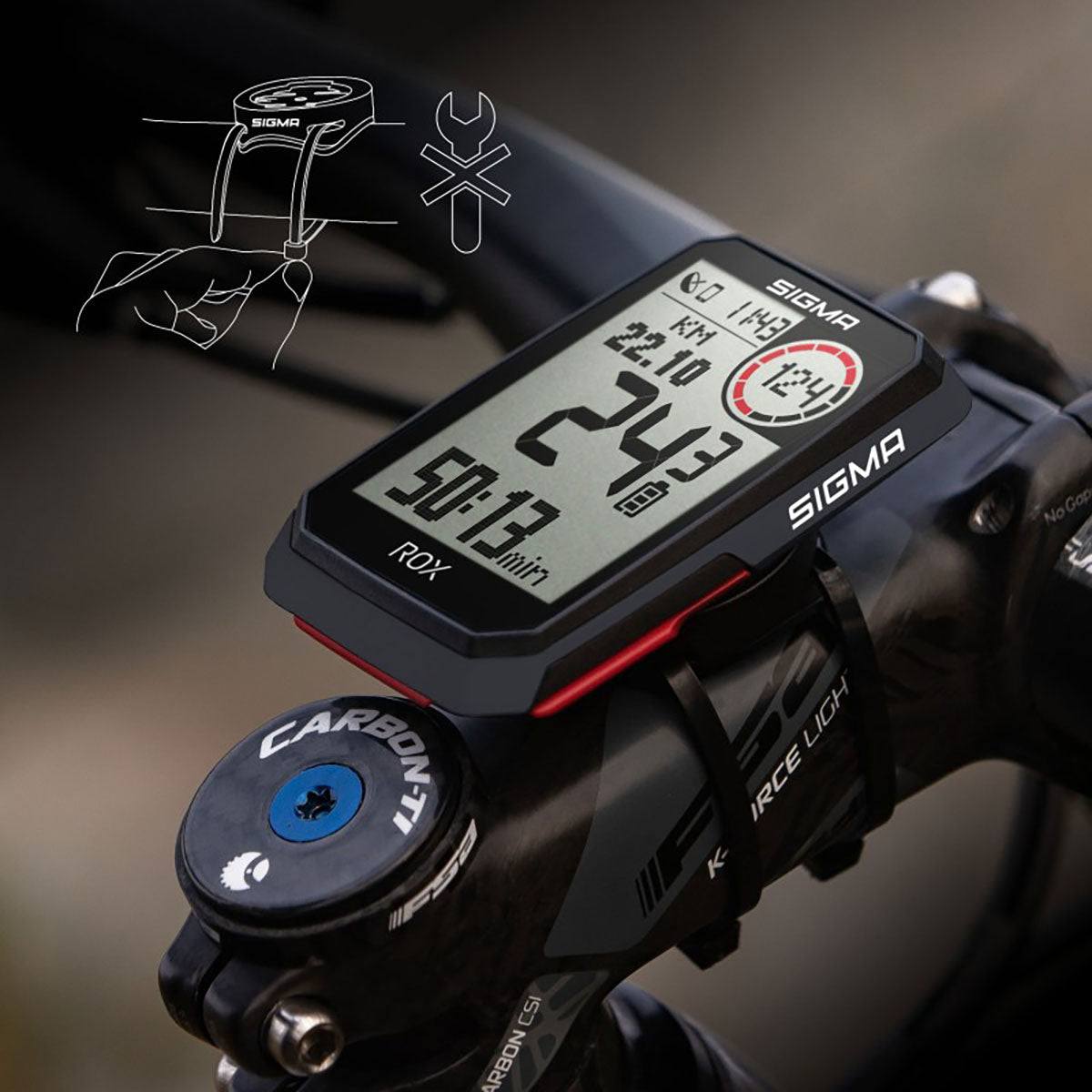

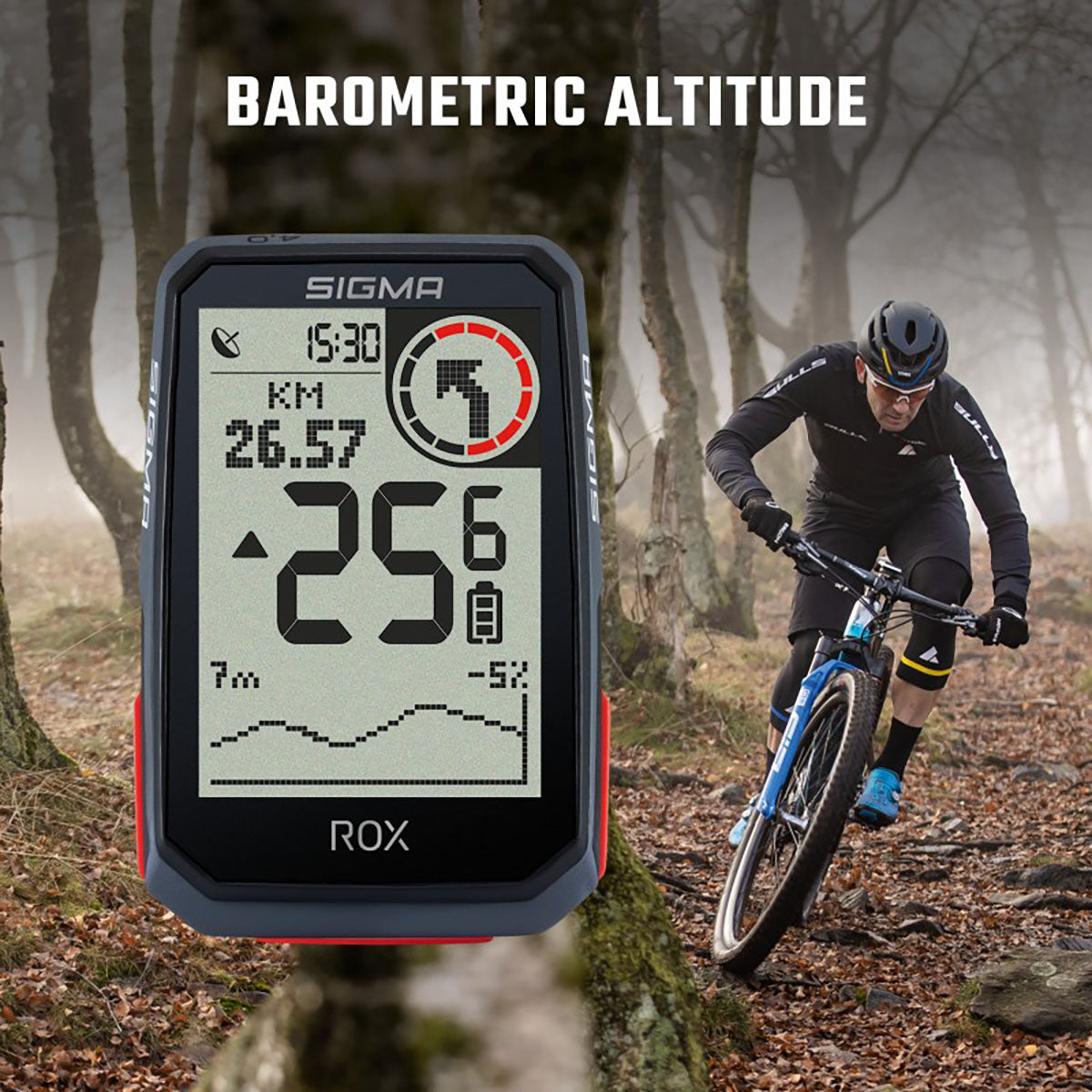

ROX 4.0 GPS Bike Computer is a GPS computer for cyclists who are looking for altitude measurements in addition to essential GPS computer functions.
ROX 4.0 Black Sensor Set Contains:Bike computer, GPS mount, USB-C cable, quick start instructions, Overclamp butler GPS, Duo Magnetless Speed Sensor, Duo Magnetless Cadence Sensor, Comfortex + Chest Strap, RI Duo HR Transmitter.
LARGE, EASY TO READ DISPLAY: 2.4" diagonal high contract display is easy to read even between rides. Display shows current speed and time all the time. Rest of the values can be customized up to six views, each with three values.
ESSENTIAL FUNCTIONS: The ROX 4.0 bike computer has functions such as altitude profile, speed, distance, and training time, navigation information, and connection to an e-bike.
INTEGRATED AIR PRESSURE SENSOR: ROX 4.0 uses barometric readings to determine inclines and declines and provide you with reliable information about altitude, allowing a precise recording of your track.
MORE MEASUREMENTS: ROX 4.0 can be easily connected to additional sensors using ANT+ and BLE, for measuring speed, heart rate, and cadence.
KOMOOT: You can integrate ROX 4.0 with your smartphone, so that you can leave it in your pocket. You will receive turn by turn navigation from Komoot app on your ROX 4.0.
RED CIRCLE: ROX 4.0 display has an interesting red circle on top right corner for displaying training data.
GET STARTED RIGHT AWAY: ROX 4.0 can be installed on your bike handlebar in easy to follow steps, without needing any mount cables or sensors.
INTUITIVE OPERATION: ROX 4.0 can be operated easily with just 3 buttons.
CONNECTIVITY: ROX 4.0 uses GPS and GLONASS for position tracking. SIGMA RIDE app can be used for personalizing display views, and for collecting and managing training data.
EASY POSITIONING: ROX 4.0 can be positioned for convenient overview of values using the overclamp butler (not included), even for handlebars with short stem. Fits on handlebars of 31.8mm and 35mm diameter.
E-BIKE READY: The ROX 4.0 GPS can establish a connection to the compatible e-bike system and show you the current assist mode, battery status, and light and other data on the display. LIVE DATA ANALYSIS: Ride data can be recorded and immediately analyzed with SIGMA RIDE app's LIVE view. SMART NOTIFICATIONS: ROX 4.0 can receive notifications of messages and calls on your smart phone.
FEATURES
General:
Dimension (W x L x H)
44.9 x 73.6 x 18.4 mm
Mount compatibility
GPS Mount, Overclamp Butler
Weight
51gm
Water resistance
IPX7
Battery
550 mAh (Li Ion), 3.7V
Display size
2.4"
Resolution (pixel)
Main display: 59 x 23
Color display / Number of colors
2
Display Technology
Transflective
Typical battery life
25 hours
Connectivity
ANT+, BLE
Navigation
Turning guidanceBack to starting point arrow
Other
BacklightSmart notificationsE-Bike Ready
Sensors
GPSGLONASSBarometric Height measurementAmbient Light sensor
Sensor Technology
CadenceHeart RateSpeed
Training:
Preinstalled sport profiles
1
Individually adjustable sport profiles
1 (Further sport profiles can be saved in the app)
Individually adjustable training pages
up to 6
Individually adjustable number of training values per page
3
Templates for training views
1
Auto pause
Data Analysis
SIGMA DATA CENTERSIGMA RIDE APPMemory up to 100h trainingFile Format: .fit
FUNCTIONS
Basic Functions SpeedAverage speedMaximum speedDistanceTraining time (net)CaloriesClock (12/24 hrs)
E-Bike functionsRange E-bike battery Human Power vs. Motor Power Support level Light
Navigation functionsHeading Turning guidance
Status Functions Current temperatureDevice battery statusCompass
Altitude FunctionsCurrent altitude Gradient (in %) Altitude graph Altitude uphill
Cadence functionsCadence Average cadence Maximum cadence
Heartrate functionsCurrent heart rate Average heart rate Maximum heart rate Maximum heart rate (in % ) Intensity zones
VIDEOS
ROX 4.0 - BASIC OPERATIONS ROX 4.0 - ALTITUDE CALIBRATION ROX 4.0 - KOMOOT CONNECTION ROX 4.0 - SENSOR CONNECTION ROX 4.0 - PAIRING TO A SMARTPHONE ROX 4.0 - E-BIKE CONNECTION ROX 4.0 - GPS MOUNTROX 4.0 - OVERCLAMP BUTLER INSTALLATION SENSORS - DUO MAGNETLESS CADENCE INSTALLATION SENSORS -DUO MAGNETLESS SPEED
PARTS
Following parts can be purchased separately.
Rox 4.0 Computer only
Computer with HR set
Duo Magnetless Speed Transmitter
Duo Magnetless Cadence Transmitter
Comfortex+ Chest Strap
R1 Duo Comfortex+ transmitter incl. chest strap
GPS Mount For Rox 7/11,2/4/11.1 Evo
Overclamp Butler for Rox 2.0 / 4.0 / 11.1 Evo
