NOTE:For inquiries, please call us at 805-850-3200. DESCRIPTION Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 500mm... Read more
SKU: MOND-B-Foxy-CarbR-Red22-L
Barcode: 8435392851305
$6,999.00 Excl. VAT
Available on working days between 9:00 am to 6:00 pm
Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Colors: Cherry Red/Carbon

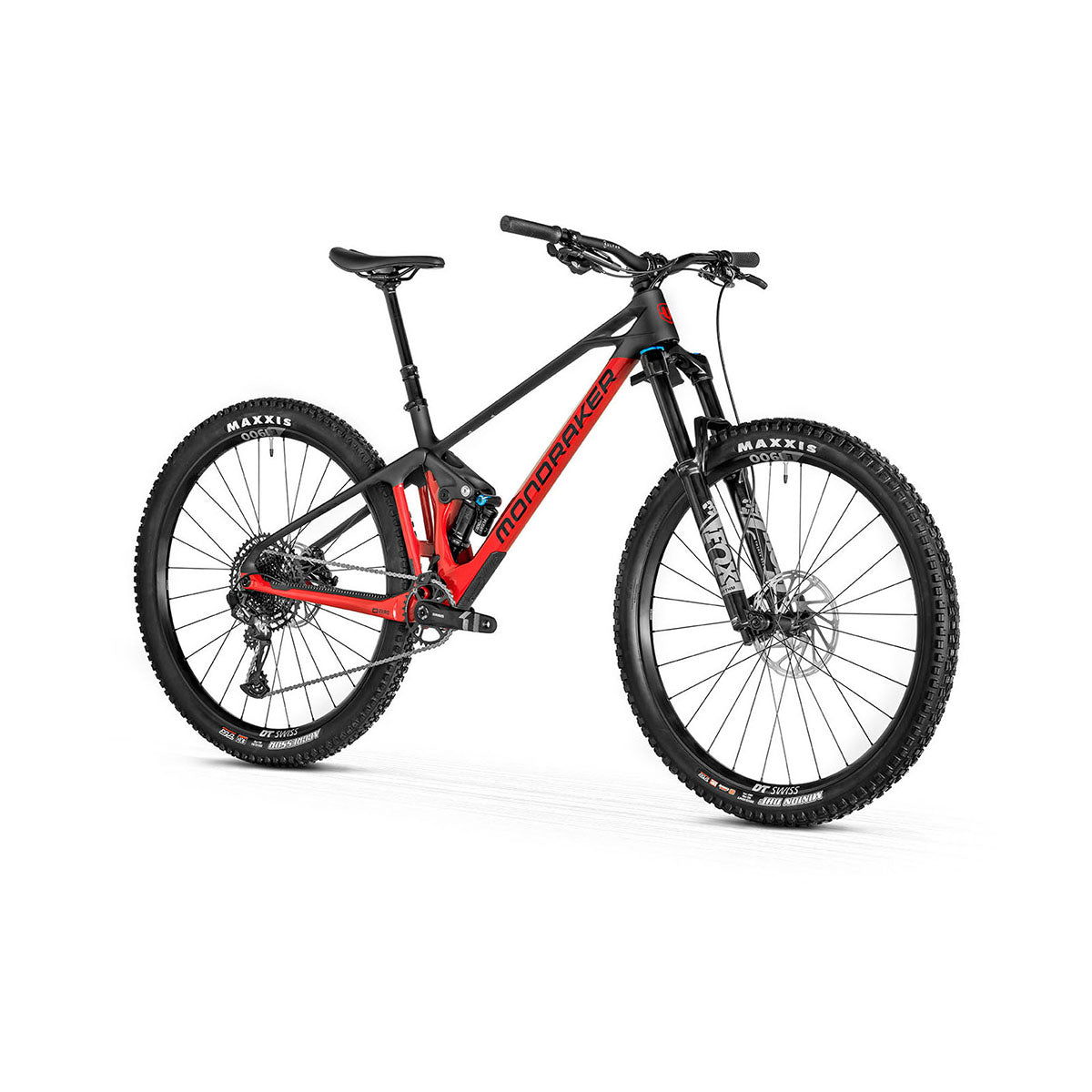

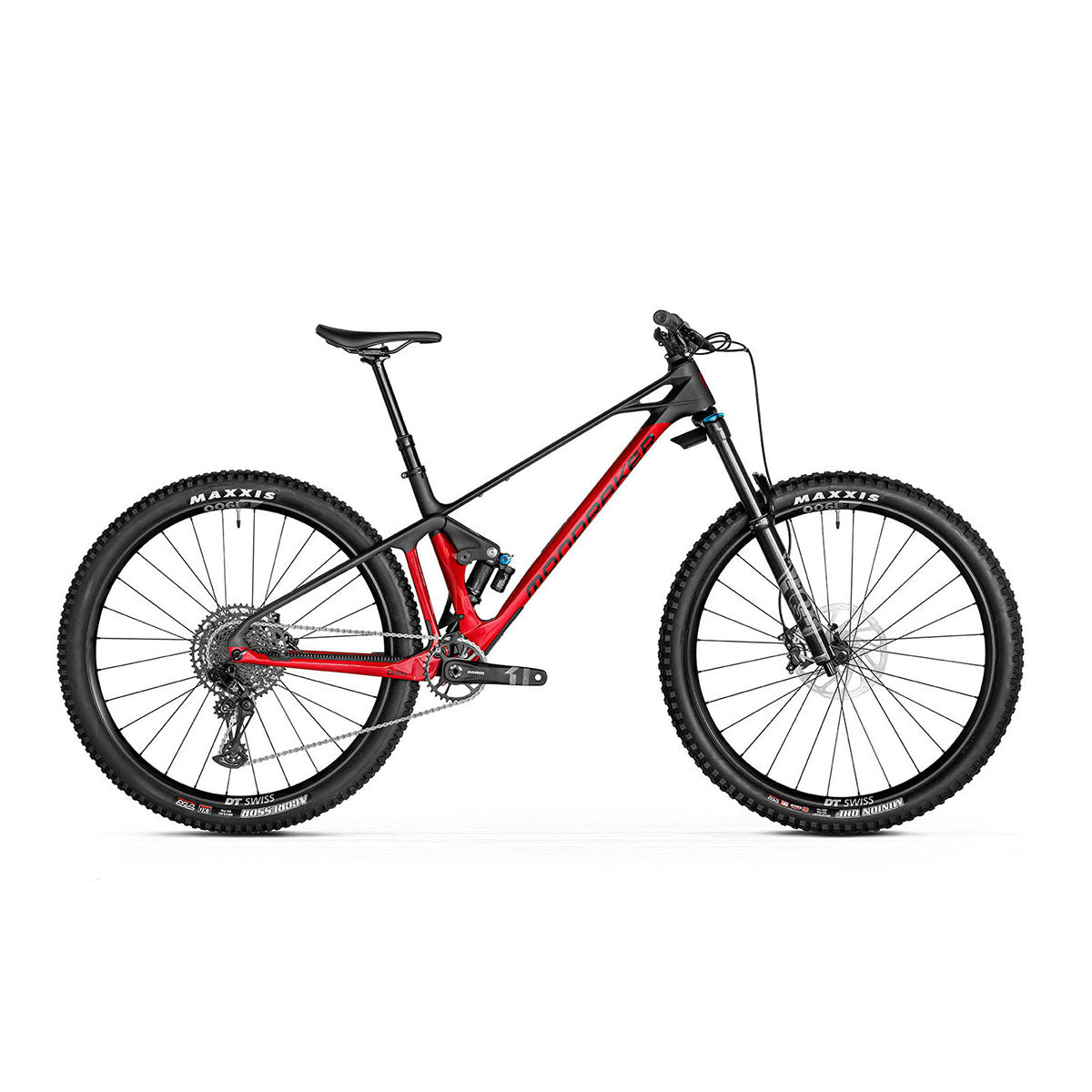

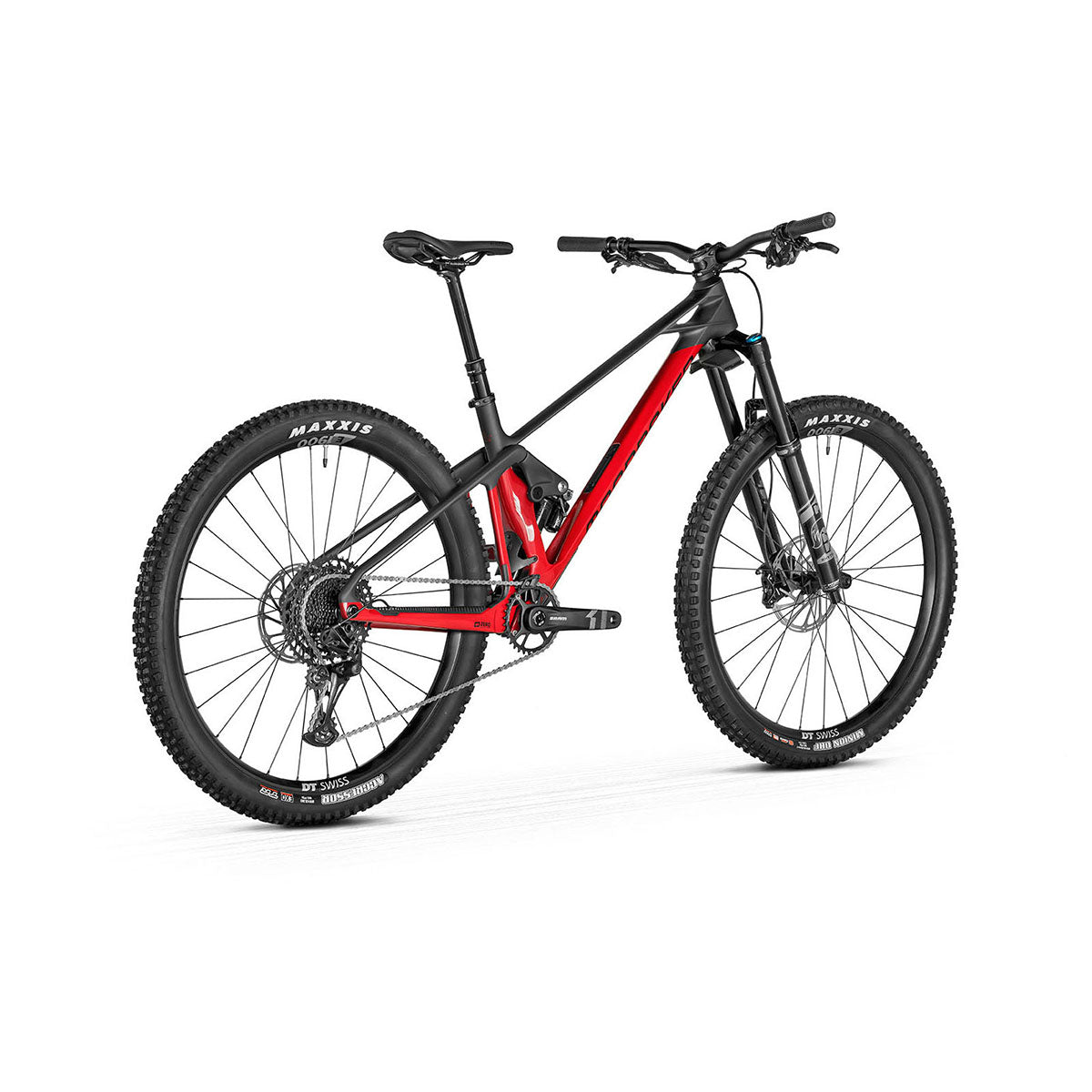

Experience the Foxy Carbon R difference in enduro, trail, uphill, and downhill! This top-end mountain bike boasts enhanced performance and ultra-modern geometry.
Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
Heavy enduro riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.
The proprietary stealth carbon airframe helps with resistance and mobility for better speed and performance. Stealth Air design delivers aero-style profile, maximum stiffness, lightest weight, and superior compliance ratio, extremely important for mtb riders. With the increased stiffness and improved pedaling efficiency, Foxy Carbon R becomes the bike of choice for technical climbs. Stealth air construction optimizes benefits such as strength, structural rigidity, trail buzz absorption, and lightness, in addition to consistency, reliability, and visual appeal.
HHG Internal Cable Routing helps with a minimalistic, clean design. Foxy Carbon R is loaded with features such as shock mudguards, boost rear axle, sealed bearings, custom frame protectors, BSA bottom bracket, and dedicated 1X drivetrain for better traction and momentum.
Foxy Carbon R 29 sports high-performance rear derailleurs and wide 29” tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |
Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry,aluminium CSC upper link with carbon bridge, Boost 12x148mm rear axle, tapered head tube, 73mmBSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealedbearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry Kit |
|
SIZES |
S: 380mm / M: 420mm / L: 450mm / XL: 500mm |
|
REAR SHOCK |
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
|
SHOCK SETTINGS |
Light compression, extralight rebound, air volume spacer 0.6 |
|
FORK |
Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload |
|
HEADSET |
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
|
STEM |
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
|
HANDLEBAR |
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
|
GRIPS |
Onoff Diamond, 1lock-on, 135mm |
|
SEATPOST |
Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm |
|
SADDLE |
SDG BEL-AIR 3.0, LPU foam, steel rails |
|
FRONT BRAKE |
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
|
REAR BRAKE |
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
|
BRAKE LEVER |
Sram G2 R, tool-free reach adjust |
|
RIMS |
DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes |
|
SPOKES |
DT Champion, straightpull |
|
FRONT HUB |
DT 370, Boost 15x110mm, IS 6 bolts |
|
REAR HUB |
DT 370, Boost 12x148mm, 18T Ratched LN system, IS 6 bolts |
|
FRONT TIRE |
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
|
REAR TIRE |
Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
|
CRANKSET |
Truvativ Descendant 6K Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm |
|
RINGS |
32T, steel, X-Sync 2 |
|
BOTTOM BRACKET |
Sram DUB BSA, sealed bearings, 73mm |
|
PEDALS |
- |
|
CHAIN |
Sram NX Eagle, 12s, Powerlock |
|
FRONT DERAILLEUR |
- |
|
REAR DERAILLEUR |
Sram Trigger NX Eagle, 12s, X-Actuation 1:1 |
|
SHIFT LEVERS |
Sram Trigger NX Eagle, 12s, X-Actuation 1:1 |
|
CASSETTE |
Sram XG-1230, 11-50T, 12s |
|
MOTOR |
- |
|
BATTERY |
- |
|
DISPLAY |
- |
|
DERAILLEUR HANGER |
Sram UDH |
|
OTHERS |
*Optional Geometry kit: steering cups: +/- 1° |
|
WEIGHT |
14.1 Kg |
MEASUREMENTS / GEOMETRY
|
Size |
S |
M |
L |
XL |
|
|
A |
Seat Tube Length |
375 mm |
415 mm |
445 mm |
500 mm |
|
B |
Top Tube Length |
600 mm |
620 mm |
650 mm |
670 mm |
|
C |
Bottom Bracket Drop |
-30 mm |
-30 mm |
-30 mm |
-30 mm |
|
D |
Bottom Bracket Height |
345 mm |
345 mm |
345 mm |
345 mm |
|
E |
Chainstay Length |
445 mm |
445 mm |
445 mm |
445 mm |
|
F |
Seat Tube Angle, Actual |
70° |
70° |
70° |
70° |
|
G |
Seat Tube Angle, Effective |
75.5° |
75.5° |
75.5° |
75.5° |
|
H |
Head Tube Angle |
64.5° |
64.5° |
64.5° |
64.5° |
|
I |
Fork Offset |
44 mm |
44 mm |
44 mm |
44 mm |
|
J |
Wheelbase |
1210 mm |
1233 mm |
1260 mm |
1286 mm |
|
K |
Head Tube Length |
90 mm |
100 mm |
115 mm |
130 mm |
|
L |
Reach |
445 mm |
465 mm |
485 mm |
505 mm |
|
M |
Stack |
617 mm |
627 mm |
641 mm |
656 mm |
Bike Size Guide (Click on image to zoom in)
Foxy Carbon R 2022 Setup (Click to open in new window). Or download using the viewer below
