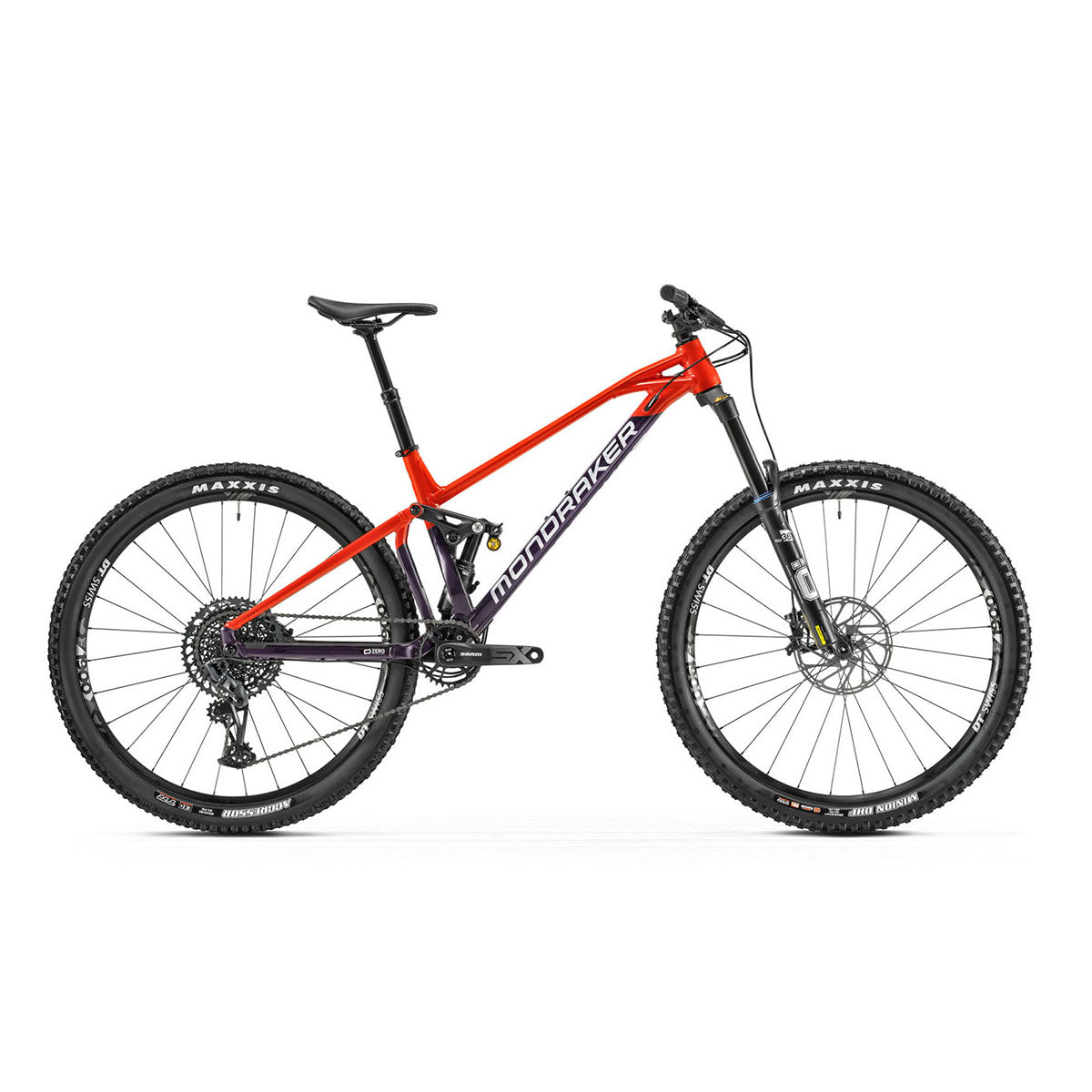

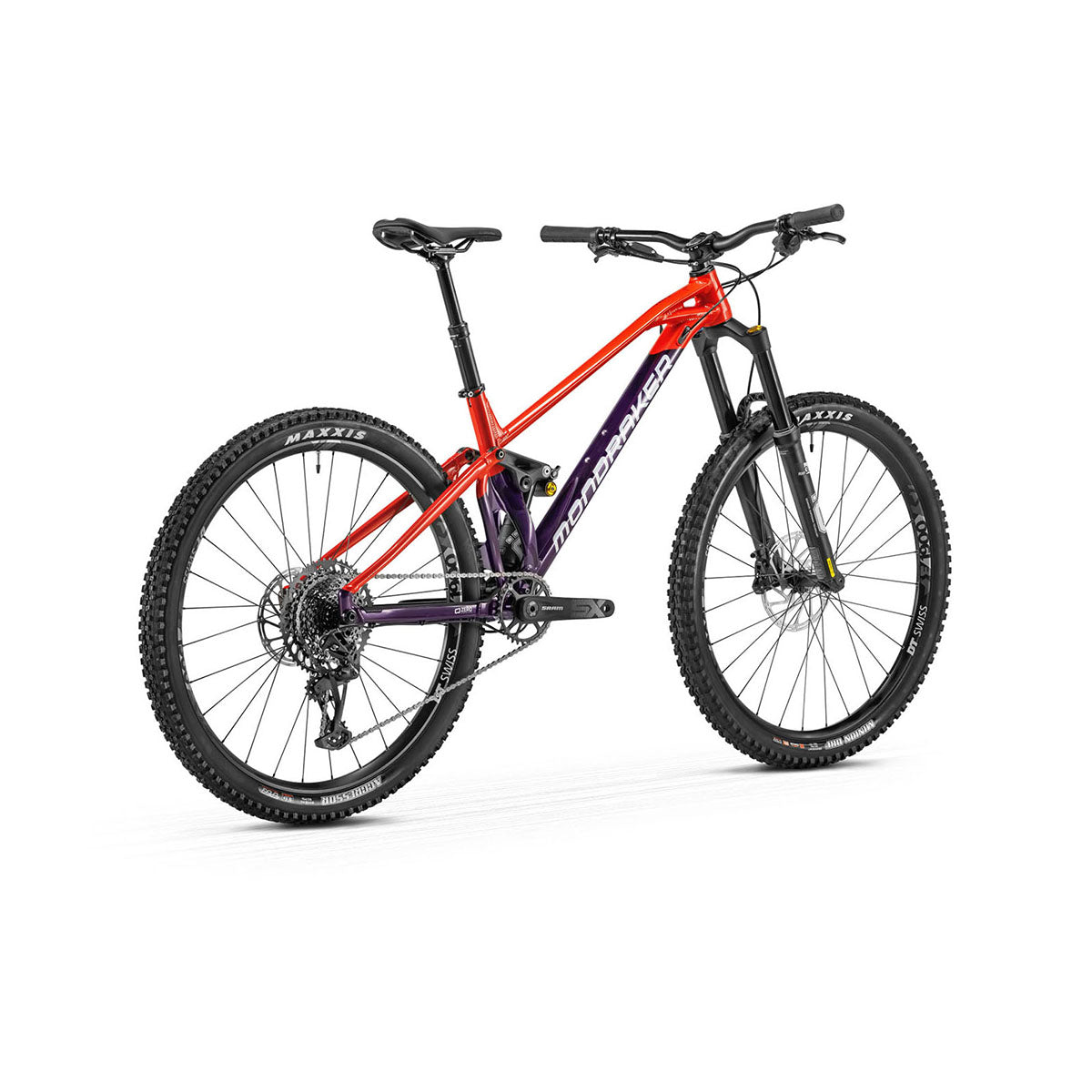

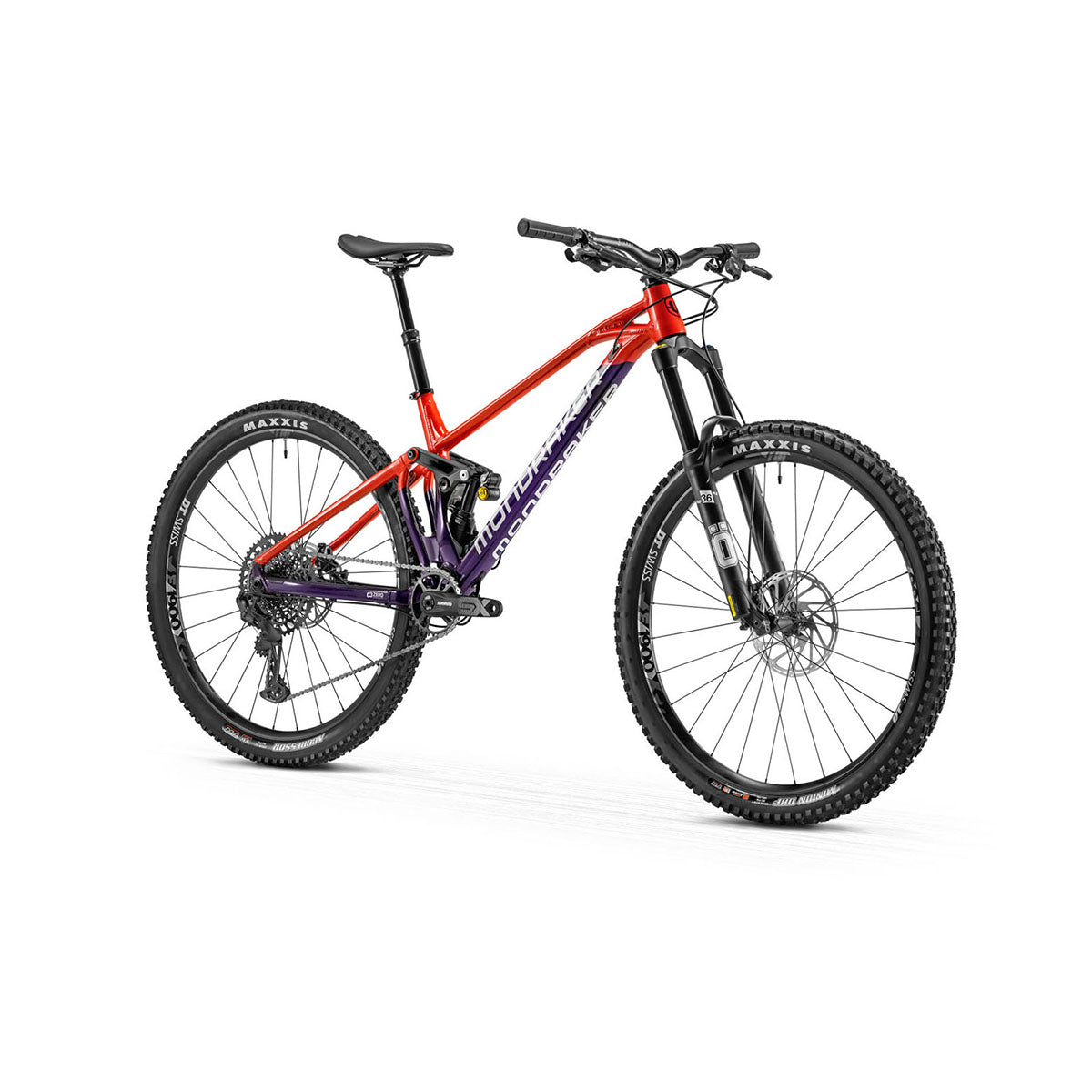

Experience the Foxy R difference in enduro, trail, uphill, and downhill! This top-end mountain bike boasts enhanced performance and ultra-modern geometry.
Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
Heavy enduro riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.
The durable stealth alloy frame helps with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.
Foxy R is loaded with more protection features such as sealed Enduro bearings, and performance features like dedicated 1X drivetrain, telescopic Seatpost internal routing, boost rear axle, and BSA bottom bracket for better traction and momentum. One-piece monoblock upper link offers better lateral and torsional stiffness to reduce lateral stress on the shock action.
Foxy R sports high-performance rear derailleurs and wide 29” tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.
Size: S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Colors: Deep Purple / Flame Red
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |
6061 hydroformed Stealth Alloy Evo, one-piece Monoblock upper link, molded chainstay and down tube protection |
|
SIZES |
S: 380mm / M: 420mm / L: 470mm / XL: 510mm |
|
REAR SHOCK |
Öhlins TTX Air 205x62.5mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings |
|
SHOCK SETTINGS |
C20 compression, R35 rebound |
|
FORK |
Öhlins RXF 36 M.2, TTX18 Twin Tube cartridge damper, ramp chamber, high-speed compression lever with climb mode, low-speed compression adjust, rebound adjust, 44mm offset, 160mm |
|
HEADSET |
ONOFF Saturn, sealed angular contact bearings |
|
STEM |
ONOFF Sulfur FG, 6061 forged alloy, 30mm length, 31.8mm bar clamp |
|
HANDLEBAR |
ONOFF Sulfur 1.0, double-butted 6061 alloy, 800mm width, 20mm rise, 9° backsweep, 5° upsweep, 31.8mm clamp diameter |
|
GRIPS |
ONOFF Diamond, 135mm length, single lock-on |
|
SEATPOST |
ONOFF Pija dropper, 31.6mm, Single bolt, 31.6mm, Single bolt Drop: |
|
SADDLE |
SDG Bel-Air 3.0, LPU foam, steel rails |
|
FRONT BRAKE |
SRAM G2 R, 4-piston, steel-backed organic pads, SRAM CenterLine 6-bolt one-piece rotors 200mm, SRAM G2 R, tool-free reach adjust |
|
REAR BRAKE |
SRAM G2 R, 4-piston, steel-backed organic pads, SRAM CenterLine 6-bolt one-piece rotor 180mm, SRAM G2 R, tool-free reach adjust |
|
BRAKE LEVER |
Sram G2 RS, SwingLink, tool-free reach adjust |
|
RIMS |
DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes |
|
SPOKES |
DT Swiss Champion, straightpull |
|
FRONT HUB |
DT Swiss 370, 110x15mm Boost |
|
REAR HUB |
148x12mm Boost with 18 tooth Ratchet LN freehub and HG driver |
|
FRONT TIRE |
Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.5" WT |
|
REAR TIRE |
Maxxis Aggressor, Dual Compound, EXO, TR, 60 TPI, folding bead, 29" x 2.3" |
|
CRANKSET |
SRAM SX Eagle DUB, Length: 170mm (SM/MD), 175mm (LG/XL) |
|
RINGS |
32T, CNC-machined alloy |
|
BOTTOM BRACKET |
355mm (21mm drop), SRAM DUB, sealed bearings, 73mm English/BSA threaded |
|
PEDALS |
- |
|
CHAIN |
435mm, None, SRAM SX Eagle, 32 tooth, steel, X-SYNC 2, direct mount, SRAM SX Eagle, 12-speed, with PowerLock |
|
FRONT DERAILLEUR |
- |
|
REAR DERAILLEUR |
SRAM NX Eagle, 12-speed, Type 3 roller bearing clutch, cage lock, X-ACTUATION |
|
SHIFT LEVERS |
SRAM SX Eagle, 12-speed, X-ACTUATION |
|
CASSETTE |
SRAM PG-1230, 11-50T |
|
MOTOR |
- |
|
BATTERY |
- |
|
DISPLAY |
- |
|
DERAILLEUR HANGER |
Mondraker M068 |
|
OTHERS |
- |
|
WEIGHT |
- |
MEASUREMENTS / GEOMETRY
(Click on image to expand)
|
Size |
S |
M |
L |
XL |
|
|
A |
Seat Tube Length |
380 mm |
420 mm |
470 mm |
510 mm |
|
B |
Top Tube Length |
606 mm |
629 mm |
654 mm |
676 mm |
|
C |
Bottom Bracket Drop |
-21 mm |
-21 mm |
-21 mm |
-21 mm |
|
D |
Bottom Bracket Height |
355 mm |
355 mm |
355 mm |
355 mm |
|
E |
Chainstay Length |
435 mm |
435 mm |
435 mm |
435 mm |
|
F |
Seat Tube Angle, Actual |
71° |
71° |
71° |
71° |
|
G |
Seat Tube Angle, Effective |
76° |
76° |
76° |
76° |
|
H |
Head Tube Angle |
66° |
66° |
66° |
66° |
|
I |
Fork Offset |
44 mm |
44 mm |
44 mm |
44 mm |
|
J |
Wheelbase |
1193 mm |
1222 mm |
1248 mm |
1274 mm |
|
K |
Head Tube Length |
90 mm |
100 mm |
115 mm |
130 mm |
|
L |
Reach |
450 mm |
475 mm |
495 mm |
515 mm |
|
M |
Stack |
606 mm |
615 mm |
630 mm |
643 mm |
